KEL-BES-S 32

Art.nr. | 51538 |
EAN | 4251269318702 |
Aantal | 10 |
Montage hoogte | 10 mm |
Externe diameter | 46 mm |
Inbouwmaat metriek | M32 |
Schroefdraad | M32 × 1,5 |
Lengte schroefdraad | 20 mm |
Voor min. wanddikte | 1 mm |
Voor max. wanddikte | 2,5 mm |

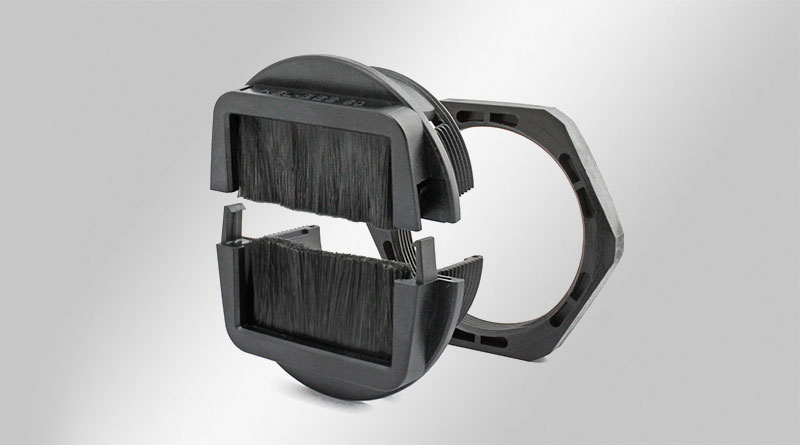

For round metric cut-outs M32/M50 icotek offers the split cable gland with brush strips KEL-BES-S round. It can be either directly snapped into the cut-out or screwed with a locknut, which is included in the shipment.

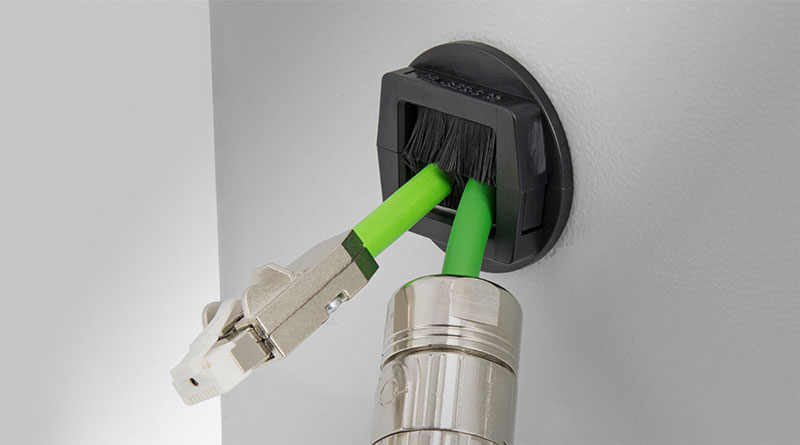

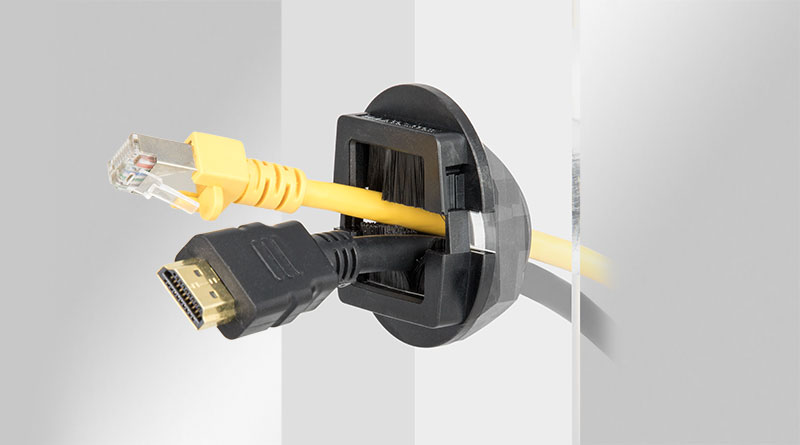

Split cable glands with brush strips KEL-BES-S are suited for routing cables into server racks, control panels and electrical enclosures. Due to the split frame the KEL-BES-S can also be subsequently installed around the routed cables.
Note: Snap-in mounting possible if wall thickness is 1 - 2.5 mm. For wall thickness < 1 mm and > 2.5 mm, a locknut must be used.
Materiaal |
Polycarbonaat
Borstels: Polyamide |
Vlam klasse | UL94-V0, zelfdovend |
Temperatuur | -20 C° tot 90 C° |
Eigenschappen | zonder siliconen, halogeenvrij |
Montage type | Bevestiging met borgmoer,Snap-in |
