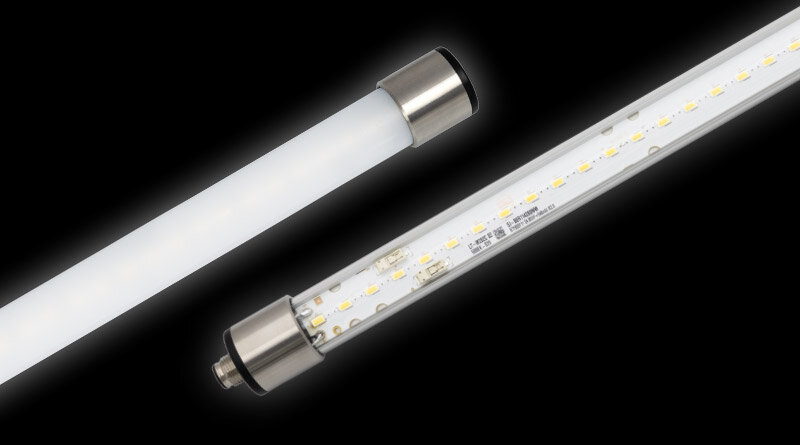

TUBE

Robust, cascadable machine luminaire with signal function / IP67

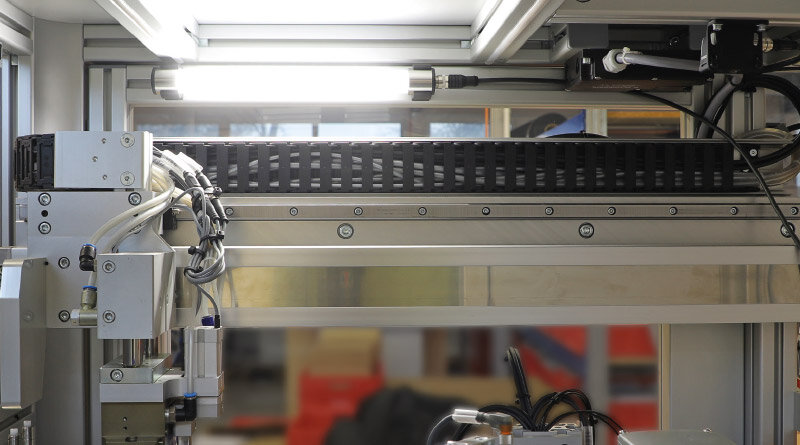

The TUBE system luminaire provides effective lighting for machinery and equipment, with M12 connectors for standardised connection.

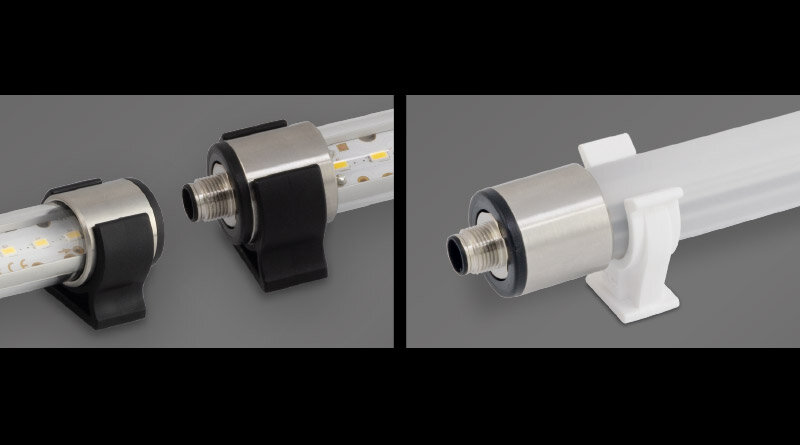

The luminaire is easy to mount, rotates and offers a circuit-independent service life of 60,000 operating hours.

Depending on the application, you can choose different materials for the tubes: the TUBE is available in chemical-resistant borosilicate glass and in impact-resistant polycarbonate. Fluctuating temperatures, oil, water or various chemicals therefore affect neither the luminosity nor the service life.

The TUBE system luminaire is now also available in WHITE, RGB and RGW versions. The coloured light of the TUBE RGB or RGW provides clear visual information, thereby contributing to greater safety. All colours of the RGB colour space can be generated by mixing the three primary colours red, green and blue. TUBE SC (serial connection) versions can also be cascaded.

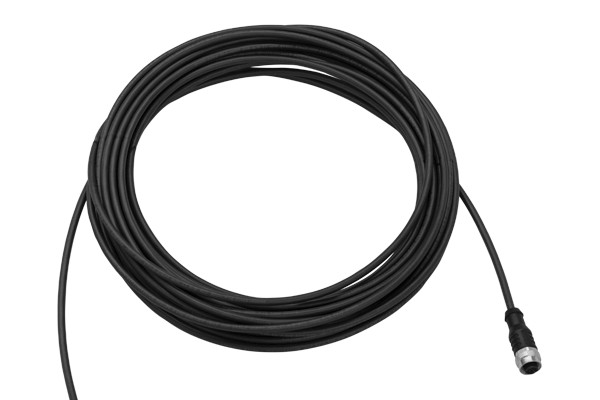

The connecting cable and the serial connection cable are not included in the scope of delivery and must be ordered separately. Mounting clips are included in the delivery.

Ladda ner PDF

Specifikationer

IP-Klass (EN 60529)	IP67
Temperatur	−20 C° till 50 C°
Material	Tube: Polycarbonate Tube: Borsilikatglas Ändkapslar: Rostfritt stål

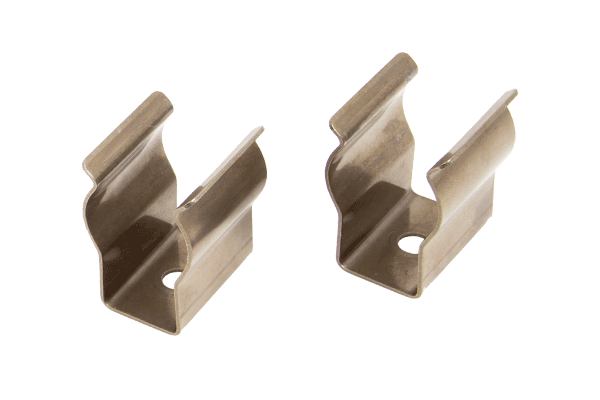

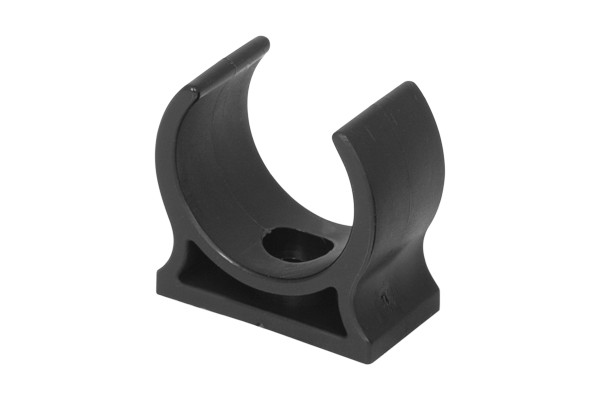

Monteringstyp	Snap-in

Fördelar

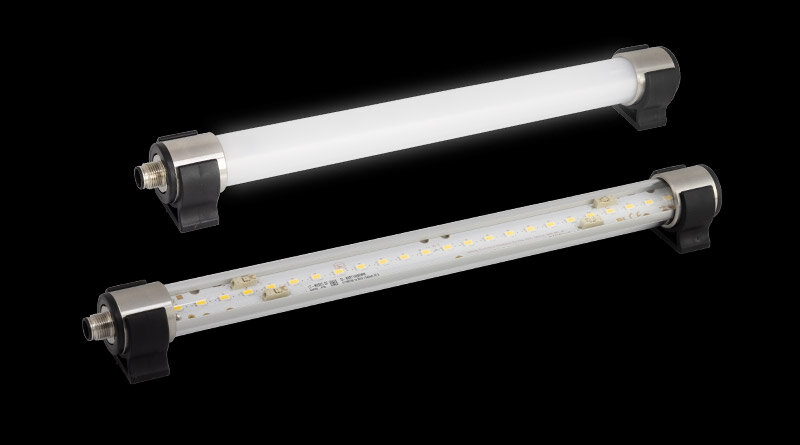

Chemical-resistant borosilicate glass or impact-resistant polycarbonate tube
Protection class IP67
Completely maintenance-free product

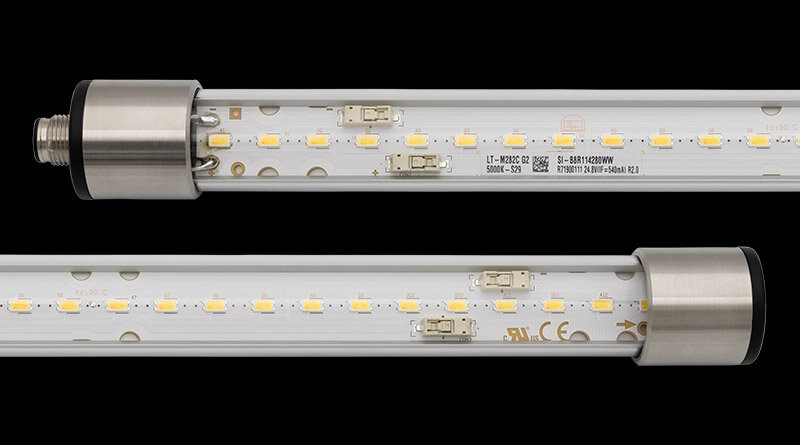

High energy efficiency thanks to High Power LED
Compact round design ø 28 mm, suitable for the tightest installation situations
Easy retrofitting in existing machines
360° rotatable
Clear information thanks to coloured light (RGB, RGW versions)
Cascadable models available (SC versions)
Stainless steel end caps
Cable connection via M12 connector

Produkttyper och storlekar

TUBE PC 7W | 360 mm | WH

ArtNr.	81550
EAN	4251269338960
Antal	1
Monteringstyp	Snap-in
Längd	360 mm
Connection possibilities	M12 connector
Rated power	7 W
Operating voltage	24 V DC (±5%), UL Class 2
Service life	60 000 h
Colour temperature	5 600 K
Colour rendering index CRI	>80
Luminous flux W	1 210 lm
Cascadable	Nej
Material tube	Polycarbonate

levererbar

Få ett citat

Datablad

TUBE BS 7W | 360 mm | WH

ArtNr.	81554
EAN	4251269338991
Antal	1
Monteringstyp	Snap-in
Längd	360 mm
Connection possibilities	M12 connector
Rated power	7 W
Operating voltage	24 V DC (±5%), UL Class 2
Service life	60 000 h
Colour temperature	5 600 K
Colour rendering index CRI	>80
Luminous flux W	1 210 lm
Cascadable	Nej
Material tube	Borsilikatglas

levererbar

Få ett citat

Datablad

TUBE PC 14W | 640 mm | WH

ArtNr.	81551
EAN	4251269338977
Antal	1
Monteringstyp	Snap-in
Längd	640 mm
Connection possibilities	M12 connector
Rated power	14 W
Operating voltage	24 V DC (±5%), UL Class 2
Service life	60 000 h
Colour temperature	5 600 K
Colour rendering index CRI	>80
Luminous flux W	2 420 lm
Cascadable	Nej
Material tube	Polycarbonate

levererbar

Få ett citat

Datablad

TUBE BS 14W | 640 mm | WH

ArtNr.	81555
EAN	4251269339004
Antal	1
Monteringstyp	Snap-in
Längd	640 mm
Connection possibilities	M12 connector
Rated power	14 W
Operating voltage	24 V DC (±5%), UL Class 2
Service life	60 000 h
Colour temperature	5 600 K
Colour rendering index CRI	>80
Luminous flux W	2 420 lm
Cascadable	Nej
Material tube	Borsilikatglas

levererbar

Få ett citat

Datablad

TUBE PC 28W | 1200 mm | WH

ArtNr.	81553
EAN	4251269338984
Antal	1
Monteringstyp	Snap-in
Längd	1 200 mm
Connection possibilities	M12 connector
Rated power	28 W
Operating voltage	24 V DC (±5%), UL Class 2
Service life	60 000 h
Colour temperature	5 600 K
Colour rendering index CRI	>80
Luminous flux W	4 840 lm
Cascadable	Nej
Material tube	Polycarbonate

levererbar

Få ett citat

Datablad

TUBE PC 7W | 360 mm | WH SC

ArtNr.	81560
EAN	4251269339011
Antal	1
Monteringstyp	Snap-in
Längd	360 mm
Connection possibilities	M12 connector, Through-wiring
Rated power	7 W
Operating voltage	24 V DC (±5%), UL Class 2
Service life	60 000 h
Colour temperature	5 600 K
Colour rendering index CRI	>80
Luminous flux W	1 210 lm
Cascadable	Ja
Material tube	Polycarbonate

levererbar

Få ett citat

Datablad

TUBE BS 7W | 360 mm | WH SC

ArtNr.	81564
EAN	4251269339042
Antal	1
Monteringstyp	Snap-in
Längd	360 mm
Connection possibilities	M12 connector, Through-wiring
Rated power	7 W
Operating voltage	24 V DC (±5%), UL Class 2
Service life	60 000 h
Colour temperature	5 600 K
Colour rendering index CRI	>80
Luminous flux W	1 210 lm
Cascadable	Ja
Material tube	Borsilikatglas

levererbar

Få ett citat

Datablad

TUBE PC 14W | 640 mm | WH SC

ArtNr.	81561
EAN	4251269339028
Antal	1
Monteringstyp	Snap-in
Längd	640 mm
Connection possibilities	M12 connector, Through-wiring
Rated power	14 W
Operating voltage	24 V DC (±5%), UL Class 2
Service life	60 000 h
Colour temperature	5 600 K
Colour rendering index CRI	>80
Luminous flux W	2 420 lm
Cascadable	Ja
Material tube	Polycarbonate

levererbar

Få ett citat

Datablad

TUBE BS 14W | 640 mm | WH SC

ArtNr.	81565
EAN	4251269339059
Antal	1
Monteringstyp	Snap-in
Längd	640 mm
Connection possibilities	M12 connector, Through-wiring
Rated power	14 W
Operating voltage	24 V DC (±5%), UL Class 2
Service life	60 000 h
Colour temperature	5 600 K
Colour rendering index CRI	>80
Luminous flux W	2 420 lm
Cascadable	Ja
Material tube	Borsilikatglas

levererbar

Få ett citat

Datablad

TUBE PC 28W | 1200 mm | WH SC

ArtNr.	81563
EAN	4251269339035
Antal	1
Monteringstyp	Snap-in
Längd	1 200 mm
Connection possibilities	M12 connector, Through-wiring
Rated power	28 W
Operating voltage	24 V DC (±5%), UL Class 2
Service life	60 000 h
Colour temperature	5 600 K
Colour rendering index CRI	>80
Luminous flux W	4 840 lm
Cascadable	Ja
Material tube	Polycarbonate

levererbar

Få ett citat

Datablad

TUBE BS 7W | 360 mm | RGB

ArtNr.	81572
EAN	4251269339080
Antal	1
Monteringstyp	Snap-in
Längd	360 mm
Connection possibilities	M12 connector
Rated power	7 W
Operating voltage	24 V DC (±5%), UL Class 2
Service life	60 000 h
Colour temperature	5 600 K
Colour rendering index CRI	>80
Luminous flux R	168 lm
Luminous flux G	267 lm
Luminous flux B	173 lm
Cascadable	Nej
Material tube	Borsilikatglas

levererbar

Få ett citat

Datablad

TUBE PC 14W | 640 mm | RGB

ArtNr.	81571
EAN	4251269339073
Antal	1
Monteringstyp	Snap-in
Längd	640 mm
Connection possibilities	M12 connector
Rated power	14 W
Operating voltage	24 V DC (±5%), UL Class 2
Service life	60 000 h
Colour temperature	5 600 K
Colour rendering index CRI	>80
Luminous flux R	336 lm
Luminous flux G	534 lm
Luminous flux B	267 lm
Cascadable	Nej
Material tube	Polycarbonate

levererbar

Få ett citat

Datablad

TUBE PC 7W | 360 mm | RGB

ArtNr.	81570
EAN	4251269339066
Antal	1
Monteringstyp	Snap-in
Längd	360 mm
Connection possibilities	M12 connector
Rated power	7 W
Operating voltage	24 V DC (±5%), UL Class 2
Service life	60 000 h
Colour temperature	5 600 K
Colour rendering index CRI	>80
Luminous flux R	168 lm
Luminous flux G	267 lm
Luminous flux B	173 lm
Cascadable	Nej
Material tube	Polycarbonate

levererbar

Få ett citat

Datablad

TUBE PC 7W | 360 mm | RGB SC

ArtNr.	81575
EAN	4251269339097
Antal	1
Monteringstyp	Snap-in
Längd	360 mm
Connection possibilities	M12 connector, Through-wiring
Rated power	7 W
Operating voltage	24 V DC (±5%), UL Class 2
Service life	60 000 h
Colour temperature	5 600 K
Colour rendering index CRI	>80
Luminous flux R	168 lm
Luminous flux G	267 lm
Luminous flux B	173 lm
Cascadable	Ja
Material tube	Polycarbonate

levererbar

Få ett citat

Datablad

TUBE BS 7W | 360 mm | RGB SC

ArtNr.	81577
EAN	4251269339110
Antal	1
Monteringstyp	Snap-in
Längd	360 mm
Connection possibilities	M12 connector, Through-wiring
Rated power	7 W
Operating voltage	24 V DC (±5%), UL Class 2
Service life	60 000 h
Colour temperature	5 600 K
Colour rendering index CRI	>80
Luminous flux R	168 lm
Luminous flux G	267 lm
Luminous flux B	173 lm
Cascadable	Ja
Material tube	Borsilikatglas

levererbar

Få ett citat

Datablad

TUBE PC 14W | 640 mm | RGB SC

ArtNr.	81576
EAN	4251269339103
Antal	1
Monteringstyp	Snap-in
Längd	640 mm
Connection possibilities	M12 connector, Through-wiring
Rated power	14 W
Operating voltage	24 V DC (±5%), UL Class 2
Service life	60 000 h
Colour temperature	5 600 K
Colour rendering index CRI	>80
Luminous flux R	336 lm
Luminous flux G	534 lm
Luminous flux B	267 lm
Cascadable	Ja
Material tube	Polycarbonate

levererbar

Få ett citat

Datablad

TUBE PC 7W | 360 mm | RGW

ArtNr.	81580
EAN	4251269339127
Antal	1
Monteringstyp	Snap-in
Längd	360 mm
Connection possibilities	M12 connector
Rated power	7 W
Operating voltage	24 V DC (±5%), UL Class 2
Service life	60 000 h
Colour temperature	5 600 K
Colour rendering index CRI	>80
Luminous flux R	214 lm
Luminous flux G	645 lm
Luminous flux W	1 210 lm
Cascadable	Nej
Material tube	Polycarbonate

levererbar

Få ett citat

Datablad

TUBE BS 7W | 360 mm | RGW

ArtNr.	81582
EAN	4251269339141
Antal	1
Monteringstyp	Snap-in
Längd	360 mm
Connection possibilities	M12 connector
Rated power	7 W
Operating voltage	24 V DC (±5%), UL Class 2
Service life	60 000 h
Colour temperature	5 600 K
Colour rendering index CRI	>80
Luminous flux R	214 lm
Luminous flux G	645 lm
Luminous flux W	1 210 lm
Cascadable	Nej
Material tube	Borsilikatglas

levererbar

Få ett citat

Datablad

TUBE PC 14W | 640 mm | RGW

ArtNr.	81581
EAN	4251269339134
Antal	1
Monteringstyp	Snap-in
Längd	640 mm
Connection possibilities	M12 connector
Rated power	14 W
Operating voltage	24 V DC (±5%), UL Class 2
Service life	60 000 h
Colour temperature	5 600 K
Colour rendering index CRI	>80
Luminous flux R	430 lm
Luminous flux G	1 290 lm
Luminous flux W	2 420 lm
Cascadable	Nej
Material tube	Polycarbonate

levererbar

Få ett citat

Datablad

TUBE BS 14W | 640 mm | RGW

ArtNr.	81583
EAN	4251269339158
Antal	1
Monteringstyp	Snap-in
Längd	640 mm
Connection possibilities	M12 connector
Rated power	14 W
Operating voltage	24 V DC (±5%), UL Class 2
Service life	60 000 h
Colour temperature	5 600 K
Colour rendering index CRI	>80
Luminous flux R	430 lm
Luminous flux G	1 290 lm
Luminous flux W	2 420 lm
Cascadable	Nej
Material tube	Borsilikatglas

levererbar

Få ett citat

Datablad

TUBE PC 7W | 360 mm | RGW SC

ArtNr.	81585
EAN	4251269339165
Antal	1
Monteringstyp	Snap-in
Längd	360 mm
Connection possibilities	M12 connector, Through-wiring
Rated power	7 W
Operating voltage	24 V DC (±5%), UL Class 2
Service life	60 000 h
Colour temperature	5 600 K
Colour rendering index CRI	>80
Luminous flux R	214 lm
Luminous flux G	645 lm
Luminous flux W	1 210 lm
Cascadable	Ja
Material tube	Polycarbonate

levererbar

Få ett citat

Datablad

TUBE BS 7W | 360 mm | RGW SC

ArtNr.	81587
EAN	4251269339189
Antal	1
Monteringstyp	Snap-in
Längd	360 mm
Connection possibilities	M12 connector, Through-wiring
Rated power	7 W
Operating voltage	24 V DC (±5%), UL Class 2
Service life	60 000 h
Colour temperature	5 600 K
Colour rendering index CRI	>80
Luminous flux R	214 lm
Luminous flux G	645 lm
Luminous flux W	1 210 lm
Cascadable	Ja
Material tube	Borsilikatglas

levererbar

Få ett citat

Datablad

TUBE PC 14W | 640 mm | RGW SC

ArtNr.	81586
EAN	4251269339172
Antal	1
Monteringstyp	Snap-in
Längd	640 mm
Connection possibilities	M12 connector, Through-wiring
Rated power	14 W
Operating voltage	24 V DC (±5%), UL Class 2
Service life	60 000 h
Colour temperature	5 600 K
Colour rendering index CRI	>80
Luminous flux R	430 lm
Luminous flux G	1 290 lm
Luminous flux W	2 420 lm
Cascadable	Ja
Material tube	Polycarbonate

levererbar

Få ett citat

Datablad

TUBE BS 14W | 640 mm | RGW

ArtNr.	81588
EAN	4251269339196
Antal	1
Monteringstyp	Snap-in
Längd	640 mm
Connection possibilities	M12 connector, Through-wiring
Rated power	14 W
Operating voltage	24 V DC (±5%), UL Class 2
Service life	60 000 h
Colour temperature	5 600 K
Colour rendering index CRI	>80
Luminous flux R	430 lm
Luminous flux G	1 290 lm
Luminous flux W	2 420 lm
Cascadable	Ja
Material tube	Borsilikatglas

levererbar

Få ett citat

Datablad

TUBE PC 28W | 1200 mm | RGW SC

ArtNr.	81589
EAN	4251269339202
Antal	1
Monteringstyp	Snap-in
Längd	1 200 mm
Connection possibilities	M12 connector, Through-wiring
Rated power	28 W
Operating voltage	24 V DC (±5%), UL Class 2
Service life	60 000 h
Colour temperature	5 600 K
Colour rendering index CRI	>80
Luminous flux R	860 lm
Luminous flux G	2 580 lm
Luminous flux W	4 840 lm
Cascadable	Ja
Material tube	Polycarbonate

levererbar

Få ett citat

Datablad

Connecting cable for TUBE, 5000 mm

ArtNr.	81530
EAN	4251269333163
Antal	1
Monteringstyp	Snap-in
Length connecting cable	5 000 mm
Operating voltage	24 V DC ±5%
Färg	svart
Material cable sheath	Polyurethane

levererbar

Få ett citat

Datablad

Connecting cable for TUBE SC (cascadable), 5000 mm

ArtNr.	81590
EAN	4251269333163
Antal	1
Monteringstyp	Snap-in
Length connecting cable	5 000 mm
Version	M12_Steckverbinder_f
Färg	orange
Material cable sheath	Polyurethane

levererbar

Få ett citat

Connecting cable for TUBE, 10000 mm

ArtNr.	81531
EAN	4251269333170
Antal	1
Monteringstyp	Snap-in
Length connecting cable	10 000 mm
Operating voltage	24 V DC ±5%
Färg	svart
Material cable sheath	Polyurethane

levererbar

Få ett citat

Datablad

Connecting cable for TUBE SC (cascadable), 10000 mm

ArtNr.	81591
EAN	4251269333170
Antal	1
Monteringstyp	Snap-in
Length connecting cable	10 000 mm
Version	M12_Steckverbinder_f
Färg	orange
Material cable sheath	Polyurethane

levererbar

Få ett citat

Through-wiring cable for TUBE SC (cascadable), 2000 mm

ArtNr.	81595
EAN	4251269339493
Antal	1
Monteringstyp	Snap-in
Length connecting cable	2 000 mm
Version	M12_Steckverbinder_mf
Färg	orange
Material cable sheath	Polyurethane

levererbar

Få ett citat

Mounting clips TUBE, stainless steel

ArtNr.	91443
EAN	4251269335082
Antal	2
Monteringstyp	Snap-in
Längd	30 mm
Höjd	38 mm
Bredd	27 mm
Färg	svart
Antal skruvhål	1
Skruvhålens diameter	6,5 mm

levererbar

Få ett citat

Datablad

Mounting clip TUBE, opening size 28 mm

ArtNr.	91070
Antal	1
Monteringstyp	Snap-in
Längd	18,4 mm
Höjd	34 mm
Bredd	34 mm
End cap diameter	28 mm
Färg	svart
Antal skruvhål	1
Skruvhålens diameter	4,2 mm

levererbar

Få ett citat

Hittade du inte något lämpligt än?

Prova vår ProductFinder

Du kanske också är intresserad av följande produkter

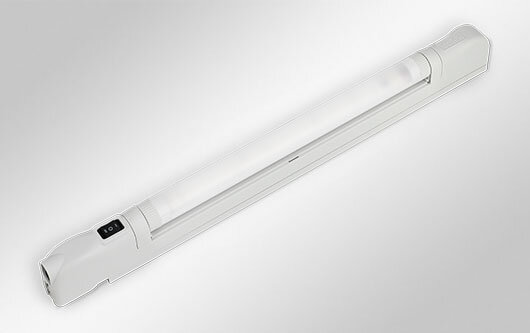

ALLIO

Compact LED lighting for industry and IT applications

With its compact design and 190° rotating tube, the ALLIO system luminaire offers space-saving lighting for enclosures.

ALU-LINE

Innovative LED lighting for industry and IT applications

The ALU-LINE system luminaires provides effective lighting in enclosures for industrial and IT applications. Their aluminium housing makes them particularly high-quality and stable.

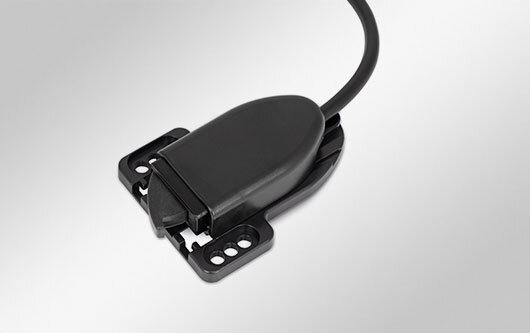

TPS

Door operated switch suitable for ALLIO and ALU-LINE series

This switch makes it possible to monitor the status of the cabinet door and automatically switch the cabinet luminaires on or off.
