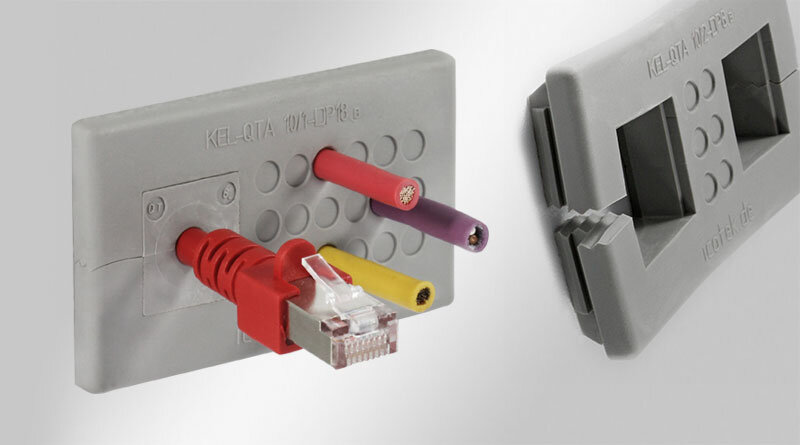

Split, pluggable cable entry plates (IP54) for routing pre-terminated and standard cables utilising split QT grommets or membranes.

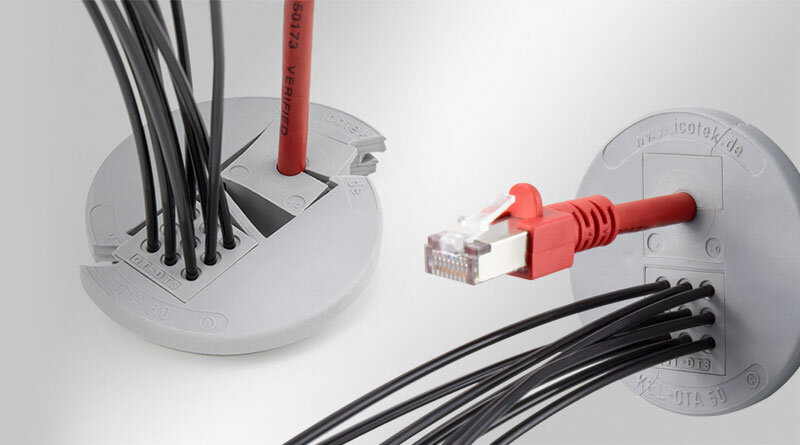

Suitable for cut-outs for 10- and 24-pin industrial connectors. The compact size KEL-QTA-B is suitable for cut-outs 45.5 x 45.5 mm. The round versions of the KEL-QTA are suitable for cut-outs 32 / 50 mm in diameter.
The KEL-QTA easily routes pre-terminated cables, multi-conductors, hoses or conduits without using any tools for assembly.
| IP rating (EN 60529) | IP54 |
| Flame class | UL94-V0, self-extinguishing |
| Operating temperature | -40 C° to 100 C° |
| Material | Elastomer |
| Mounting options | Snap-in |
| Properties | UV-resistant, silicone free, halogen free |
| Part No. | 43644 |
| EAN | 4251269310379 |
| Package quantity | 10 |
| Mounting options | Snap-in |
| For max. no. of cables | 16 |
| Max. cable diam., with connector | 15 mm |
| Length | 142 mm |
| Width | 44 mm |
| Height | 12 mm |
| Mounting height | 5 mm |
| Cut-out size | 112 × 36 mm |
| For min. wall thickness | 1.5 mm |
| For max. wall thickness | 2.5 mm |
| Suitable for grommets | 4 x QT small |
| Part No. | 43645 |
| EAN | 4251269310386 |
| Package quantity | 10 |
| Mounting options | Snap-in |
| For max. no. of cables | 16 |
| Max. cable diam., with connector | 15 mm |
| Length | 142 mm |
| Width | 44 mm |
| Height | 12 mm |
| Mounting height | 5 mm |
| Cut-out size | 112 × 36 mm |
| For min. wall thickness | 2.8 mm |
| For max. wall thickness | 4 mm |
| Suitable for grommets | 4 x QT small |
| Part No. | 43642 |
| EAN | 4251269310355 |
| Package quantity | 10 |
| Mounting options | Snap-in |
| For max. no. of cables | 26 |
| Max. cable diam., with connector | 15 mm |
| Max. cable diam., without connector | 16 mm |
| Length | 142 mm |
| Width | 44 mm |
| Height | 12 mm |
| Mounting height | 5 mm |
| Cut-out size | 112 × 36 mm |
| For min. wall thickness | 1.5 mm |
| For max. wall thickness | 2.5 mm |
| Suitable for grommets | 2 x QT small |
| Part No. | 43643 |
| EAN | 4251269310362 |
| Package quantity | 10 |
| Mounting options | Snap-in |
| For max. no. of cables | 26 |
| Max. cable diam., with connector | 15 mm |
| Max. cable diam., without connector | 16 mm |
| Length | 142 mm |
| Width | 44 mm |
| Height | 12 mm |
| Mounting height | 5 mm |
| Cut-out size | 112 × 36 mm |
| For min. wall thickness | 2.8 mm |
| For max. wall thickness | 4 mm |
| Suitable for grommets | 2 x QT small |
| Part No. | 43656 |
| EAN | 4251269310409 |
| Package quantity | 10 |
| Mounting options | Snap-in |
| For max. no. of cables | 14 |
| Max. cable diam., with connector | 15 mm |
| Max. cable diam., without connector | 5 mm |
| Length | 75 mm |
| Width | 44 mm |
| Height | 12 mm |
| Mounting height | 5 mm |
| Cut-out size | 65 × 36 mm |
| For min. wall thickness | 1.5 mm |
| For max. wall thickness | 2.5 mm |
| Suitable for grommets | 2 x QT small |
| Part No. | 43659 |
| EAN | 4251269310423 |
| Package quantity | 10 |
| Mounting options | Snap-in |
| For max. no. of cables | 14 |
| Max. cable diam., with connector | 15 mm |
| Max. cable diam., without connector | 5 mm |
| Length | 75 mm |
| Width | 44 mm |
| Height | 12 mm |
| Mounting height | 5 mm |
| Cut-out size | 65 × 36 mm |
| For min. wall thickness | 2.8 mm |
| For max. wall thickness | 4 mm |
| Suitable for grommets | 2 x QT small |
| Part No. | 43655 |
| EAN | 4251269310393 |
| Package quantity | 10 |
| Mounting options | Snap-in |
| For max. no. of cables | 22 |
| Max. cable diam., with connector | 15 mm |
| Max. cable diam., without connector | 5 mm |
| Length | 75 mm |
| Width | 44 mm |
| Height | 12 mm |
| Mounting height | 5 mm |
| Cut-out size | 65 × 36 mm |
| For min. wall thickness | 1.5 mm |
| For max. wall thickness | 2.5 mm |
| Suitable for grommets | 1 x QT small |
| Part No. | 43658 |
| EAN | 4251269310416 |
| Package quantity | 10 |
| Mounting options | Snap-in |
| For max. no. of cables | 22 |
| Max. cable diam., with connector | 15 mm |
| Max. cable diam., without connector | 5 mm |
| Length | 75 mm |
| Width | 44 mm |
| Height | 12 mm |
| Mounting height | 5 mm |
| Cut-out size | 65 × 36 mm |
| For min. wall thickness | 2.8 mm |
| For max. wall thickness | 4 mm |
| Suitable for grommets | 1 x QT small |
| Part No. | 43660 |
| EAN | 4251269310430 |
| Package quantity | 10 |
| Mounting options | Snap-in |
| For max. no. of cables | 16 |
| Max. cable diam., with connector | 15 mm |
| Length | 55 mm |
| Width | 55 mm |
| Height | 11 mm |
| Mounting height | 5 mm |
| Cut-out size | 46 × 46 mm |
| For min. wall thickness | 1.5 mm |
| For max. wall thickness | 2.5 mm |
| Suitable for grommets | 4 x QT small |
| Part No. | 43632 |
| EAN | 4251269310331 |
| Package quantity | 10 |
| Mounting options | Snap-in |
| For max. no. of cables | 4 |
| Max. cable diam., with connector | 15 mm |
| Length | 0 mm |
| Width | 0 mm |
| Height | 12 mm |
| Mounting height | 5 mm |
| For min. wall thickness | 1.5 mm |
| For max. wall thickness | 2.5 mm |
| Suitable for grommets | 1 x QT small |
| Part No. | 43636 |
| EAN | 4251269310348 |
| Package quantity | 10 |
| Mounting options | Snap-in |
| For max. no. of cables | 4 |
| Max. cable diam., with connector | 15 mm |
| Length | 0 mm |
| Width | 0 mm |
| Height | 12 mm |
| Mounting height | 5 mm |
| For min. wall thickness | 2.8 mm |
| For max. wall thickness | 4 mm |
| Suitable for grommets | 1 x QT small |
| Part No. | 43622 |
| EAN | 4251269310317 |
| Package quantity | 10 |
| Mounting options | Snap-in |
| For max. no. of cables | 8 |
| Max. cable diam., with connector | 15 mm |
| Length | 0 mm |
| Width | 0 mm |
| Height | 12 mm |
| Mounting height | 5 mm |
| For min. wall thickness | 1.5 mm |
| For max. wall thickness | 2.5 mm |
| Suitable for grommets | 2 x QT small |
| Part No. | 43626 |
| EAN | 4251269310324 |
| Package quantity | 10 |
| Mounting options | Snap-in |
| For max. no. of cables | 8 |
| Max. cable diam., with connector | 15 mm |
| Length | 0 mm |
| Width | 0 mm |
| Height | 12 mm |
| Mounting height | 5 mm |
| For min. wall thickness | 2.8 mm |
| For max. wall thickness | 4 mm |
| Suitable for grommets | 2 x QT small |
