KTMB 183 | Multi-range grommets for KEL 183

for cable diameters 34 - 75 mm / IP54 / UL Type 12

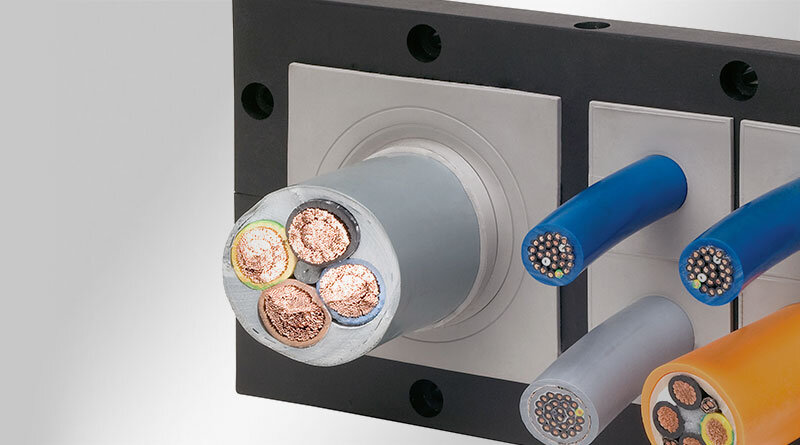

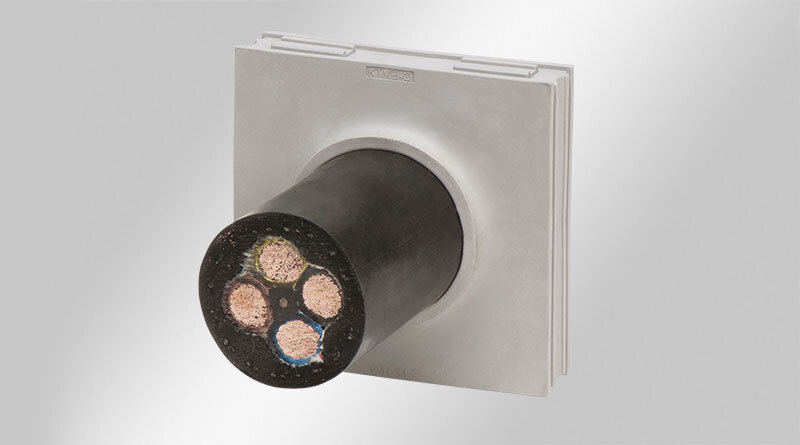

The grommets KTMB-P to KTMB-S are suitable for cable diameters up to 75 mm. These grommets can be used with the KEL 183 cable entry frames.

These multi-range grommets are not split and have a defined area for pushing the cable through.

The blank grommet KTMB-O can accept cable sizes within a specified range. The membrane of the KTMB-O can be pierced or cut (cable diameter minus 10 mm) for cables up to 55mm in diameter.


IP rating (EN 60529) IP54
UL Type (UL 50E) UL Type 12
Flame class UL94-V0, self-extinguishing
Operating temperature -40 C° to 100 C°
Material Elastomer
Properties halogen free, silicone free

Advantages & benefits

  • Installation of cables up to 75 mm in diameter
  • It is possible to install rigid cables at angles

Product types & sizes
