ST 1
| Part No. | 42900 |
| EAN | 4251269318337 |
| Package quantity | 25 |
| Colour | white |
| Length | 25 mm |
| For cable type | Round cable |
| Diameter D1 | 1 mm |
-
Products
»
Cable grommets
»
ST plugs for cable grommets

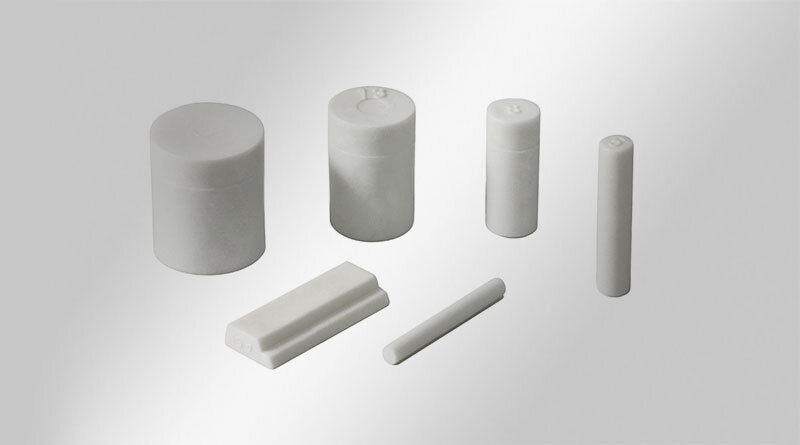

ST plugs for cable grommets
of the KT and QT series, diameters 1 - 17 mm

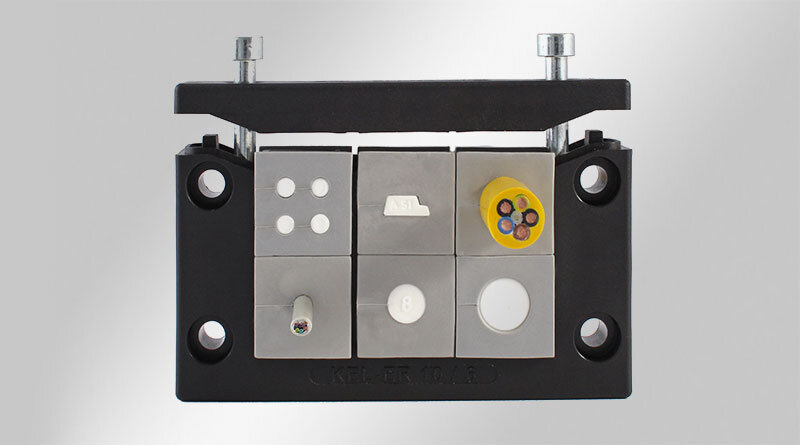

Plugs are used to close either KT or QT grommets which are not equipped with cables. IP ratings of the grommets remain.
Perfect for applications where cables have been removed or might be routed at a later stage.
Specifications
| UL Type (UL 50E) | UL Type 12 |
| Flame class | UL94-V0, self-extinguishing |
| Operating temperature | -40 C° to 120 C° |
| Material | Polyamide |
| Properties | silicone free, halogen free |
Advantages & benefits
- Sealing unused cable grommets
Product types & sizes

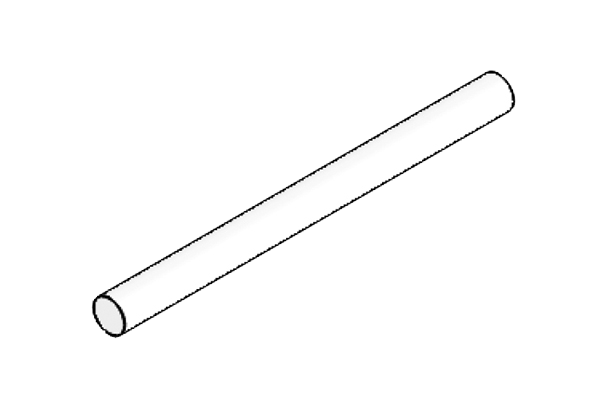

ST 2
| Part No. | 42909 |
| EAN | 4251269309359 |
| Package quantity | 25 |
| Colour | white |
| Length | 25 mm |
| For cable type | Round cable |
| Diameter D1 | 2 mm |

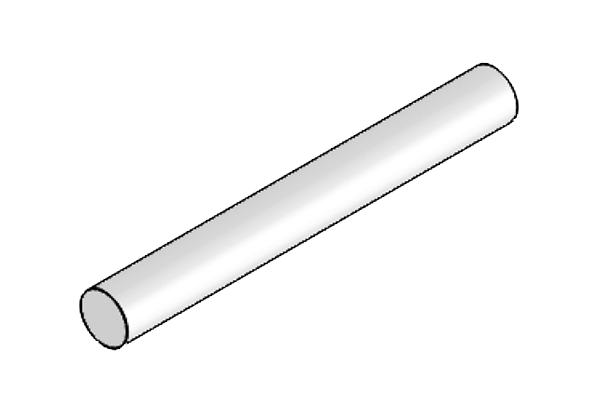

ST 3
| Part No. | 42901 |
| EAN | 4251269309304 |
| Package quantity | 25 |
| Colour | white |
| Length | 25 mm |
| For cable type | Round cable |
| Diameter D1 | 3 mm |

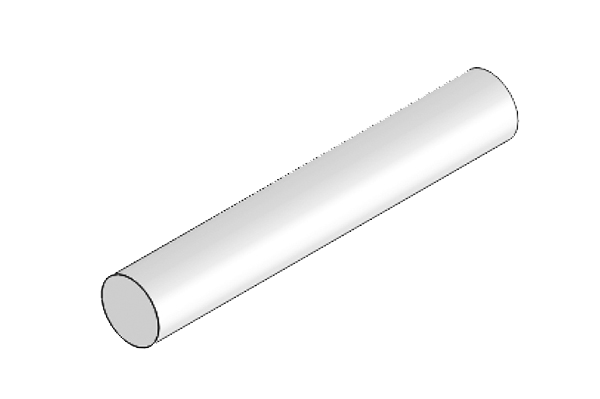

ST 4
| Part No. | 42908 |
| EAN | 4251269309342 |
| Package quantity | 25 |
| Colour | white |
| Length | 25 mm |
| For cable type | Round cable |
| Diameter D1 | 4 mm |

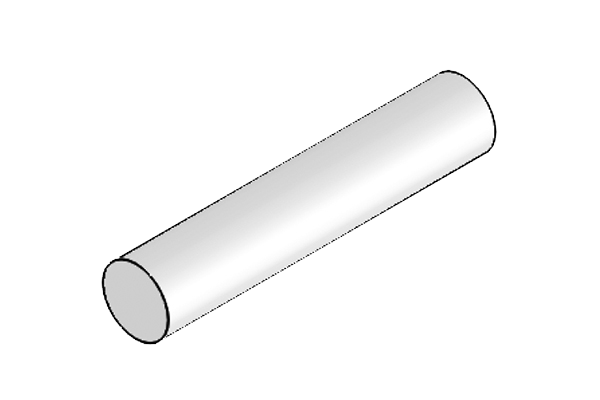

ST 5
| Part No. | 42906 |
| EAN | 4251269309335 |
| Package quantity | 25 |
| Colour | white |
| Length | 25 mm |
| For cable type | Round cable |
| Diameter D1 | 5 mm |

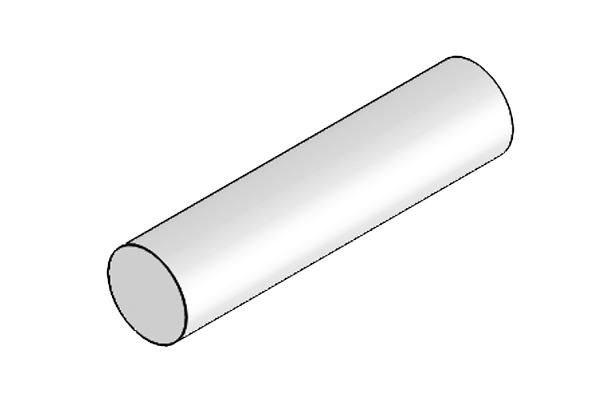

ST 6
| Part No. | 42903 |
| EAN | 4251269309311 |
| Package quantity | 25 |
| Colour | white |
| Length | 25 mm |
| For cable type | Round cable |
| Diameter D1 | 6 mm |

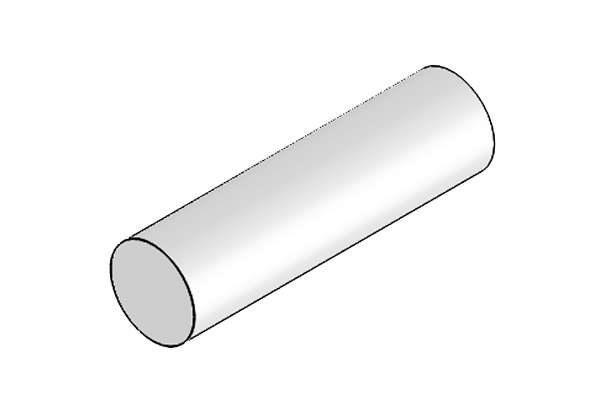

ST 7
| Part No. | 42905 |
| EAN | 4251269309328 |
| Package quantity | 25 |
| Colour | white |
| Length | 25 mm |
| For cable type | Round cable |
| Diameter D1 | 7 mm |

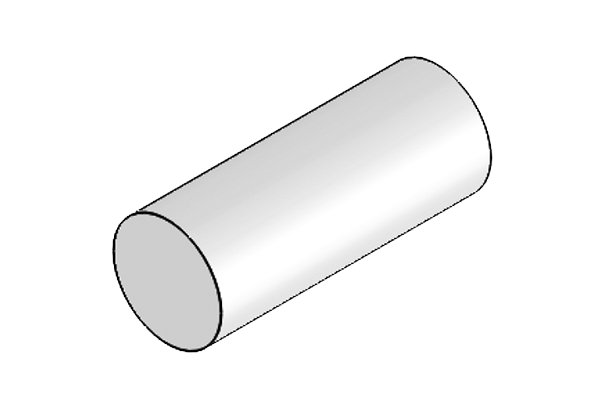

ST 8
| Part No. | 42899 |
| EAN | 4251269309298 |
| Package quantity | 25 |
| Colour | white |
| Length | 20 mm |
| For cable type | Round cable |
| Diameter D1 | 8 mm |

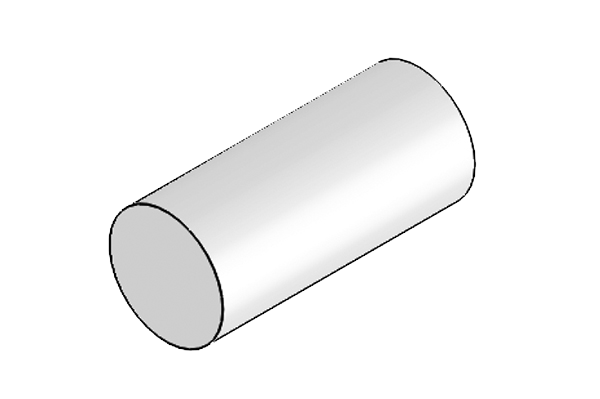

ST 9
| Part No. | 42897 |
| EAN | 4251269309281 |
| Package quantity | 25 |
| Colour | white |
| Length | 20 mm |
| For cable type | Round cable |
| Diameter D1 | 9 mm |

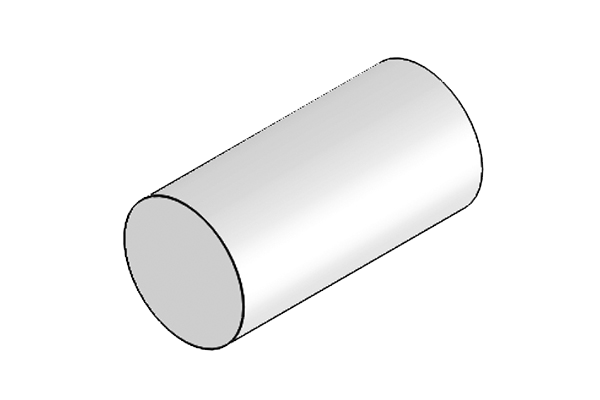

ST 10
| Part No. | 42895 |
| EAN | 4251269309274 |
| Package quantity | 25 |
| Colour | white |
| Length | 20 mm |
| For cable type | Round cable |
| Diameter D1 | 10 mm |

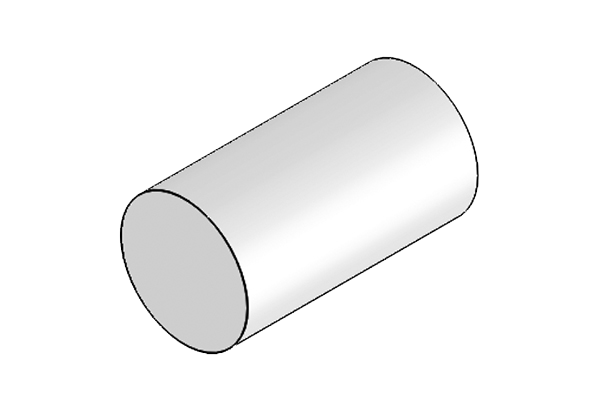

ST 11
| Part No. | 42893 |
| EAN | 4251269309267 |
| Package quantity | 25 |
| Colour | white |
| Length | 20 mm |
| For cable type | Round cable |
| Diameter D1 | 11 mm |

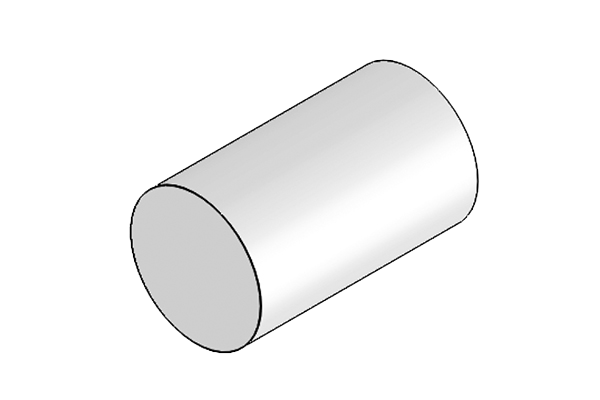

ST 12
| Part No. | 42891 |
| EAN | 4251269309250 |
| Package quantity | 25 |
| Colour | white |
| Length | 20 mm |
| For cable type | Round cable |
| Diameter D1 | 12 mm |

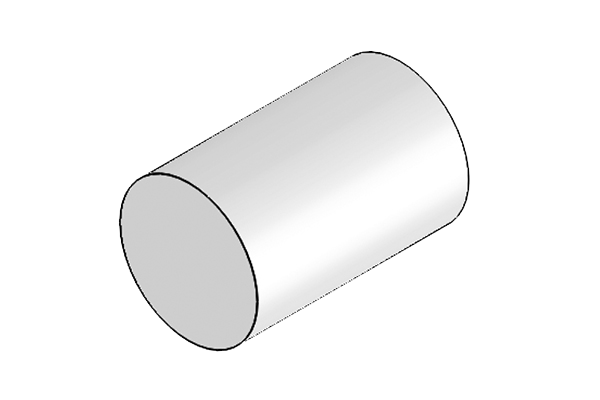

ST 13
| Part No. | 42889 |
| EAN | 4251269309243 |
| Package quantity | 25 |
| Colour | white |
| Length | 20 mm |
| For cable type | Round cable |
| Diameter D1 | 13 mm |

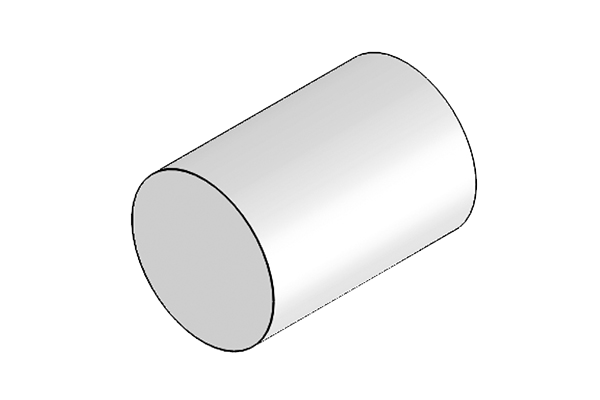

ST 14
| Part No. | 42887 |
| EAN | 4251269309236 |
| Package quantity | 25 |
| Colour | white |
| Length | 20 mm |
| For cable type | Round cable |
| Diameter D1 | 14 mm |

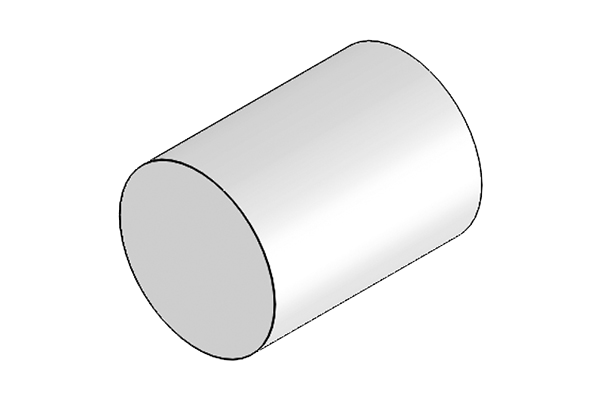

ST 15
| Part No. | 42885 |
| EAN | 4251269309229 |
| Package quantity | 25 |
| Colour | white |
| Length | 20 mm |
| For cable type | Round cable |
| Diameter D1 | 15 mm |

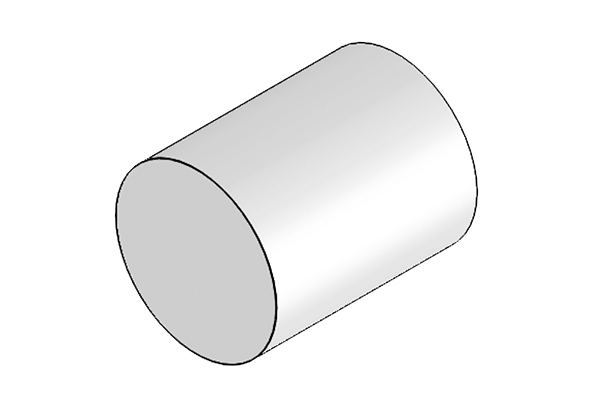

ST 16
| Part No. | 42883 |
| EAN | 4251269309212 |
| Package quantity | 25 |
| Colour | white |
| Length | 20 mm |
| For cable type | Round cable |
| Diameter D1 | 16 mm |

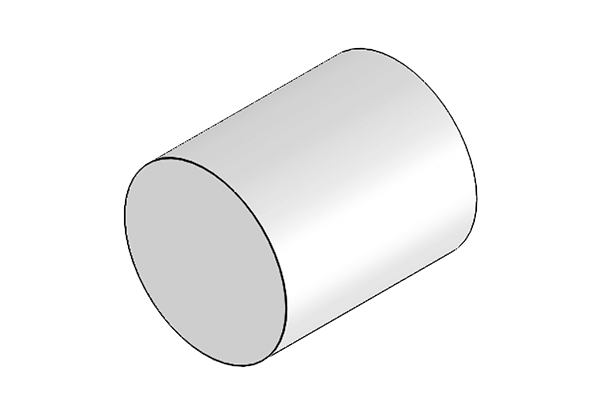

ST 17
| Part No. | 42881 |
| EAN | 4251269309205 |
| Package quantity | 25 |
| Colour | white |
| Length | 20 mm |
| For cable type | Round cable |
| Diameter D1 | 17 mm |

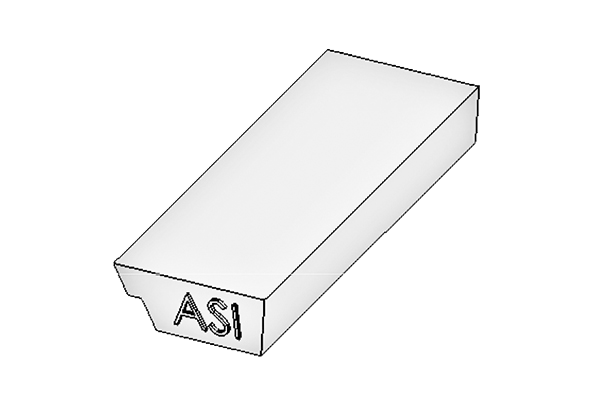

ST-ASI
| Part No. | 42877 |
| EAN | 4251269309199 |
| Package quantity | 25 |
| Colour | white |
| Length | 25 mm |
| For cable type | ASI cable |
