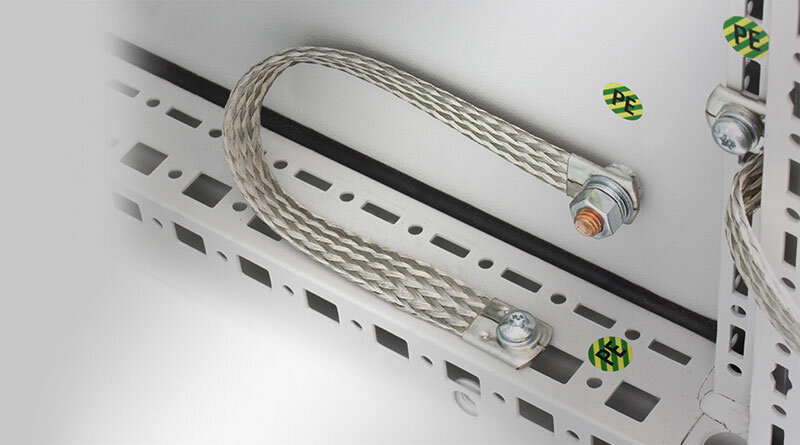

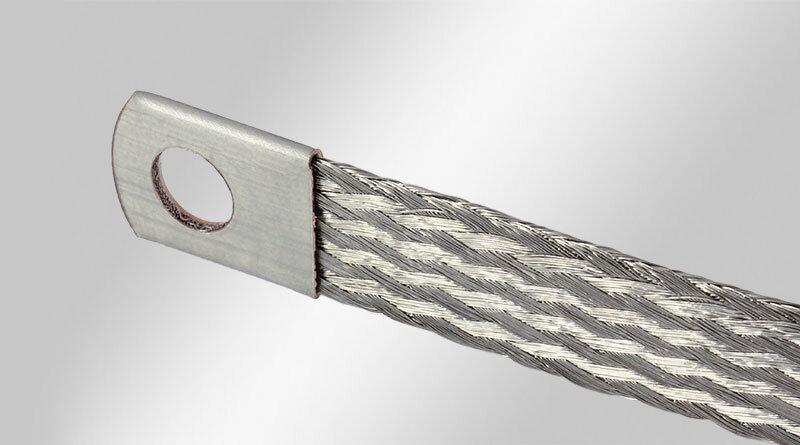

Manufactured with highly flexible E-Cu stranded wires with connecting end pads made of tinned copper strips.
The minimum transition and connecting resistance makes them perfectly suitable for use as earthing tapes.
Earthing Tapes are available with M4, M5, M6, M8 or M10 connections and in some sizes with both connection sizes combined.

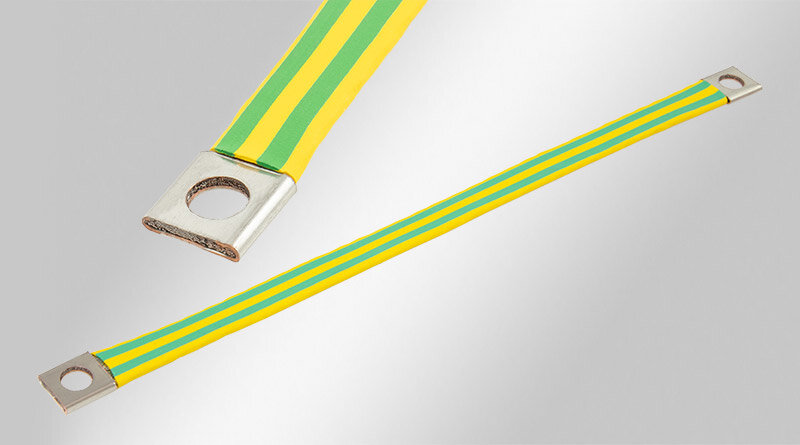

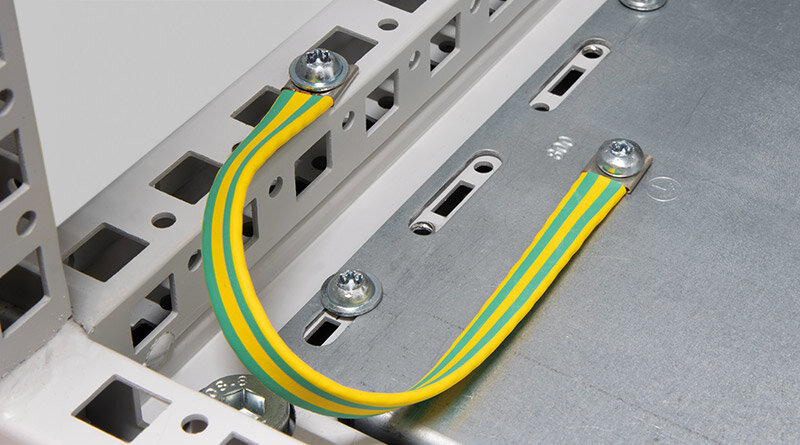

The earthing tapes are also available with green and yellow shrink sleeve. This provides clear visual colour identification.
UL Product iQ: Download PDF
Cross-section |
Current load |
6 mm² |
67 – 80 A |
10 mm² |
89 – 106 A |
16 mm² |
132 – 157 A |
25 mm² |
177 – 210 A |
35 mm² |
230 – 275 A |
50 mm² |
280 – 350 A |
70 mm² |
338 – 403 A |
