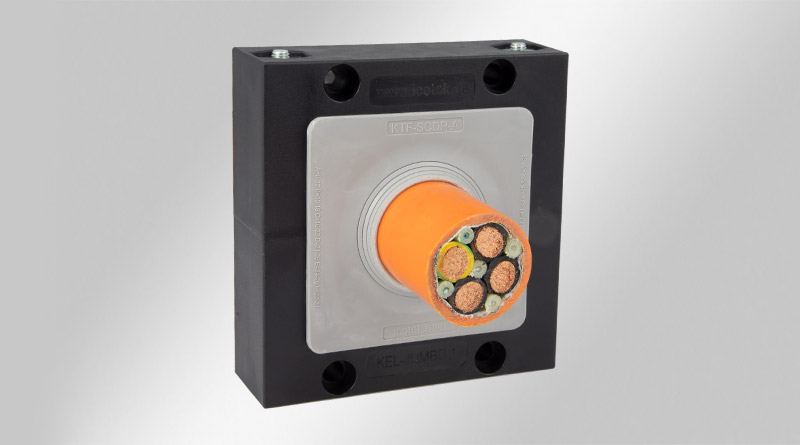

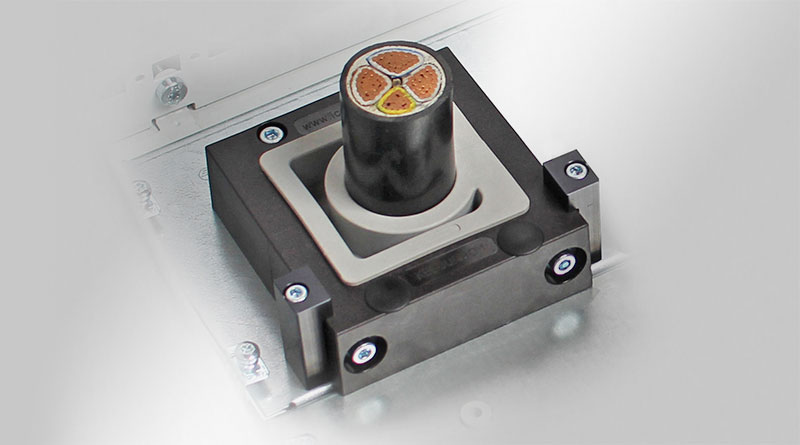

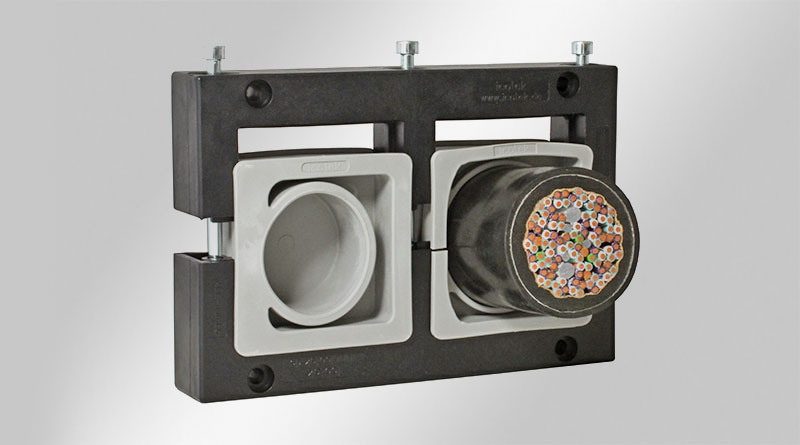

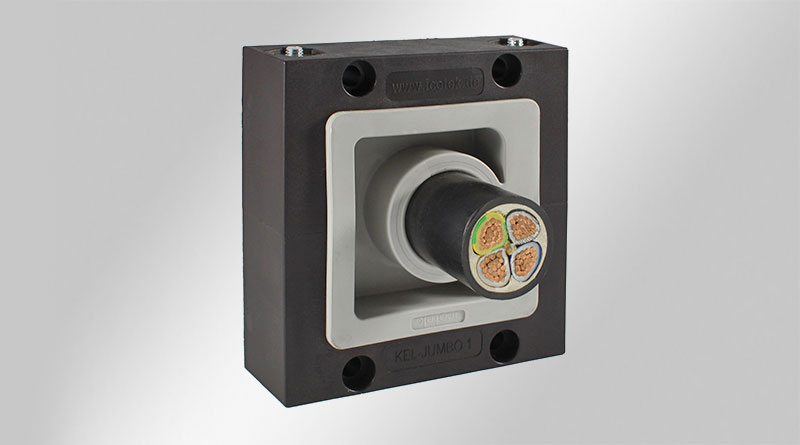

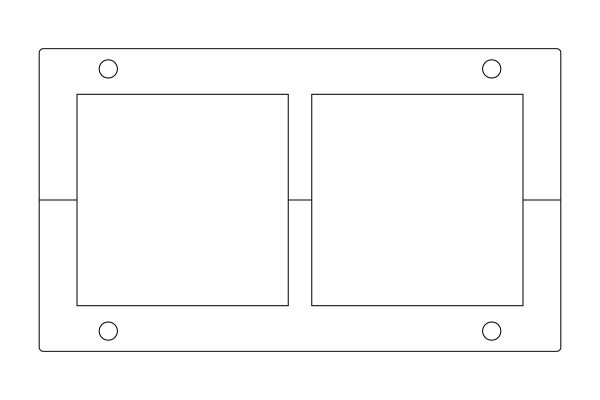

KEL-JUMBO split cable entry frames

for cables with diameters of up to 65 mm / IP54 / UL Type 12

The KEL-JUMBO cable entry system for installation of cables and conduits with a diameter of up to 65 mm, especially suited for supply cables. The innovative grommet design with the flex-membrane provides flexing and adjustment of the position for larger and more rigid cables.

We recommend round cut-outs, which can be made using standard knockout tools. Suggested cut-out: cable diameter +15 - 20%.

A flat rubber gasket is included in the shipment.

Specifications

IP rating (certified acc. to EN 60529) IP54
UL Type (certified acc. to UL 50E) UL Type 12
Material Polyamide
Flame class UL94-V0, self-extinguishing
Operating temperature -40 C° to 140 C°
Properties vibration proof, UV-resistant, silicone free, anti-corrosive (V2A versions), halogen free
Mounting options Screw type mounting
height 35 mm

Advantages & benefits

  • Installation of cables up to 65 mm in diameter
  • It is possible to install rigid cables at angles
  • Retrofits, repairs and maintenance can be done much more easily and quickly
  • Strain relief according to EN 62444
