|Mounting height||10 mm|
|Cut-out size||112 × 36 mm|
|No. of screw holes||4|
|Diam. of screw holes||5.8 mm|

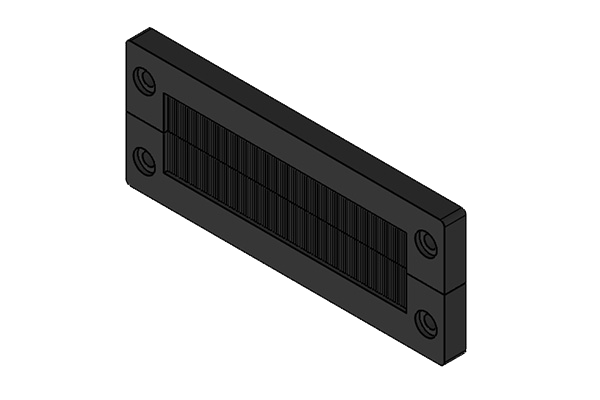

Split brush plates KEL-BES-S for routing cables into server racks, control panels and electrical enclosures. KEL-BES-S is also an ideal solution for entry and exit of cables that are routed inside raised floors, e.g. in computer centres.
The brush plates can either be mounted via screws or via expanding rivets. Due to the split frame the KEL-BES-S can also be subsequently installed around the routed cables.
The KEL-BES-S frames match exactly the cut-out dimensions for 10-, 16- and 24-pin standard industrial connectors.
|Flame class||UL94-V0, self-extinguishing|
|Operating temperature||-20 C° to 90 C°|
|Properties||silicone free, halogen free|
|Mounting options||Screw type mounting,Riveting|
