KT-BL 2|1
| Part No. | 41235 |
| EAN | 4251269338717 |
| Package quantity | 10 |
| For max. no. of cables | 2 |
| Color | blue (similar RAL 5005) |
| Length | 21 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Clamping range | 2 x 1 - 1 mm |
-
Products
»
Cable Grommets
»

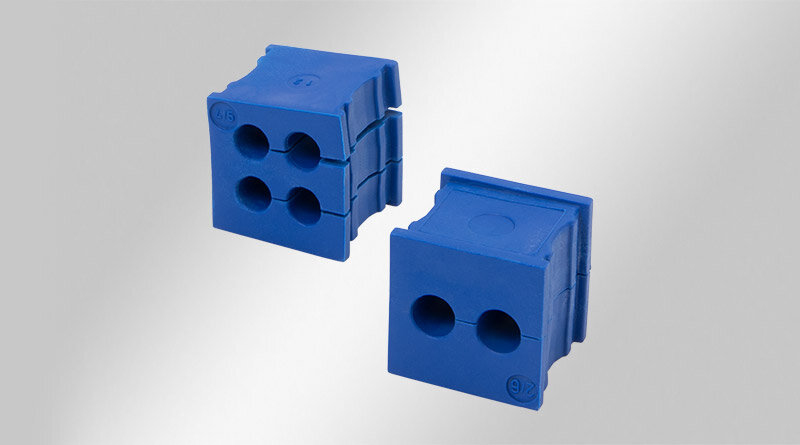

KT-BL multi | Multi-Hole Cable Grommets for the Food Industry
KT-BL multi | Multi-Hole Cable Grommets for the Food Industry
for Cable Diameters 1 - 8 mm / IP54

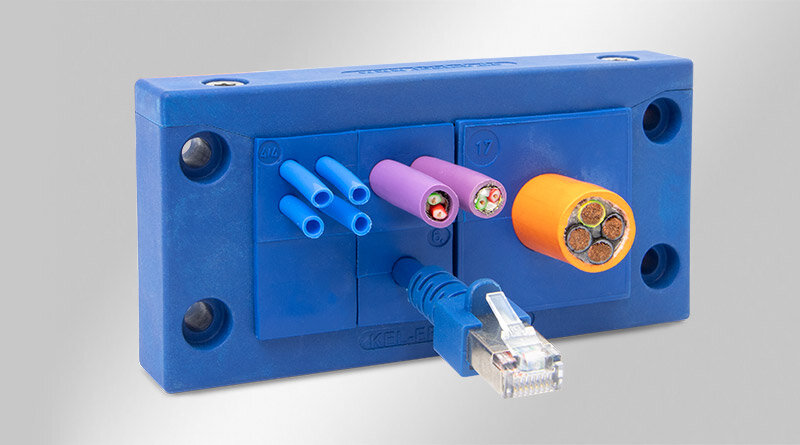

The KT-BL range of grommets are particularly suitable for use with the KEL-ER-BL cable entry frames. The signal color blue provides clear visual color identification.
KT-BL multi-hole grommets enable a sealing of the cables with IP54.
When using double or quadruple grommets the cable density of cable entry frames and cable glands can be greatly increased. The multi-hole model range KT-BL multi is designed for cable diameters from 1 to 8 mm.

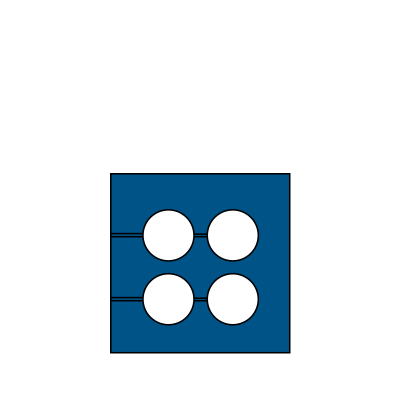

When installing the small grommets in multiple rows, the flat sides should be facing each other. This allows the flat sides to match up and provide a secure seal.
Specifications
| IP rating (EN 60529) | IP54, IP55, IP64, IP65 |
| Flame class | UL94-V0, self-extinguishing |
| Operating temperature | -40 C° to 100 C° |
| Material | Elastomer |
| Properties | silicone free, halogen free |
Advantages & Benefits

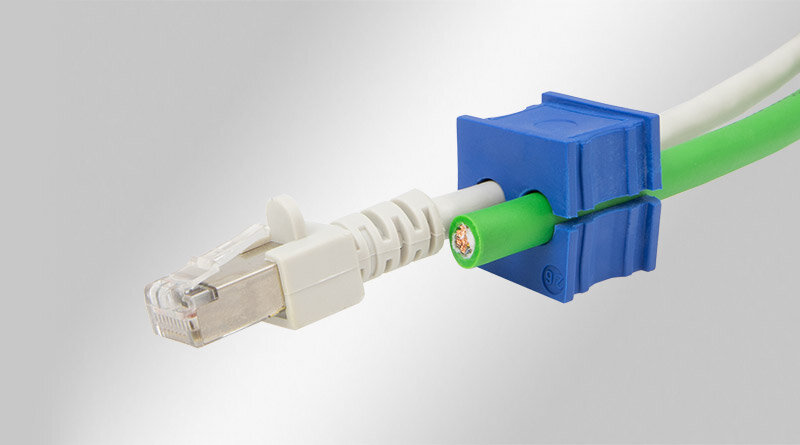

- Routing of cables with and without connectors through the cable entry frame KEL-ER-BL
- High strain relief in accordance with EN 62444
- Available for a wide range of cable diameters
- Signal colour blue for a clear visual colour recognition in the food industry
- Greatly increased cable density when using double or quadruple grommets
Product Types & Sizes
KT-BL 2|2
| Part No. | 41236 |
| EAN | 4251269338724 |
| Package quantity | 10 |
| For max. no. of cables | 2 |
| Color | blue (similar RAL 5005) |
| Length | 21 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Clamping range | 2 x 2 - 2 mm |
KT-BL 2|3
| Part No. | 41237 |
| EAN | 4251269338731 |
| Package quantity | 10 |
| For max. no. of cables | 2 |
| Color | blue (similar RAL 5005) |
| Length | 21 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Clamping range | 2 x 3 - 3 mm |
KT-BL 2|4
| Part No. | 41238 |
| EAN | 4251269338748 |
| Package quantity | 10 |
| For max. no. of cables | 2 |
| Color | blue (similar RAL 5005) |
| Length | 21 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Clamping range | 2 x 4 - 4 mm |
KT-BL 2|5
| Part No. | 41239 |
| EAN | 4251269338755 |
| Package quantity | 10 |
| For max. no. of cables | 2 |
| Color | blue (similar RAL 5005) |
| Length | 21 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Clamping range | 2 x 5 - 5 mm |
KT-BL 2|6
| Part No. | 41240 |
| EAN | 4251269338762 |
| Package quantity | 10 |
| For max. no. of cables | 2 |
| Color | blue (similar RAL 5005) |
| Length | 21 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Clamping range | 2 x 6 - 6 mm |
KT-BL 2|7
| Part No. | 41241 |
| EAN | 4251269338779 |
| Package quantity | 10 |
| For max. no. of cables | 2 |
| Color | blue (similar RAL 5005) |
| Length | 21 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Clamping range | 2 x 7 - 7 mm |
KT-BL 2|8
| Part No. | 41242 |
| EAN | 4251269338786 |
| Package quantity | 10 |
| For max. no. of cables | 2 |
| Color | blue (similar RAL 5005) |
| Length | 21 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Clamping range | 2 x 8 - 8 mm |
KT-BL 4|2
| Part No. | 41243 |
| EAN | 4251269338793 |
| Package quantity | 10 |
| For max. no. of cables | 4 |
| Color | blue (similar RAL 5005) |
| Length | 21 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Clamping range | 4 x 2 - 2 mm |
KT-BL 4|3
| Part No. | 41244 |
| EAN | 4251269338809 |
| Package quantity | 10 |
| For max. no. of cables | 4 |
| Color | blue (similar RAL 5005) |
| Length | 21 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Clamping range | 4 x 3 - 3 mm |
KT-BL 4|4
| Part No. | 41245 |
| EAN | 4251269338816 |
| Package quantity | 10 |
| For max. no. of cables | 4 |
| Color | blue (similar RAL 5005) |
| Length | 21 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Clamping range | 4 x 4 - 4 mm |
KT-BL 4|5
| Part No. | 41246 |
| EAN | 4251269338823 |
| Package quantity | 10 |
| For max. no. of cables | 4 |
| Color | blue (similar RAL 5005) |
| Length | 21 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Clamping range | 4 x 5 - 5 mm |
KT-BL 4|6
| Part No. | 41247 |
| EAN | 4251269338830 |
| Package quantity | 10 |
| For max. no. of cables | 4 |
| Color | blue (similar RAL 5005) |
| Length | 21 mm |
| Width | 21 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
| For cable type | Round cable |
| Clamping range | 4 x 6 - 6 mm |
