KT-DPF-A gy
| Part No. | 41260 |
| EAN | 4251269306730 |
| Package quantity | 10 |
| For max. no. of cables | 1 |
| Color | gray (similar RAL 7035) |
| Length | 21 mm |
| Width | 21 mm |
| Height | 50 mm |
| Mounting height | 33 mm |
| For cable type | Round cable |
| Clamping range | 1 x 3 - 12 mm |
-
Products
»
Cable Grommets
»
KT-DPF Multi-Range Cable Grommets, Gray
KT-DPF Multi-Range Cable Grommets, Gray
in Pyramid Shape, for Cable Diameters 3-26 mm / IP54 / UL Type 12

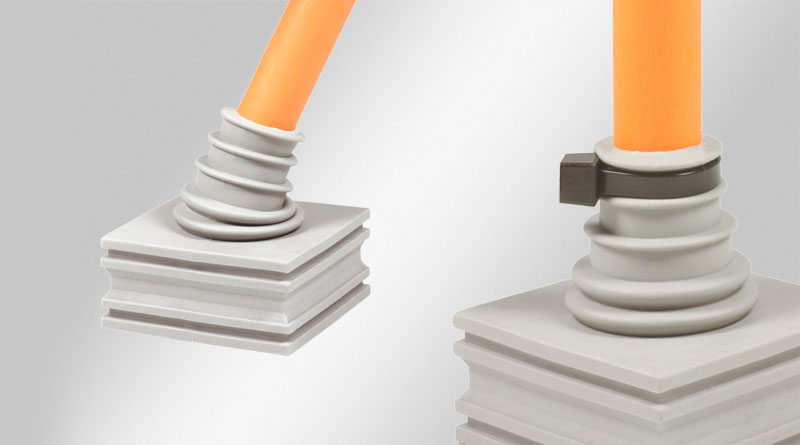

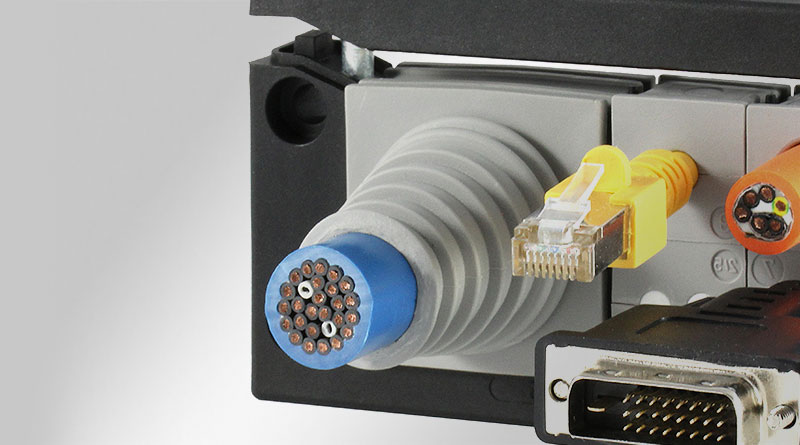

The KT-DPF grommets accept a wide range of cable diameters. A great benefit when the exact cable diameter is not known in advance. Due to the flexibility and unique pyramid shape, routing and flexible positioning of rigid cables is much easier compared to using conventional cable glands.
The KT-DPF grommets are not split and therefore only usable for cables without connectors.
Cutting of KT-DPF grommets: Cable diameter less 20%. It is recommended that additional strain relief be provided for the cables using a cable tie.
Specifications
| IP rating (EN 60529) | IP54 |
| UL Type (UL 50E) | UL Type 12 |
| Material |
Elastomer
|
| Flame class | UL94-V0, self-extinguishing |
| Operating temperature | -40 C° to 100 C° |
| Properties | silicone free, halogen free |
Advantages & Benefits
- Large clamping range of 3 to 26 mm with only 3 grommets
- Ideal for wiring non pre-terminated cables locally
- Easy storage
Product types & Sizes
KT-DPF-B gy
| Part No. | 41261 |
| EAN | 4251269306747 |
| Package quantity | 10 |
| For max. no. of cables | 1 |
| Color | gray (similar RAL 7035) |
| Length | 41.5 mm |
| Width | 42 mm |
| Height | 59 mm |
| Mounting height | 42 mm |
| For cable type | Round cable |
| Clamping range | 1 x 4 - 18 mm |
KT-DPF-C gy
| Part No. | 41262 |
| EAN | 4251269306754 |
| Package quantity | 10 |
| For max. no. of cables | 1 |
| Color | gray (similar RAL 7035) |
| Length | 41.5 mm |
| Width | 42 mm |
| Height | 59 mm |
| Mounting height | 42 mm |
| For cable type | Round cable |
| Clamping range | 1 x 14 - 26 mm |
You Haven't Found Anything Suitable Yet?
Try the ProductFinderSuitable for:
DB Distribution Box
Split 360° Multi Cable Transit, M32-M75*, IP54
With the new distribution box, centrally routed cables (with and without connectors) can be distributed 360° in all desired directions.

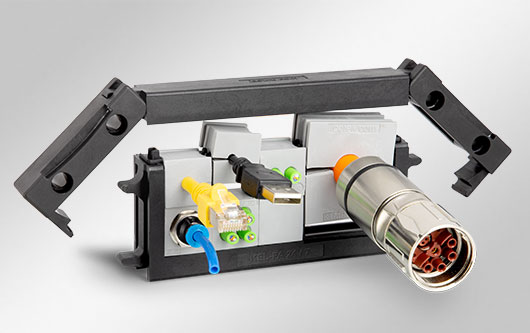

KEL-FA
Split Cable Transit for Tool-Less Assembly, UL Type 12 / IP54
KT grommet based cable entry frames for tool-less assembly. Suitable for standard cut-outs of heavy industrial connectors.
KEL-U | KEL-E
Split Cable Transit, UL Type 12 / IP54
KT grommet based cable entry frames for standard cut-outs of heavy industrial connectors. Available as single or double row version.
KEL
Centrally Split Cable Transit, UL Type 12 / IP54
Classic KT grommet based cable entry frames for standard cut-outs of heavy industrial connectors. Also available as multi-row versions.
KEL 183
Split Cable Transit for Large Diameters, UL Type 12 / IP54
KT grommet based cable entry frames for supply cables with large diameters of up to 75 mm. Available as single or double row version.
KEL-FG | KEL-FG-E
Split 90° Cable Entry Enclosure, UL Type 12 / IP54
KT grommet based flange enclosure for routing preassembled cables in a 90° angle to the enclosure wall. Available as single or double row version.

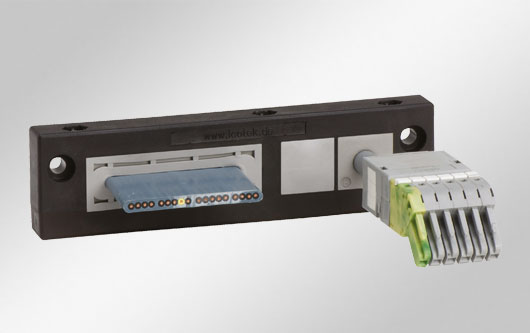

KEL-FL
Split Cable Transit for Flat Cables, IP54
KT/FT grommet based split single-row cable entry frame for flat cables as well as prefabricated round cables.
KVT
Split Cable Gland, M20-M63, UL Type 12 / IP54
KT grommet based split cable gland for preassembled cables with metric thread sizes M20 / M25 / M32 / M40 / M50 / M63.

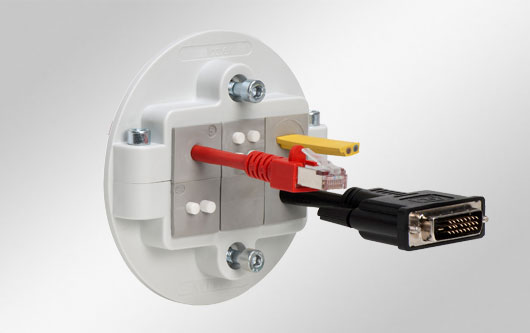

KVT 80
Split Cable Gland, M80, UL Type 12 / IP54
KT grommet based split cable gland for cables with large round connectors of up to 80 mm in diameter.
KVT-SNAP
Split Snap-In Cable Gland, M32-M63, IP54
KT grommet based split cable gland for tool-less snap-in mounting on metric cut-outs M32 / M40 / M63.

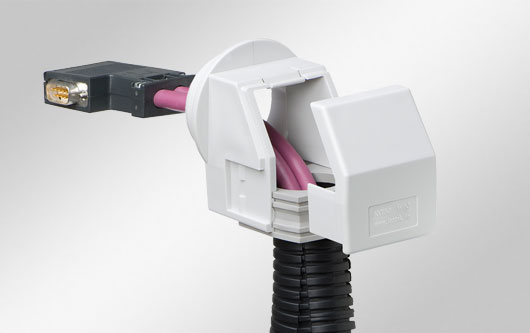

KVT-W90
