AT-PP | Adaptertulen
gebaseerd op KT groot, voor PushPull-connectoren / IP65
Voor aanvragen uit België klik hier »

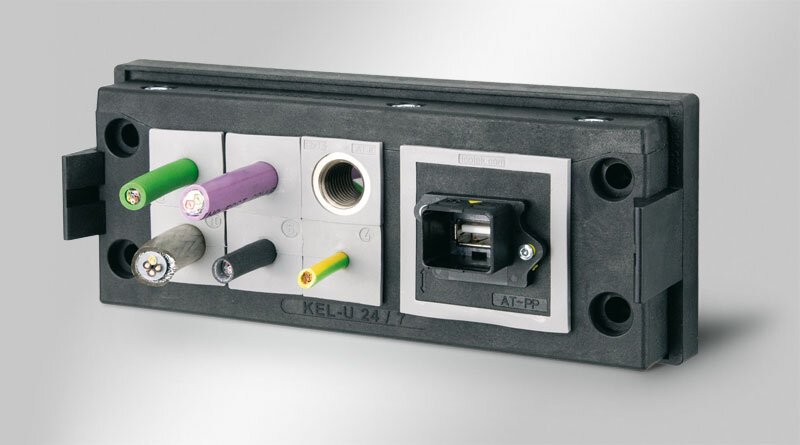

The grommet AT-PP is constructed on the basis of a large KT cable grommet. The polyamide body is moulded with elastomer.
The cut-out enables a screw assembly of all compact connector housings based on the PushPull device connection technology.
The insertion of AT-PP into an icotek cable entry frame enables the routing of cables with and without connectors in combination with the creation of interfaces for PushPull connectors within one cable entry system. Separate cut-outs for connectors are no longer necessary.
AT-PP provides ingress protection of up to IP65.
Art.nr.
39961
Specificaties
IP-classificatie
IP64, IP55, IP54, IP65
Temperatuur
-40 C° tot 90 C°
Vlam klasse
UL94-V0, zelfdovend
Materiaal
Elastomeer, Basisframe: Polyamide
Eigenschappen
halogeenvrij, zonder siliconen
Voordelen
By utilising the AT-PP grommet, connectors can be integrated directly into the cable entry frame
Aparte uitsparingen voor connectoren zijn niet meer nodig
Ruimtebesparende oplossing
Grommet is suitable for PushPull housings
Cost-saving assembly
