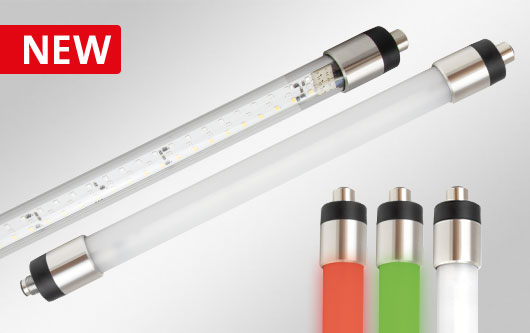

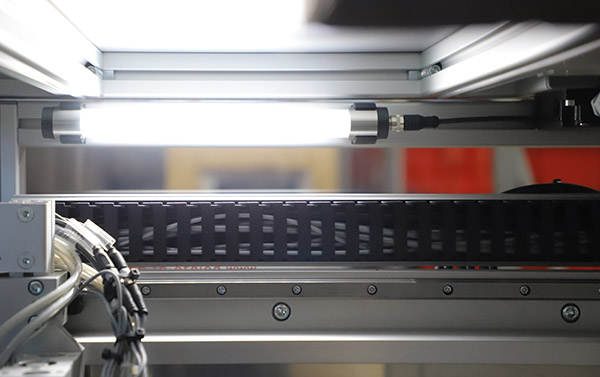

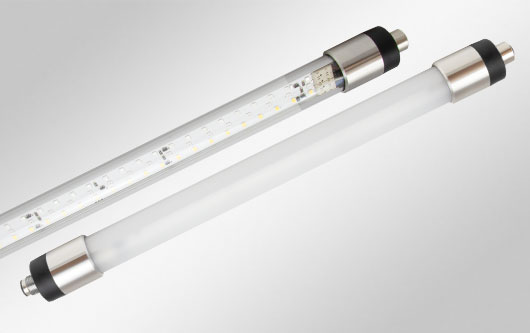

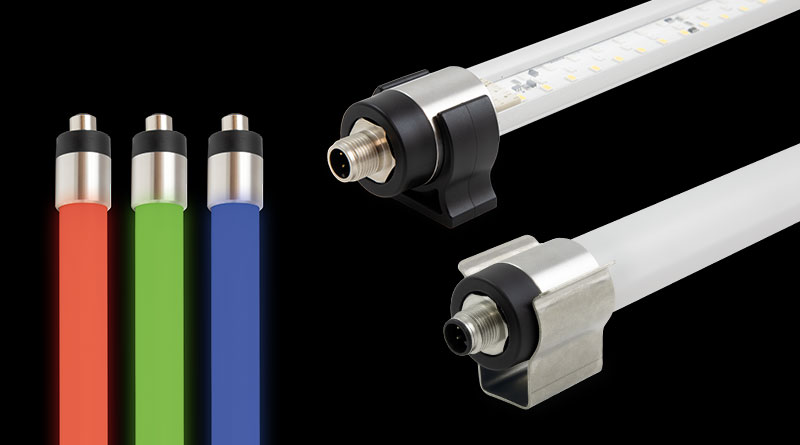

The TUBE system luminaire provides effective lighting for machinery and equipment, with M12 connectors for standardised connection.
The luminaire is easy to mount, rotates and offers a circuit-independent service life of 50,000 operating hours.
| IP rating (EN 60529) | IP67 |
| Operating temperature | -20 C° to 50 C° |
| Material | Tube: Polycarbonate End caps: Stainless steel |
| Mounting options | Snap-in |
| Part No. | 81502 |
| EAN | 4251269333132 |
| Package quantity | 1 |
| Mounting options | Snap-in |
| Length | 296.1 mm |
| Height | 36 mm |
| Width | 34 mm |
| Tube diameter | 24 mm |
| End cap diameter | 28 mm |
| Connection possibilities | M12 connector |
| Rated power | 8 W |
| Operating voltage | 24 V, DC ±5% |
| Rated current | 0,3 A |
| Service life | 50,000 h |
| Energy efficiency class | E |
| Consumption kWh/1000 h | 13 |
| Colour temperature | 5,600 K |
| Colour rendering index CRI | >80 |
| Luminous flux | 1,000 lm |
| Material tube | Polycarbonate |
| Part No. | 81500 |
| EAN | 4251269333118 |
| Package quantity | 1 |
| Mounting options | Snap-in |
| Length | 565.1 mm |
| Height | 36 mm |
| Width | 34 mm |
| Tube diameter | 24 mm |
| End cap diameter | 28 mm |
| Connection possibilities | M12 connector |
| Rated power | 13 W |
| Operating voltage | 24 V, DC ±5% |
| Rated current | 0,5 A |
| Service life | 50,000 h |
| Energy efficiency class | E |
| Consumption kWh/1000 h | 13 |
| Colour temperature | 5,600 K |
| Colour rendering index CRI | >80 |
| Luminous flux | 1,700 lm |
| Material tube | Polycarbonate |
| Part No. | 81501 |
| EAN | 4251269333125 |
| Package quantity | 1 |
| Mounting options | Snap-in |
| Length | 1,074.6 mm |
| Height | 39 mm |
| Width | 30.4 mm |
| Tube diameter | 24 mm |
| End cap diameter | 28 mm |
| Connection possibilities | M12 connector |
| Rated power | 26 W |
| Operating voltage | 24 V, DC ±5% |
| Rated current | 1,0 A |
| Service life | 50,000 h |
| Energy efficiency class | E |
| Consumption kWh/1000 h | 13 |
| Colour temperature | 5,600 K |
| Colour rendering index CRI | >80 |
| Luminous flux | 3,400 lm |
| Material tube | Polycarbonate |
| Part No. | 81530 |
| EAN | 4251269333163 |
| Package quantity | 1 |
| Mounting options | Snap-in |
| Length connecting cable | 5,000 mm |
| Operating voltage | 24 V DC ±5% |
| Colour | black |
| Material cable sheath | Polyurethane |
| Part No. | 81531 |
| EAN | 4251269333170 |
| Package quantity | 1 |
| Mounting options | Snap-in |
| Length connecting cable | 10,000 mm |
| Operating voltage | 24 V DC ±5% |
| Colour | black |
| Material cable sheath | Polyurethane |
| Part No. | 91443 |
| EAN | 4251269335082 |
| Package quantity | 2 |
| Mounting options | Snap-in |
| Length | 30 mm |
| Height | 38 mm |
| Width | 27 mm |
| Colour | black |
| No. of screw holes | 1 |
| Diam. of screw holes | 6.5 mm |
| Part No. | 91070 |
| Package quantity | 1 |
| Mounting options | Snap-in |
| Length | 18.4 mm |
| Height | 34 mm |
| Width | 34 mm |
| End cap diameter | 28 mm |
| Colour | black |
| No. of screw holes | 1 |
| Diam. of screw holes | 4.2 mm |
