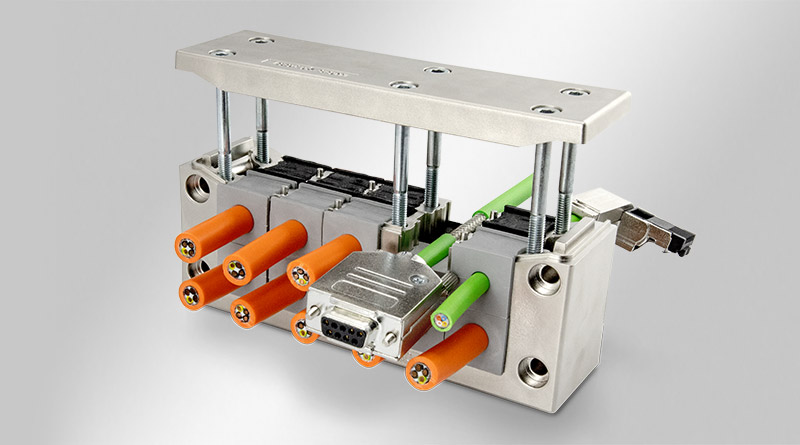

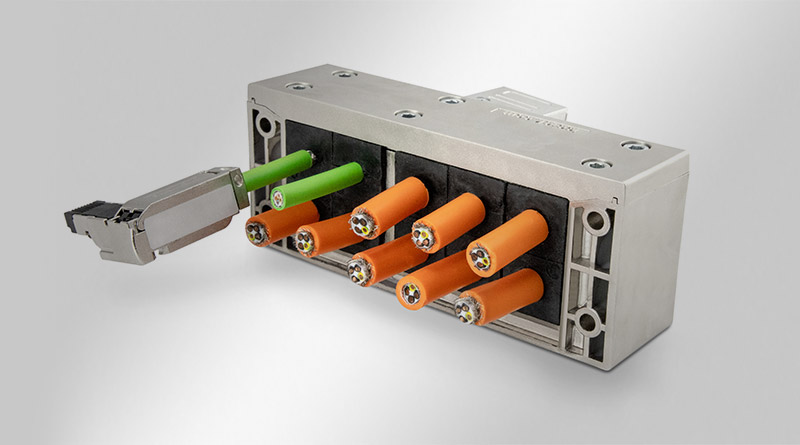

The EMC cable entry frame EMC-KEL-DS has been metallized (galvanize coated) to create a conductive surface.

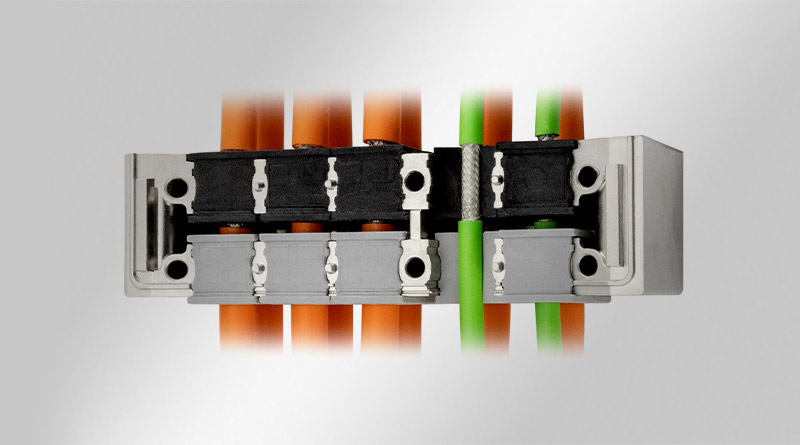

The front cable grommet (KT) is used for strain relief and cable sealing on the cable jacket. The cable shield is contacted over 360° via the rear conductive grommet (EMC-KT).
The EMC-KEL-DS frames match exactly the cut-out dimensions for 24-pin standard industrial connectors. Either a cut-out of 36 mm or 46 mm in height can be chosen depending on the cables being routed.
The contact between the EMC-KEL-DS and the conductive housing wall is realized via the included conductive flat gasket.
| IP rating (EN 60529) | IP54, IP55 |
| Material |
Polyamide, highly conductive coating
|

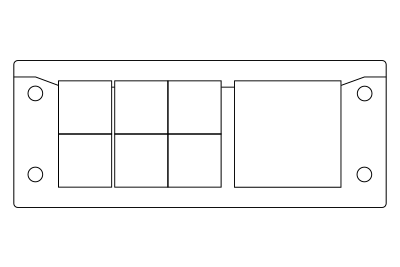

| Flame class | UL94-HB |
| Operating temperature | -40 C° to 140 C° |
| Mounting options | Screw type mounting |
| Part No. | 99410 |
| EAN | 4251269322679 |
| Package quantity | 1 |
| For max. no. of cables | 10 |
| Max. cable diameter | 17 mm |
| Length | 147 mm |
| Width | 58 mm |
| Height | 40 mm |
| Mounting height | 40 mm |
| Cut-out size | 112 × 36 mm |
| No. of screw holes | 4 |
| Diam. of screw holes | 5.8 mm |
| Screw material | Mild steel, galvanically zinc plated |
| Suitable for grommets | 10 x EMC-KT small 10 x KT small |
| Part No. | 99411 |
| EAN | 4251269322686 |
| Package quantity | 1 |
| For max. no. of cables | 7 |
| Max. cable diameter | 35 mm |
| Length | 147 mm |
| Width | 58 mm |
| Height | 40 mm |
| Mounting height | 40 mm |
| Cut-out size | 112 × 36 mm |
| No. of screw holes | 4 |
| Diam. of screw holes | 5.8 mm |
| Screw material | Mild steel, galvanically zinc plated |
| Suitable for grommets | 6 x EMC-KT small 1 x EMC-KT large |
| Part No. | 99412 |
| EAN | 4251269322693 |
| Package quantity | 1 |
| For max. no. of cables | 4 |
| Max. cable diameter | 35 mm |
| Length | 147 mm |
| Width | 58 mm |
| Height | 40 mm |
| Mounting height | 40 mm |
| Cut-out size | 112 × 36 mm |
| No. of screw holes | 4 |
| Diam. of screw holes | 5.8 mm |
| Screw material | Mild steel, galvanically zinc plated |
| Suitable for grommets | 2 x EMC-KT small 2 x EMC-KT large |
Convince yourself of the simple and
time-saving assembly of our products.
Watch the assembly video!
Always find the right size and the right cable grommets for your cable entry!
Split conductive EMC grommets for cable shield diameters from 2 to 16 mm or 13 to 33 mm.
Split cable grommets for diameters of 1 to 17 and 13 - 35 mm. Suitable for KEL cable entry frames and KVT cable glands.

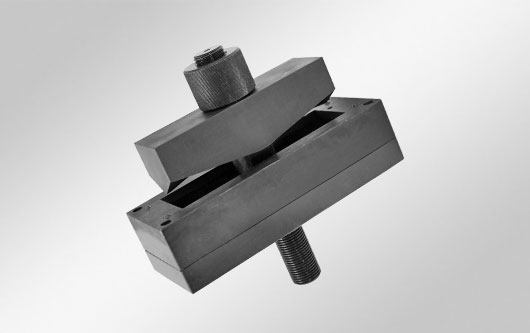

Rectangular & square knockout punches for heavy multi-pin industrial connectors and many icotek cable entry components.
Enclosure base plate for mounting of MP modular gland plates. Suitable for Rittal enclosures.
Flange plates for mounting cable entry components on compact enclosures, junction boxes or bus enclosures by Rittal and Fibox.
Rectangular & square knockout punches for heavy multi-pin industrial connectors and many icotek cable entry components.

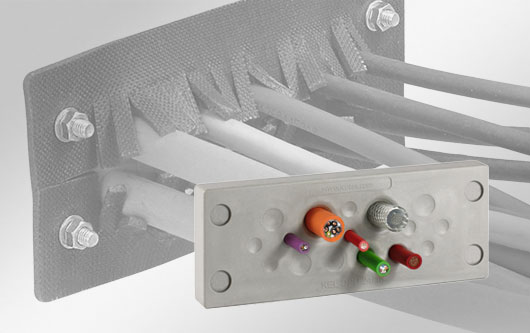

Heavy duty cable entry plate with IFPS fire penetration seals acc. to EN 45545-3.
