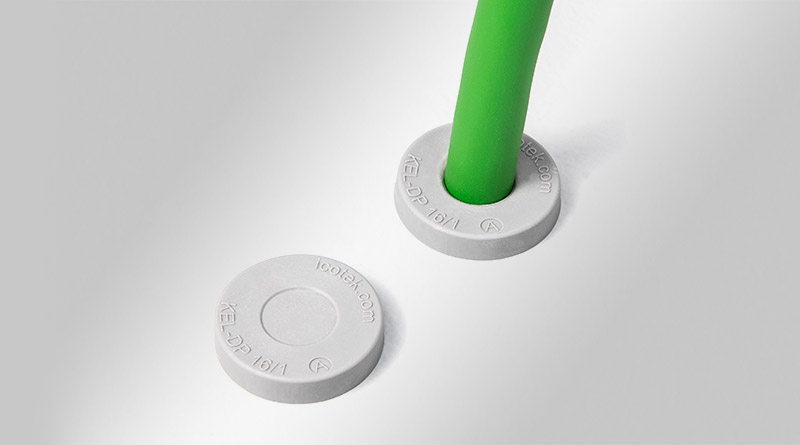

KEL-DP entry plates are designed for routing cables without connectors, hoses or fibre optics in limited space.

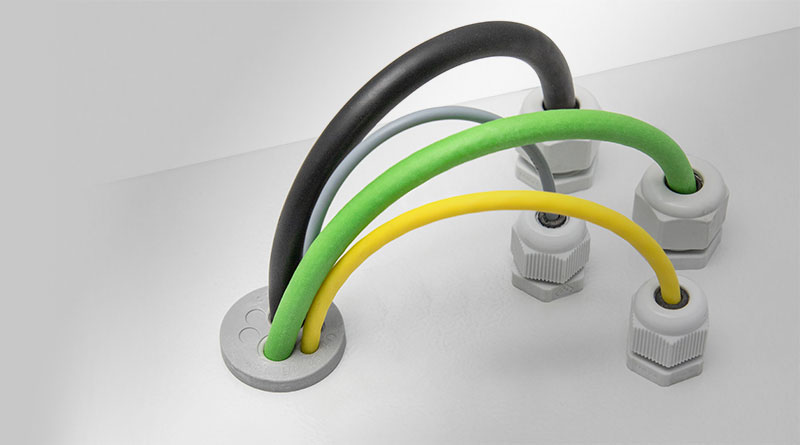

The KEL-DP products are an easy to assemble and cost saving alternative to traditional cable glands. Simply make a small hole in the thin membrane and push the cables through. The KEL-DP round provides protection IP65 / UL type 12.

The round version vo the KEL-DP fits perfectly into metric cut-outs M12 | M16 | M20 | M25 | M32 | M40 | M50. A special rib ensures a centred fit in the cut-outs.

ST-B Plugs can be used for sealing pierced membranes if cables have been removed.

Download PDF
Order your free sample!

Specifications

IP rating (EN 60529) IP54, IP55, IP64, IP65
UL Type (UL 50E) UL Type 12
Flame class UL94-V0, self-extinguishing
Operating temperature -40 C° to 100 C°
Material Elastomer

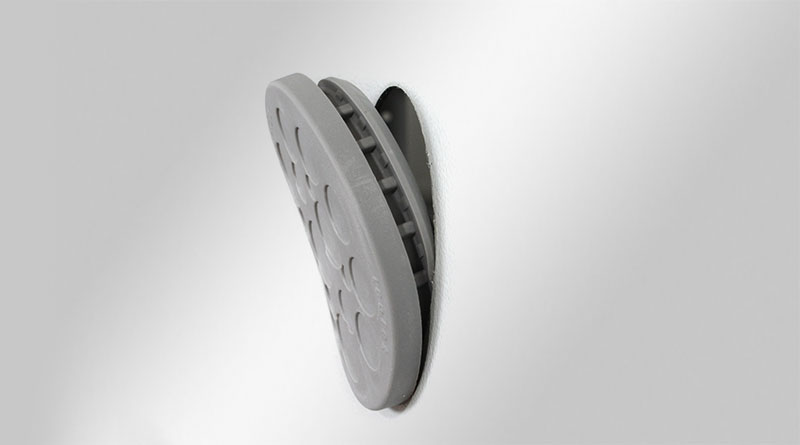

Mounting options Snap-in
Properties silicone free, halogen free

Advantages & benefits

  • Quick assembly without tools
  • High cable density
  • Cost-effective solution
  • Hygienic design - free of dirt-collecting recesses

Product types & sizes

KEL-DP 12|1 A gy round

Part No. 43603
Package quantity 10
Mounting options Snap-in
For max. no. of cables 1
Max. cable diameter 6.2 mm
Colour grey (similar RAL 7035)
Height 12 mm
Mounting height 5 mm
External diameter 19 mm
Cut-out size, round 12 mm
Cut-out size, metric M12
For min. wall thickness 1.5 mm
For max. wall thickness 2.5 mm
Clamping range 1 x 1 - 6.2 mm
available
Get a quote
Download at Cadenas Request CAD data
Data sheet

KEL-DP 16|1 A gy round

Part No. 43600
EAN 4251269329791
Package quantity 10
Mounting options Snap-in
For max. no. of cables 1
Max. cable diameter 9.2 mm
Colour grey (similar RAL 7035)
Height 12 mm
Mounting height 5 mm
External diameter 23 mm
Cut-out size, round 16 mm
Cut-out size, metric M16
For min. wall thickness 1.5 mm
For max. wall thickness 2.5 mm
Clamping range 1 x 1 - 9.2 mm
available
Get a quote
Download at Traceparts Download at Cadenas Request CAD data
Data sheet

KEL-DP 16|3 A gy round

Part No. 43601
EAN 4251269329807
Package quantity 10
Mounting options Snap-in
For max. no. of cables 3
Max. cable diameter 5.2 mm
Colour grey (similar RAL 7035)
Height 12 mm
Mounting height 5 mm
External diameter 23 mm
Cut-out size, round 16 mm
Cut-out size, metric M16
For min. wall thickness 1.5 mm
For max. wall thickness 2.5 mm
Clamping range 3 x 1 - 5.2 mm
available
Get a quote
Download at Traceparts Download at Cadenas Request CAD data
Data sheet

KEL-DP 16|7 A gy round

Part No. 43602
EAN 4251269329814
Package quantity 10
Mounting options Snap-in
For max. no. of cables 7
Max. cable diameter 3.2 mm
Colour grey (similar RAL 7035)
Height 12 mm
Mounting height 5 mm
External diameter 23 mm
Cut-out size, round 16 mm
Cut-out size, metric M16
For min. wall thickness 1.5 mm
For max. wall thickness 2.5 mm
Clamping range 7 x 1 - 3.2 mm
available
Get a quote
Download at Traceparts Download at Cadenas Request CAD data
Data sheet

KEL-DP 20|1 A gy round

Part No. 43571
EAN 4251269329784
Package quantity 10
Mounting options Snap-in
For max. no. of cables 1
Max. cable diameter 14 mm
Colour grey (similar RAL 7035)
Height 12 mm
Mounting height 5 mm
External diameter 27 mm
Cut-out size, round 20 mm
Cut-out size, metric M20
For min. wall thickness 1.5 mm
For max. wall thickness 2.5 mm
Clamping range 1 x 1 - 14 mm
available
Get a quote
Download at Traceparts Download at Cadenas Request CAD data
Data sheet

KEL-DP 20|4 A gy round

Part No. 43572
EAN 4251269320477
Package quantity 10
Mounting options Snap-in
For max. no. of cables 4
Max. cable diameter 5.2 mm
Colour grey (similar RAL 7035)
Height 12 mm
Mounting height 5 mm
External diameter 27 mm
Cut-out size, round 20 mm
Cut-out size, metric M20
For min. wall thickness 1.5 mm
For max. wall thickness 2.5 mm
Clamping range 4 x 1 - 5.2 mm
available
Get a quote
Download at Traceparts Download at Cadenas Request CAD data
Data sheet

KEL-DP 20|4-1 A gy round

Part No. 43575
EAN 4251269323911
Package quantity 10
Mounting options Snap-in
For max. no. of cables 4
Max. cable diameter 8 mm
Colour grey (similar RAL 7035)
Height 12 mm
Mounting height 5 mm
External diameter 27 mm
Cut-out size, round 20 mm
Cut-out size, metric M20
For min. wall thickness 1.5 mm
For max. wall thickness 2.5 mm
Clamping range 2 x 1 - 8 mm
2 x 1 - 4.5 mm
available
Get a quote
Download at Traceparts Download at Cadenas Request CAD data
Data sheet

KEL-DP 20|5 A gy round

Part No. 43573
EAN 4251269320484
Package quantity 10
Mounting options Snap-in
For max. no. of cables 5
Max. cable diameter 10.6 mm
Colour grey (similar RAL 7035)
Height 12 mm
Mounting height 5 mm
External diameter 27 mm
Cut-out size, round 20 mm
Cut-out size, metric M20
For min. wall thickness 1.5 mm
For max. wall thickness 2.5 mm
Clamping range 1 x 1 - 10.6 mm
2 x 1 - 4.6 mm
2 x 1 - 3.6 mm
available
Get a quote
Download at Traceparts Download at Cadenas Request CAD data
Data sheet

KEL-DP 20|9 A gy round

Part No. 43574
EAN 4251269320491
Package quantity 10
Mounting options Snap-in
For max. no. of cables 9
Max. cable diameter 4.6 mm
Colour grey (similar RAL 7035)
Height 12 mm
Mounting height 5 mm
External diameter 27 mm
Cut-out size, round 20 mm
Cut-out size, metric M20
For min. wall thickness 1.5 mm
For max. wall thickness 2.5 mm
Clamping range 5 x 1 - 4.6 mm
4 x 1 - 3.6 mm
available
Get a quote
Download at Traceparts Download at Cadenas Request CAD data
Data sheet

KEL-DP 25|4 A gy round

Part No. 43533
EAN 4251269310027
Package quantity 10
Mounting options Snap-in
For max. no. of cables 4
Max. cable diameter 8 mm
Colour grey (similar RAL 7035)
Height 12 mm
Mounting height 5 mm
External diameter 32 mm
Cut-out size, round 25 mm
Cut-out size, metric M25
For min. wall thickness 1.5 mm
For max. wall thickness 2.5 mm
Clamping range 4 x 1 - 8 mm
available
Get a quote
Download at Traceparts Download at Cadenas Request CAD data
Data sheet

KEL-DP 25|4 B gy round

Part No. 50536
EAN 4251269333248
Package quantity 10
Mounting options Snap-in
For max. no. of cables 4
Max. cable diameter 8 mm
Colour grey (similar RAL 7035)
Height 12 mm
Mounting height 5 mm
External diameter 32 mm
Cut-out size, round 25 mm
Cut-out size, metric M25
For min. wall thickness 2.8 mm
For max. wall thickness 4 mm
Clamping range 4 x 1 - 8 mm
available
Get a quote
Request CAD data
Data sheet

KEL-DP 25|4 A bk round

Part No. 50533
EAN 4251269314803
Package quantity 10
Mounting options Snap-in
For max. no. of cables 4
Max. cable diameter 8 mm
Colour black
Height 12 mm
Mounting height 5 mm
External diameter 32 mm
Cut-out size, round 25 mm
Cut-out size, metric M25
For min. wall thickness 1.5 mm
For max. wall thickness 2.5 mm
Clamping range 4 x 1 - 8 mm
available
Get a quote
Download at Traceparts Download at Cadenas Request CAD data
Data sheet

KEL-DP 25|4 B bk round

Part No. 43535
EAN 4251269324079
Package quantity 10
Mounting options Snap-in
For max. no. of cables 4
Max. cable diameter 8 mm
Colour black
Height 12 mm
Mounting height 5 mm
External diameter 32 mm
Cut-out size, round 25 mm
Cut-out size, metric M25
For min. wall thickness 2.8 mm
For max. wall thickness 4 mm
Clamping range 4 x 1 - 8 mm
available
Get a quote
Download at Traceparts Download at Cadenas Request CAD data
Data sheet

KEL-DP 25|6 A gy round

Part No. 43531
EAN 4251269310003
Package quantity 10
Mounting options Snap-in
For max. no. of cables 6
Max. cable diameter 9.4 mm
Colour grey (similar RAL 7035)
Height 12 mm
Mounting height 5 mm
External diameter 32 mm
Cut-out size, round 25 mm
Cut-out size, metric M25
For min. wall thickness 1.5 mm
For max. wall thickness 2.5 mm
Clamping range 4 x 1 - 5.2 mm
2 x 1 - 9.4 mm
available
Get a quote
Download at Traceparts Download at Cadenas Request CAD data
Data sheet

KEL-DP 25|6 A bk round

Part No. 50531
EAN 4251269314780
Package quantity 10
Mounting options Snap-in
For max. no. of cables 6
Max. cable diameter 9.4 mm
Colour black
Height 12 mm
Mounting height 5 mm
External diameter 32 mm
Cut-out size, round 25 mm
Cut-out size, metric M25
For min. wall thickness 1.5 mm
For max. wall thickness 2.5 mm
Clamping range 4 x 1 - 5.2 mm
2 x 1 - 9.4 mm
available
Get a quote
Download at Traceparts Download at Cadenas Request CAD data
Data sheet

KEL-DP 25|7 A gy round

Part No. 43534
EAN 4251269322563
Package quantity 10
Mounting options Snap-in
For max. no. of cables 7
Max. cable diameter 5.2 mm
Colour grey (similar RAL 7035)
Height 12 mm
Mounting height 5 mm
External diameter 32 mm
Cut-out size, round 25 mm
Cut-out size, metric M25
For min. wall thickness 1.5 mm
For max. wall thickness 2.5 mm
Clamping range 7 x 1 - 5.2 mm
available
Get a quote
Download at Traceparts Download at Cadenas Request CAD data
Data sheet

KEL-DP 32|7 A gy round

Part No. 43592
EAN 4251269322488
Package quantity 10
Mounting options Snap-in
For max. no. of cables 7
Max. cable diameter 8 mm
Colour grey (similar RAL 7035)
Height 12 mm
Mounting height 5 mm
External diameter 38 mm
Cut-out size, round 32 mm
Cut-out size, metric M32
For min. wall thickness 1.5 mm
For max. wall thickness 2.5 mm
Clamping range 7 x 1 - 8 mm
available
Get a quote
Download at Traceparts Download at Cadenas Request CAD data
Data sheet

KEL-DP 32|7 B gy round

Part No. 43596
EAN 4251269322525
Package quantity 10
Mounting options Snap-in
For max. no. of cables 7
Max. cable diameter 8 mm
Colour grey (similar RAL 7035)
Height 12 mm
Mounting height 5 mm
External diameter 38 mm
Cut-out size, round 32 mm
Cut-out size, metric M32
For min. wall thickness 2.8 mm
For max. wall thickness 4 mm
Clamping range 7 x 1 - 8 mm
available
Get a quote
Download at Traceparts Download at Cadenas Request CAD data
Data sheet

KEL-DP 32|10 A gy round

Part No. 43532
EAN 4251269310010
Package quantity 10
Mounting options Snap-in
For max. no. of cables 10
Max. cable diameter 9.4 mm
Colour grey (similar RAL 7035)
Height 12 mm
Mounting height 5 mm
External diameter 38 mm
Cut-out size, round 32 mm
Cut-out size, metric M32
For min. wall thickness 1.5 mm
For max. wall thickness 2.5 mm
Clamping range 6 x 1 - 5.2 mm
2 x 1 - 6.4 mm
2 x 1 - 9.4 mm
available
Get a quote
Download at Traceparts Download at Cadenas Request CAD data
Data sheet

KEL-DP 32|10 B gy round

Part No. 43560
EAN 4251269310133
Package quantity 10
Mounting options Snap-in
For max. no. of cables 10
Max. cable diameter 9.4 mm
Colour grey (similar RAL 7035)
Height 12 mm
Mounting height 5 mm
External diameter 38 mm
Cut-out size, round 32 mm
Cut-out size, metric M32
For min. wall thickness 2.8 mm
For max. wall thickness 4 mm
Clamping range 6 x 1 - 5.2 mm
2 x 1 - 6.4 mm
2 x 1 - 9.4 mm
available
Get a quote
Download at Traceparts Download at Cadenas Request CAD data
Data sheet

KEL-DP 32|10 A bk round

Part No. 50532
EAN 4251269314797
Package quantity 10
Mounting options Snap-in
For max. no. of cables 10
Max. cable diameter 9.4 mm
Colour black
Height 12 mm
Mounting height 5 mm
External diameter 38 mm
Cut-out size, round 32 mm
Cut-out size, metric M32
For min. wall thickness 1.5 mm
For max. wall thickness 2.5 mm
Clamping range 6 x 1 - 5.2 mm
2 x 1 - 6.4 mm
2 x 1 - 9.4 mm
available
Get a quote
Download at Traceparts Download at Cadenas Request CAD data
Data sheet

KEL-DP 32|10 B bk round

Part No. 50560
EAN 4251269314889
Package quantity 10
Mounting options Snap-in
For max. no. of cables 10
Max. cable diameter 9.4 mm
Colour black
Height 12 mm
Mounting height 5 mm
External diameter 38 mm
Cut-out size, round 32 mm
Cut-out size, metric M32
For min. wall thickness 2.8 mm
For max. wall thickness 4 mm
Clamping range 6 x 1 - 5.2 mm
2 x 1 - 6.4 mm
2 x 1 - 9.4 mm
available
Get a quote
Download at Traceparts Download at Cadenas Request CAD data
Data sheet

KEL-DP 32|10-2 A gy round

Part No. 43593
EAN 4251269322495
Package quantity 10
Mounting options Snap-in
For max. no. of cables 10
Max. cable diameter 6.4 mm
Colour grey (similar RAL 7035)
Height 12 mm
Mounting height 5 mm
External diameter 38 mm
Cut-out size, round 32 mm
Cut-out size, metric M32
For min. wall thickness 1.5 mm
For max. wall thickness 2.5 mm
Clamping range 10 x 1 - 6.4 mm
available
Get a quote
Download at Traceparts Download at Cadenas Request CAD data
Data sheet

KEL-DP 32|10-2 B gy round

Part No. 43597
EAN 4251269322532
Package quantity 10
Mounting options Snap-in
For max. no. of cables 10
Max. cable diameter 6.4 mm
Colour grey (similar RAL 7035)
Height 12 mm
Mounting height 5 mm
External diameter 38 mm
Cut-out size, round 32 mm
Cut-out size, metric M32
For min. wall thickness 2.8 mm
For max. wall thickness 4 mm
Clamping range 10 x 1 - 6.4 mm
available
Get a quote
Download at Traceparts Download at Cadenas Request CAD data
Data sheet

KEL-DP 32|11 A gy round

Part No. 43594
EAN 4251269322501
Package quantity 10
Mounting options Snap-in
For max. no. of cables 11
Max. cable diameter 8 mm
Colour grey (similar RAL 7035)
Height 12 mm
Mounting height 5 mm
External diameter 38 mm
Cut-out size, round 32 mm
Cut-out size, metric M32
For min. wall thickness 1.5 mm
For max. wall thickness 2.5 mm
Clamping range 2 x 1 - 8 mm
9 x 1 - 5.2 mm
available
Get a quote
Download at Traceparts Download at Cadenas Request CAD data
Data sheet

KEL-DP 32|11 B gy round

Part No. 43598
EAN 4251269322549
Package quantity 10
Mounting options Snap-in
For max. no. of cables 11
Max. cable diameter 8 mm
Colour grey (similar RAL 7035)
Height 12 mm
Mounting height 5 mm
External diameter 38 mm
Cut-out size, round 32 mm
Cut-out size, metric M32
For min. wall thickness 2.8 mm
For max. wall thickness 4 mm
Clamping range 2 x 1 - 8 mm
9 x 1 - 5.2 mm
available
Get a quote
Download at Traceparts Download at Cadenas Request CAD data
Data sheet

KEL-DP 32|13 A gy round

Part No. 43595
EAN 4251269322518
Package quantity 10
Mounting options Snap-in
For max. no. of cables 13
Max. cable diameter 5.2 mm
Colour grey (similar RAL 7035)
Height 12 mm
Mounting height 5 mm
External diameter 38 mm
Cut-out size, round 32 mm
Cut-out size, metric M32
For min. wall thickness 1.5 mm
For max. wall thickness 2.5 mm
Clamping range 13 x 1 - 5.2 mm
available
Get a quote
Download at Traceparts Download at Cadenas Request CAD data
Data sheet

KEL-DP 32|13 B gy round

Part No. 43599
EAN 4251269322556
Package quantity 10
Mounting options Snap-in
For max. no. of cables 13
Max. cable diameter 5.2 mm
Colour grey (similar RAL 7035)
Height 12 mm
Mounting height 5 mm
External diameter 38 mm
Cut-out size, round 32 mm
Cut-out size, metric M32
For min. wall thickness 2.8 mm
For max. wall thickness 4 mm
Clamping range 13 x 1 - 5.2 mm
available
Get a quote
Download at Traceparts Download at Cadenas Request CAD data
Data sheet

KEL-DP 40|9 A gy round

Part No. 43536
EAN 4251269310034
Package quantity 10
Mounting options Snap-in
For max. no. of cables 9
Max. cable diameter 11.3 mm
Colour grey (similar RAL 7035)
Height 12 mm
Mounting height 5 mm
External diameter 50 mm
Cut-out size, round 40 mm
Cut-out size, metric M40
For min. wall thickness 1.5 mm
For max. wall thickness 2.5 mm
Clamping range 8 x 1 - 9.5 mm
1 x 1 - 11.3 mm
available
Get a quote
Download at Traceparts Download at Cadenas Request CAD data
Data sheet

KEL-DP 40|9 B gy round

Part No. 43561
EAN 4251269310140
Package quantity 10
Mounting options Snap-in
For max. no. of cables 9
Max. cable diameter 11.3 mm
Colour grey (similar RAL 7035)
Height 12 mm
Mounting height 5 mm
External diameter 50 mm
Cut-out size, round 40 mm
Cut-out size, metric M40
For min. wall thickness 2.8 mm
For max. wall thickness 4 mm
Clamping range 8 x 1 - 9.5 mm
1 x 1 - 11.3 mm
available
Get a quote
Download at Traceparts Download at Cadenas Request CAD data
Data sheet

KEL-DP 40|16 A gy round

Part No. 43537
EAN 4251269310041
Package quantity 10
Mounting options Snap-in
For max. no. of cables 16
Max. cable diameter 11.3 mm
Colour grey (similar RAL 7035)
Height 12 mm
Mounting height 5 mm
External diameter 50 mm
Cut-out size, round 40 mm
Cut-out size, metric M40
For min. wall thickness 1.5 mm
For max. wall thickness 2.5 mm
Clamping range 2 x 1 - 5.3 mm
10 x 1 - 6.3 mm
2 x 1 - 9.5 mm
2 x 1 - 11.3 mm
available
Get a quote
Download at Traceparts Download at Cadenas Request CAD data
Data sheet

KEL-DP 40|16 B gy round

Part No. 43563
EAN 4251269310164
Package quantity 10
Mounting options Snap-in
For max. no. of cables 16
Max. cable diameter 11.3 mm
Colour grey (similar RAL 7035)
Height 12 mm
Mounting height 5 mm
External diameter 50 mm
Cut-out size, round 40 mm
Cut-out size, metric M40
For min. wall thickness 2.8 mm
For max. wall thickness 4 mm
Clamping range 2 x 1 - 5.3 mm
10 x 1 - 6.3 mm
2 x 1 - 9.5 mm
2 x 1 - 11.3 mm
available
Get a quote
Download at Traceparts Download at Cadenas Request CAD data
Data sheet

KEL-DP 40|17 A gy round

Part No. 43538
EAN 4251269310058
Package quantity 10
Mounting options Snap-in
For max. no. of cables 17
Max. cable diameter 7.2 mm
Colour grey (similar RAL 7035)
Height 12 mm
Mounting height 5 mm
External diameter 50 mm
Cut-out size, round 40 mm
Cut-out size, metric M40
For min. wall thickness 1.5 mm
For max. wall thickness 2.5 mm
Clamping range 1 x 1 - 4 mm
16 x 1 - 7.2 mm
available
Get a quote
Download at Traceparts Download at Cadenas Request CAD data
Data sheet

KEL-DP 40|17 B gy round

Part No. 43565
EAN 4251269310188
Package quantity 10
Mounting options Snap-in
For max. no. of cables 17
Max. cable diameter 7.2 mm
Colour grey (similar RAL 7035)
Height 12 mm
Mounting height 5 mm
External diameter 50 mm
Cut-out size, round 40 mm
Cut-out size, metric M40
For min. wall thickness 2.8 mm
For max. wall thickness 4 mm
Clamping range 1 x 1 - 4 mm
16 x 1 - 7.2 mm
available
Get a quote
Download at Traceparts Download at Cadenas Request CAD data
Data sheet

KEL-DP 50|9 A gy round

Part No. 43554
EAN 4251269310102
Package quantity 10
Mounting options Snap-in
For max. no. of cables 9
Max. cable diameter 18 mm
Colour grey (similar RAL 7035)
Height 12 mm
Mounting height 5 mm
External diameter 60 mm
Cut-out size, round 50 mm
Cut-out size, metric M50
For min. wall thickness 1.5 mm
For max. wall thickness 2.5 mm
Clamping range 5 x 1 - 7 mm
4 x 1 - 18 mm
available
Get a quote
Download at Traceparts Download at Cadenas Request CAD data
Data sheet

KEL-DP 50|9 B gy round

Part No. 43568
EAN 4251269310218
Package quantity 10
Mounting options Snap-in
For max. no. of cables 9
Max. cable diameter 18 mm
Colour grey (similar RAL 7035)
Height 12 mm
Mounting height 5 mm
External diameter 60 mm
Cut-out size, round 50 mm
Cut-out size, metric M50
For min. wall thickness 2.8 mm
For max. wall thickness 4 mm
Clamping range 5 x 1 - 7 mm
4 x 1 - 18 mm
available
Get a quote
Download at Traceparts Download at Cadenas Request CAD data
Data sheet

KEL-DP 50|9 A bk round

Part No. 50554
EAN 4251269314858
Package quantity 10
Mounting options Snap-in
For max. no. of cables 9
Max. cable diameter 18 mm
Colour black
Height 12 mm
Mounting height 5 mm
External diameter 60 mm
Cut-out size, round 50 mm
Cut-out size, metric M50
For min. wall thickness 1.5 mm
For max. wall thickness 2.5 mm
Clamping range 5 x 1 - 7 mm
4 x 1 - 18 mm
available
Get a quote
Download at Traceparts Download at Cadenas Request CAD data
Data sheet

KEL-DP 50|9 B bk round

Part No. 50568
EAN 4251269314933
Package quantity 10
Mounting options Snap-in
For max. no. of cables 9
Max. cable diameter 18 mm
Colour black
Height 12 mm
Mounting height 5 mm
External diameter 60 mm
Cut-out size, round 50 mm
Cut-out size, metric M50
For min. wall thickness 2.8 mm
For max. wall thickness 4 mm
Clamping range 5 x 1 - 7 mm
4 x 1 - 18 mm
available
Get a quote
Download at Traceparts Download at Cadenas Request CAD data
Data sheet

KEL-DP 50|11 A gy round

Part No. 43555
EAN 4251269310119
Package quantity 10
Mounting options Snap-in
For max. no. of cables 11
Max. cable diameter 22.5 mm
Colour grey (similar RAL 7035)
Height 12 mm
Mounting height 5 mm
External diameter 60 mm
Cut-out size, round 50 mm
Cut-out size, metric M50
For min. wall thickness 1.5 mm
For max. wall thickness 2.5 mm
Clamping range 7 x 1 - 7.2 mm
3 x 1 - 11.2 mm
1 x 1 - 22.5 mm
available
Get a quote
Download at Traceparts Download at Cadenas Request CAD data
Data sheet

KEL-DP 50|11 B gy round

Part No. 43569
EAN 4251269310225
Package quantity 10
Mounting options Snap-in
For max. no. of cables 11
Max. cable diameter 22.5 mm
Colour grey (similar RAL 7035)
Height 12 mm
Mounting height 5 mm
External diameter 60 mm
Cut-out size, round 50 mm
Cut-out size, metric M50
For min. wall thickness 2.8 mm
For max. wall thickness 4 mm
Clamping range 7 x 1 - 7.2 mm
3 x 1 - 11.2 mm
1 x 1 - 22.5 mm
available
Get a quote
Download at Traceparts Download at Cadenas Request CAD data
Data sheet

KEL-DP 50|11 A bk round

Part No. 50555
EAN 4251269314865
Package quantity 10
Mounting options Snap-in
For max. no. of cables 11
Max. cable diameter 22.5 mm
Colour black
Height 12 mm
Mounting height 5 mm
External diameter 60 mm
Cut-out size, round 50 mm
Cut-out size, metric M50
For min. wall thickness 1.5 mm
For max. wall thickness 2.5 mm
Clamping range 7 x 1 - 7.2 mm
3 x 1 - 11.2 mm
1 x 1 - 22.5 mm
available
Get a quote
Download at Traceparts Download at Cadenas Request CAD data
Data sheet

KEL-DP 50|11 B bk round

Part No. 50569
EAN 4251269314940
Package quantity 10
Mounting options Snap-in
For max. no. of cables 11
Max. cable diameter 22.5 mm
Colour black
Height 12 mm
Mounting height 5 mm
External diameter 60 mm
Cut-out size, round 50 mm
Cut-out size, metric M50
For min. wall thickness 2.8 mm
For max. wall thickness 4 mm
Clamping range 7 x 1 - 7.2 mm
3 x 1 - 11.2 mm
1 x 1 - 22.5 mm
available
Get a quote
Download at Traceparts Download at Cadenas Request CAD data
Data sheet

KEL-DP 50|12 A gy round

Part No. 43551
EAN 4251269310072
Package quantity 10
Mounting options Snap-in
For max. no. of cables 12
Max. cable diameter 11.2 mm
Colour grey (similar RAL 7035)
Height 12 mm
Mounting height 5 mm
External diameter 60 mm
Cut-out size, round 50 mm
Cut-out size, metric M50
For min. wall thickness 1.5 mm
For max. wall thickness 2.5 mm
Clamping range 10 x 1 - 9.2 mm
2 x 1 - 11.2 mm
available
Get a quote
Download at Traceparts Download at Cadenas Request CAD data
Data sheet

KEL-DP 50|12 B gy round

Part No. 43562
EAN 4251269310157
Package quantity 10
Mounting options Snap-in
For max. no. of cables 12
Max. cable diameter 11.2 mm
Colour grey (similar RAL 7035)
Height 12 mm
Mounting height 5 mm
External diameter 60 mm
Cut-out size, round 50 mm
Cut-out size, metric M50
For min. wall thickness 2.8 mm
For max. wall thickness 4 mm
Clamping range 10 x 1 - 9.2 mm
2 x 1 - 11.2 mm
available
Get a quote
Download at Traceparts Download at Cadenas Request CAD data
Data sheet

KEL-DP 50|12 A bk round

Part No. 50551
EAN 4251269314827
Package quantity 10
Mounting options Snap-in
For max. no. of cables 12
Max. cable diameter 11.2 mm
Colour black
Height 12 mm
Mounting height 5 mm
External diameter 60 mm
Cut-out size, round 50 mm
Cut-out size, metric M50
For min. wall thickness 1.5 mm
For max. wall thickness 2.5 mm
Clamping range 10 x 1 - 9.2 mm
2 x 1 - 11.2 mm
available
Get a quote
Download at Traceparts Download at Cadenas Request CAD data
Data sheet

KEL-DP 50|12 B bk round

Part No. 50562
EAN 4251269314896
Package quantity 10
Mounting options Snap-in
For max. no. of cables 12
Max. cable diameter 11.2 mm
Colour black
Height 12 mm
Mounting height 5 mm
External diameter 60 mm
Cut-out size, round 50 mm
Cut-out size, metric M50
For min. wall thickness 2.8 mm
For max. wall thickness 4 mm
Clamping range 10 x 1 - 9.2 mm
2 x 1 - 11.2 mm
available
Get a quote
Download at Traceparts Download at Cadenas Request CAD data
Data sheet

KEL-DP 50|16 A gy round

Part No. 43550
EAN 4251269310065
Package quantity 10
Mounting options Snap-in
For max. no. of cables 16
Max. cable diameter 11.3 mm
Colour grey (similar RAL 7035)
Height 12 mm
Mounting height 5 mm
External diameter 60 mm
Cut-out size, round 50 mm
Cut-out size, metric M50
For min. wall thickness 1.5 mm
For max. wall thickness 2.5 mm
Clamping range 4 x 1 - 5.3 mm
5 x 1 - 6.3 mm
3 x 1 - 9.5 mm
4 x 1 - 11.3 mm
available
Get a quote
Download at Traceparts Download at Cadenas Request CAD data
Data sheet

KEL-DP 50|16 B gy round

Part No. 43564
EAN 4251269310171
Package quantity 10
Mounting options Snap-in
For max. no. of cables 16
Max. cable diameter 11.3 mm
Colour grey (similar RAL 7035)
Height 12 mm
Mounting height 5 mm
External diameter 60 mm
Cut-out size, round 50 mm
Cut-out size, metric M50
For min. wall thickness 2.8 mm
For max. wall thickness 4 mm
Clamping range 4 x 1 - 5.3 mm
5 x 1 - 6.3 mm
3 x 1 - 9.5 mm
4 x 1 - 11.3 mm
available
Get a quote
Download at Traceparts Download at Cadenas Request CAD data
Data sheet

KEL-DP 50|16 A bk round

Part No. 50550
EAN 4251269314810
Package quantity 10
Mounting options Snap-in
For max. no. of cables 16
Max. cable diameter 11.3 mm
Colour black
Height 12 mm
Mounting height 5 mm
External diameter 60 mm
Cut-out size, round 50 mm
Cut-out size, metric M50
For min. wall thickness 1.5 mm
For max. wall thickness 2.5 mm
Clamping range 4 x 1 - 5.3 mm
5 x 1 - 6.3 mm
3 x 1 - 9.5 mm
4 x 1 - 11.3 mm
available
Get a quote
Download at Traceparts Download at Cadenas Request CAD data
Data sheet

KEL-DP 50|16 B bk round

Part No. 50564
EAN 4251269314902
Package quantity 10
Mounting options Snap-in
For max. no. of cables 16
Max. cable diameter 11.3 mm
Colour black
Height 12 mm
Mounting height 5 mm
External diameter 60 mm
Cut-out size, round 50 mm
Cut-out size, metric M50
For min. wall thickness 2.8 mm
For max. wall thickness 4 mm
Clamping range 4 x 1 - 5.3 mm
5 x 1 - 6.3 mm
3 x 1 - 9.5 mm
4 x 1 - 11.3 mm
available
Get a quote
Download at Traceparts Download at Cadenas Request CAD data
Data sheet

KEL-DP 50|18 A gy round

Part No. 43553
EAN 4251269310096
Package quantity 10
Mounting options Snap-in
For max. no. of cables 18
Max. cable diameter 12 mm
Colour grey (similar RAL 7035)
Height 12 mm
Mounting height 5 mm
External diameter 60 mm
Cut-out size, round 50 mm
Cut-out size, metric M50
For min. wall thickness 1.5 mm
For max. wall thickness 2.5 mm
Clamping range 2 x 1 - 4 mm
2 x 1 - 6 mm
4 x 1 - 7.2 mm
5 x 1 - 9.4 mm
5 x 1 - 12 mm
available
Get a quote
Download at Traceparts Download at Cadenas Request CAD data
Data sheet

KEL-DP 50|18 B gy round

Part No. 43567
EAN 4251269310201
Package quantity 10
Mounting options Snap-in
For max. no. of cables 18
Max. cable diameter 12 mm
Colour grey (similar RAL 7035)
Height 12 mm
Mounting height 5 mm
External diameter 60 mm
Cut-out size, round 50 mm
Cut-out size, metric M50
For min. wall thickness 2.8 mm
For max. wall thickness 4 mm
Clamping range 2 x 1 - 4 mm
2 x 1 - 6 mm
4 x 1 - 7.2 mm
5 x 1 - 9.4 mm
5 x 1 - 12 mm
available
Get a quote
Download at Traceparts Download at Cadenas Request CAD data
Data sheet

KEL-DP 50|18 A bk round

Part No. 50553
EAN 4251269314841
Package quantity 10
Mounting options Snap-in
For max. no. of cables 18
Max. cable diameter 12 mm
Colour black
Height 12 mm
Mounting height 5 mm
External diameter 60 mm
Cut-out size, round 50 mm
Cut-out size, metric M50
For min. wall thickness 1.5 mm
For max. wall thickness 2.5 mm
Clamping range 2 x 1 - 4 mm
2 x 1 - 6 mm
4 x 1 - 7.2 mm
5 x 1 - 9.4 mm
5 x 1 - 12 mm
available
Get a quote
Download at Traceparts Download at Cadenas Request CAD data
Data sheet

KEL-DP 50|18 B bk round

Part No. 50567
EAN 4251269314926
Package quantity 10
Mounting options Snap-in
For max. no. of cables 18
Max. cable diameter 12 mm
Colour black
Height 12 mm
Mounting height 5 mm
External diameter 60 mm
Cut-out size, round 50 mm
Cut-out size, metric M50
For min. wall thickness 2.8 mm
For max. wall thickness 4 mm
Clamping range 2 x 1 - 4 mm
2 x 1 - 6 mm
4 x 1 - 7.2 mm
5 x 1 - 9.4 mm
5 x 1 - 12 mm
available
Get a quote
Download at Traceparts Download at Cadenas Request CAD data
Data sheet

KEL-DP 50|20 A gy round

Part No. 43552
EAN 4251269310089
Package quantity 10
Mounting options Snap-in
For max. no. of cables 20
Max. cable diameter 9.3 mm
Colour grey (similar RAL 7035)
Height 12 mm
Mounting height 5 mm
External diameter 60 mm
Cut-out size, round 50 mm
Cut-out size, metric M50
For min. wall thickness 1.5 mm
For max. wall thickness 2.5 mm
Clamping range 16 x 1 - 6.3 mm
4 x 1 - 9.3 mm
available
Get a quote
Download at Traceparts Download at Cadenas Request CAD data
Data sheet

KEL-DP 50|20 B gy round

Part No. 43566
EAN 4251269310195
Package quantity 10
Mounting options Snap-in
For max. no. of cables 20
Max. cable diameter 9.3 mm
Colour grey (similar RAL 7035)
Height 12 mm
Mounting height 5 mm
External diameter 60 mm
Cut-out size, round 50 mm
Cut-out size, metric M50
For min. wall thickness 2.8 mm
For max. wall thickness 4 mm
Clamping range 16 x 1 - 6.3 mm
4 x 1 - 9.3 mm
available
Get a quote
Download at Traceparts Download at Cadenas Request CAD data
Data sheet

KEL-DP 50|20 A bk round

Part No. 50552
EAN 4251269314834
Package quantity 10
Mounting options Snap-in
For max. no. of cables 20
Max. cable diameter 9.3 mm
Colour black
Height 12 mm
Mounting height 5 mm
External diameter 60 mm
Cut-out size, round 50 mm
Cut-out size, metric M50
For min. wall thickness 1.5 mm
For max. wall thickness 2.5 mm
Clamping range 16 x 1 - 6.3 mm
4 x 1 - 9.3 mm
available
Get a quote
Download at Traceparts Download at Cadenas Request CAD data
Data sheet

KEL-DP 50|20 B bk round

Part No. 50566
EAN 4251269314919
Package quantity 10
Mounting options Snap-in
For max. no. of cables 20
Max. cable diameter 9.3 mm
Colour black
Height 12 mm
Mounting height 5 mm
External diameter 60 mm
Cut-out size, round 50 mm
Cut-out size, metric M50
For min. wall thickness 2.8 mm
For max. wall thickness 4 mm
Clamping range 16 x 1 - 6.3 mm
4 x 1 - 9.3 mm
available
Get a quote
Download at Traceparts Download at Cadenas Request CAD data
Data sheet

KEL-DP 50|35 A gy round

Part No. 43556
EAN 4251269310126
Package quantity 10
Mounting options Snap-in
For max. no. of cables 35
Max. cable diameter 5.2 mm
Colour grey (similar RAL 7035)
Height 12 mm
Mounting height 5 mm
External diameter 60 mm
Cut-out size, round 50 mm
Cut-out size, metric M50
For min. wall thickness 1.5 mm
For max. wall thickness 2.5 mm
Clamping range 35 x 1 - 5.2 mm
available
Get a quote
Download at Traceparts Download at Cadenas Request CAD data
Data sheet

KEL-DP 50|35 B gy round

Part No. 43570
EAN 4251269310232
Package quantity 10
Mounting options Snap-in
For max. no. of cables 35
Max. cable diameter 5.2 mm
Colour grey (similar RAL 7035)
Height 12 mm
Mounting height 5 mm
External diameter 60 mm
Cut-out size, round 50 mm
Cut-out size, metric M50
For min. wall thickness 2.8 mm
For max. wall thickness 4 mm
available
Get a quote
Download at Traceparts Download at Cadenas Request CAD data
Data sheet

KEL-DP 50|35 A bk round

Part No. 50556
EAN 4251269314872
Package quantity 10
Mounting options Snap-in
For max. no. of cables 35
Max. cable diameter 5.2 mm
Colour black
Height 12 mm
Mounting height 5 mm
External diameter 60 mm
Cut-out size, round 50 mm
Cut-out size, metric M50
For min. wall thickness 1.5 mm
For max. wall thickness 2.5 mm
Clamping range 35 x 1 - 5.2 mm
available
Get a quote
Download at Traceparts Download at Cadenas Request CAD data
Data sheet

KEL-DP 50|35 B bk round

Part No. 50570
EAN 4251269314957
Package quantity 10
Mounting options Snap-in
For max. no. of cables 35
Max. cable diameter 5.2 mm
Colour black
Height 12 mm
Mounting height 5 mm
External diameter 60 mm
Cut-out size, round 50 mm
Cut-out size, metric M50
For min. wall thickness 2.8 mm
For max. wall thickness 4 mm
Clamping range 35 x 1 - 5.2 mm
available
Get a quote
Download at Traceparts Download at Cadenas Request CAD data
Data sheet

You haven't found anything suitable yet?

Try the ProductFinder

Assembly video


Convince yourself of the simple and time-saving assembly of our products.

Watch the assembly video!

Simply assemble the cable entry component with grommets

Always find the right size and the right cable grommets for your cable entry!

Suitable accessories

AB-M

Cover panels for thread extensions & cable entry systems, M32 / M50 / M63

The cover panels have an outer diameter of 150 mm and a centre hole of 32.5 mm, 50.5 mm or 63.5 mm to accommodate the thread extensions, cable entry plates & split cable glands.

ST-B

Membrane plugs for gland plates & cable grommets

Plugs for sealing already pierced membranes of cable entry plates as well as for numerous cable grommets.

Round punches

Round punches

Round knockout punches for cut-outs M16 - M85 and PG 16. Suitable for cable glands and round cable entry plates.

Suitable for:

FP

Flange plates, IP54 - IP66

Flange plates for mounting cable entry components on compact enclosures, terminal boxes or bus enclosures by Rittal and Fibox.

You might also be interested in the following products

KEL-DP

Plug-in gland plate, IP64 / UL Type 12

Gland plate for tool-free plug-in assembly. Certified sealing rates IP64 / UL Type 12.

KEL-SCDP

Plug-in cable entry grommet, IP65

Flexible cable entry grommet for single cables. For plug-in into cut-outs from M12 to M50.

KEL-QTA

Split cable entry plate for tool-free assembly, IP54

QT grommet based cable entry plate made of elastomer for cables with or without connectors. Snap-in mounting.

Rectangular punches

Rectangular & square punches

Rectangular & square knockout punches for heavy multi-pin industrial connectors and many icotek cable entry components.

KEL-DPZ-HD round

Round gland plate, hygienic design, IP66/IP68, FDA compliant

Round hygienic gland plate with certified sealing IP66/IP68. Metric threads M25-M63.

FP

Flange plates, IP54 - IP66

Flange plates for mounting cable entry components on compact enclosures, terminal boxes or bus enclosures by Rittal and Fibox.

CONFiX™ FWS

Bulkhead fitting for cable conduits

90° angled bulkhead fitting for routing corrugated cable conduits via conduit connector (FWS-A) or direct pickup (FWS-B).

EMC-KEL-U

Split EMC cable entry frame

Conductive EMC cable entry frames for cut-outs of heavy industrial connectors. Available as single or double row version.
