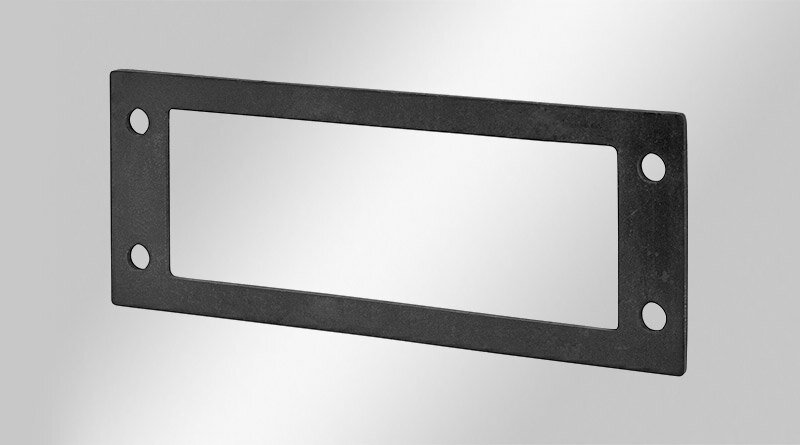

A flat gasket is provided to ensure a clean seal between the cable entry frame and the enclosure / control panel wall. Although this gasket is included in delivery, it can also be ordered separately. The standard gaskets for our KEL cable entry frames are self-adhesive on one side. This facilitates the alignment and assembly of the gasket.
| Part No. | 42246 |
| EAN | 4251269332647 |
| Package quantity | 10 |
| Length | 145 mm |
| Width | 56 mm |
| Height | 2.5 mm |
| Mounting height | 2.5 mm |
| Cut-out size | 112 × 36 mm |
| No. of screw holes | 4 |
| Diam. of screw holes | 6 mm |
| Colour | black |
| Suitable for cable entry systems: | KEL 24, KEL-U 24, KEL-ER 24, KEL-QUICK 24, KEL-FG-A, KEL-FG-ER A |
| Part No. | 42254 |
| EAN | 4251269332678 |
| Package quantity | 1 |
| Length | 143 mm |
| Width | 83 mm |
| Height | 3 mm |
| Mounting height | 3 mm |
| Cut-out size | 112 × 66 mm |
| No. of screw holes | 4 |
| Diam. of screw holes | 6 mm |
| Colour | black |
| Suitable for cable entry systems: | KEL 24-E |
| Part No. | 42253 |
| EAN | 4251269332661 |
| Package quantity | 1 |
| Length | 143 mm |
| Width | 100 mm |
| Height | 3 mm |
| Mounting height | 3 mm |
| Cut-out size | 112 × 82 mm |
| No. of screw holes | 6 |
| Diam. of screw holes | 6 mm |
| Colour | black |
| Suitable for cable entry systems: | KEL 24-MT |
| Part No. | 42255 |
| EAN | 4251269332685 |
| Package quantity | 1 |
| Length | 143 mm |
| Width | 144.5 mm |
| Height | 3 mm |
| Mounting height | 3 mm |
| Cut-out size | 112 × 126 mm |
| No. of screw holes | 8 |
| Diam. of screw holes | 6 mm |
| Colour | black |
| Suitable for cable entry systems: | KEL 24-2MT |
| Part No. | 42170 |
| EAN | 4251269332616 |
| Package quantity | 10 |
| Length | 118 mm |
| Width | 56 mm |
| Height | 3 mm |
| Mounting height | 3 mm |
| Cut-out size | 86 × 36 mm |
| No. of screw holes | 4 |
| Diam. of screw holes | 6 mm |
| Colour | black |
| Suitable for cable entry systems: | KEL 16, KEL-U 16, KEL-ER 16, KEL-QUICK 16 |
| Part No. | 42142 |
| EAN | 4251269332586 |
| Package quantity | 1 |
| Length | 118 mm |
| Width | 83 mm |
| Height | 3 mm |
| Mounting height | 3 mm |
| Cut-out size | 86 × 66 mm |
| No. of screw holes | 4 |
| Diam. of screw holes | 6 mm |
| Colour | black |
| Suitable for cable entry systems: | KEL 16-E |
| Part No. | 42146 |
| EAN | 4251269332593 |
| Package quantity | 1 |
| Length | 118 mm |
| Width | 100 mm |
| Height | 3 mm |
| Mounting height | 3 mm |
| Cut-out size | 86 × 82 mm |
| No. of screw holes | 6 |
| Diam. of screw holes | 6 mm |
| Colour | black |
| Suitable for cable entry systems: | KEL 16-MT |
| Part No. | 42150 |
| EAN | 4251269332609 |
| Package quantity | 1 |
| Length | 118 mm |
| Width | 144.5 mm |
| Height | 3 mm |
| Mounting height | 3 mm |
| Cut-out size | 86 × 126 mm |
| No. of screw holes | 8 |
| Diam. of screw holes | 6 mm |
| Colour | black |
| Suitable for cable entry systems: | KEL 16-2MT |
| Part No. | 42257 |
| EAN | 4251269332708 |
| Package quantity | 10 |
| Length | 98.3 mm |
| Width | 58 mm |
| Height | 2.5 mm |
| Mounting height | 2.5 mm |
| Cut-out size | 65 × 36 mm |
| No. of screw holes | 4 |
| Diam. of screw holes | 6 mm |
| Colour | black |
| Suitable for cable entry systems: | KEL 10, KEL-U 10, KEL-ER 10, KEL-QUICK 10 |
| Part No. | 42452 |
| EAN | 4251269332746 |
| Package quantity | 10 |
| Length | 70.8 mm |
| Width | 56 mm |
| Height | 2.5 mm |
| Mounting height | 2.5 mm |
| Cut-out size | 46 × 46 mm |
| No. of screw holes | 4 |
| Diam. of screw holes | 6 mm |
| Colour | black |
| Suitable for cable entry systems: | KEL-B, KEL-U-B, KEL-ER-B |
| Part No. | 42451 |
| Package quantity | 10 |
| Length | 72.85 mm |
| Width | 55.6 mm |
| Height | 2.5 mm |
| Mounting height | 2.5 mm |
| Cut-out size | 46 × 46 mm |
| No. of screw holes | 4 |
| Diam. of screw holes | 9.5 mm |
| Colour | black |
| Suitable for cable entry systems: | KEL-QUICK-B |
| Part No. | 42331 |
| EAN | 4251269332715 |
| Package quantity | 1 |
| Length | 72.85 mm |
| Width | 55.6 mm |
| Height | 2.5 mm |
| Mounting height | 2.5 mm |
| Cut-out size | 46 × 46 mm |
| No. of screw holes | 4 |
| Diam. of screw holes | 9.5 mm |
| Colour | black |
| Suitable for cable entry systems: | KEL-FG-B, KEL-FG-ER B |
| Part No. | 42251 |
| EAN | 4251269332654 |
| Package quantity | 10 |
| Length | 147 mm |
| Width | 40 mm |
| Height | 2.5 mm |
| Mounting height | 2.5 mm |
| Cut-out size | 112 × 24 mm |
| No. of screw holes | 2 |
| Diam. of screw holes | 6 mm |
| Colour | black |
| Suitable for cable entry systems: | KEL-E5, KEL-ER-E5, KEL-QUICK-E5, KEL-FG-E5, KEL-FG-ER E5, KEL-FL 4 |
| Part No. | 42198 |
| EAN | 4251269332630 |
| Package quantity | 10 |
| Length | 120 mm |
| Width | 40 mm |
| Height | 2.5 mm |
| Mounting height | 2.5 mm |
| Cut-out size | 86 × 24 mm |
| No. of screw holes | 2 |
| Diam. of screw holes | 6 mm |
| Colour | black |
| Suitable for cable entry systems: | KEL-E4, KEL-ER-E4, KEL-QUICK-E4, KEL-FL 3 |
| Part No. | 42197 |
| EAN | 4251269332623 |
| Package quantity | 10 |
| Length | 98 mm |
| Width | 40 mm |
| Height | 2.5 mm |
| Mounting height | 2.5 mm |
| Cut-out size | 65 × 24 mm |
| No. of screw holes | 2 |
| Diam. of screw holes | 6 mm |
| Colour | black |
| Suitable for cable entry systems: | KEL-E3, KEL-ER-E3, KEL-QUICK-E3, KEL-FG-E3, KEL-FG-ER E3, KEL-FL 2 |
| Part No. | 42256 |
| EAN | 4251269332692 |
| Package quantity | 10 |
| Length | 72.8 mm |
| Width | 40 mm |
| Height | 2.5 mm |
| Mounting height | 2.5 mm |
| Cut-out size | 43 × 24 mm |
| No. of screw holes | 2 |
| Diam. of screw holes | 6 mm |
| Colour | black |
| Suitable for cable entry systems: | KEL-E2, KEL-ER-E2, KEL-QUICK-E2, KEL-FG-E2, KEL-FG-ER E2, KEL-FL 1 |
| Part No. | 47110 |
| EAN | 4251269332753 |
| Package quantity | 1 |
| Length | 220 mm |
| Width | 118 mm |
| Height | 2.5 mm |
| Mounting height | 2.5 mm |
| No. of screw holes | 8 |
| Diam. of screw holes | 7 mm |
| Colour | black |
| Suitable for cable entry systems: | KEL 183 |
| Part No. | 47111 |
| EAN | 4251269332760 |
| Package quantity | 1 |
| Length | 220 mm |
| Width | 77 mm |
| Height | 2.5 mm |
| Mounting height | 2.5 mm |
| No. of screw holes | 6 |
| Diam. of screw holes | 7 mm |
| Colour | black |
| Suitable for cable entry systems: | KEL 183-E |
| Part No. | 42361 |
| EAN | 4251269332739 |
| Package quantity | 1 |
| Length | 110.3 mm |
| Width | 116.3 mm |
| Height | 2 mm |
| Mounting height | 2 mm |
| No. of screw holes | 4 |
| Diam. of screw holes | 7 mm |
| Colour | black |
| Suitable for cable entry systems: | KEL-JUMBO 1 |
| Part No. | 42351 |
| EAN | 4251269332722 |
| Package quantity | 1 |
| Length | 200.3 mm |
| Width | 116.3 mm |
| Height | 2 mm |
| Mounting height | 2 mm |
| No. of screw holes | 4 |
| Diam. of screw holes | 7 mm |
| Colour | black |
| Suitable for cable entry systems: | KEL-JUMBO 2 |
