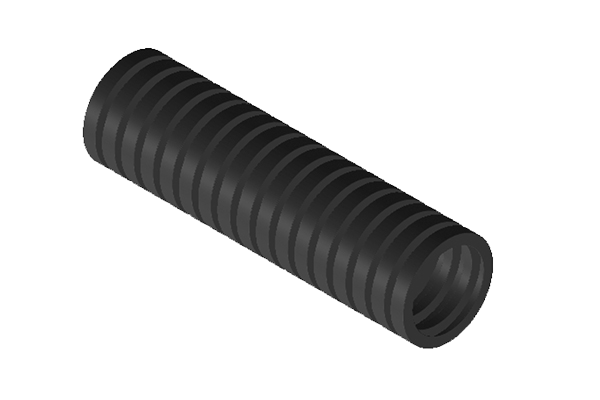

CONFiX™ WS cable protection conduits

for cables without connectors

Parallel corrugated conduits for cable routing are used where cables have to be protected from mechanical damage or certain weather conditions.

icotek provides conduits in sizes NW 7.5, 8.5, 10, 13, 17, 23, 29, 37, and 50.

Conduits from size NW 13 can be mounted with CONFiX™ FWS bulkhead fittings.

Parallel corrugated conduits are available in 3 different versions:

  • CONFiX™ WS-PA: Polyamide conduit for high mechanical requirements (e.g. engine compartments, car bodies, construction machines, ship building, rail transportation technology, switch cabinets).
    → Suitable for ground installation
  • CONFiX™ WS-PAL (light): Polyamide conduit for high mechanical requirements
    → Suitable for suspended installation
  • CONFiX™ WS-PP: Polypropylene conduit for use in engine compartments, car bodies and for static installation at machinery and plant engineering.
    → Cost-effective, flame class UL94-V2, temperature resistant, resistant to chemicals

Note: PU = Ring length (m)

Specifications

Material Material: Polyamide
Material: Polypropylene
Flame class UL94-HB
Operating temperature -40 C° to 120 C°
Properties halogen free, UV-beständig nach ISO 8580, Hohe Beständigkeit gegen Säuren/Laugen

Advantages & benefits

  • CONFiX WS-PA: Perfect for ground installation
  • CONFiX WS-PA(L): Suitable for high mechanical requirements
  • CONFiX WS-PAL: Perfect for suspended installation
  • CONFiX WS-PP: High flame class UL94-V2
  • CONFiX WS-PP: High resistance against extreme temperatures and chemicals

Product types & sizes

You haven't found anything suitable yet?

Try the ProductFinder

Assembly video


Convince yourself of the simple and time-saving assembly of our products.

Watch the assembly video!
