EMC shield clamps are used, where the shield of cables must be connected to the earth potential. They are easy to use and effective in earthing single cable shields.
When using types with integrated strain relief cables can be fixed via the cable jacket using cable ties. Thus strain relief in accordance with EN 62444 is achieved. We also offer EMC shield clamps with double strain relief function acc. to PROFINET installation guidelines.
Due to its special design the clamping ranges of the MSKL are very large while the dimensions are comparatively small. (Example: MSKL 3-12, assembled with a 12 mm cable shield: width 26.25 mm). The EMC shield clamp LFZ-M|MSKL is also available as 45° and 90° angled version. The 45° angled type is suitable for the use in frequency converters from various manufacturers. Thus, the cable can be inserted in a 45° angle into the wiring duct. For the cable routeing and strain relieving on edges the 90° angled type can be used.
The shield clamps are easily attached to mounting plates via screw.
The shield clamp LFZ-U|SKL is available for M4 or M5 screws. During assembly it is sufficient to loosen the existing screw slightly to be able to slide the clamp underneath before re-tightening the screw.
Shield clamps LFZ-U-AB are especially suitable for mounting on Allen Bradley Powerflex 525 & Powerflex 527 AC drives. Direct contacting on the drive saves space and interference signals are picked up directly at the interference source.
| Material |
Shield clamp:
Spring steel, zinc plated
Shield bracket: Mild steel, galvanically zinc plated Screw foot: Mild steel, galvanically zinc plated |
| Properties | vibration proof |
| Mounting options | Screw type mounting |

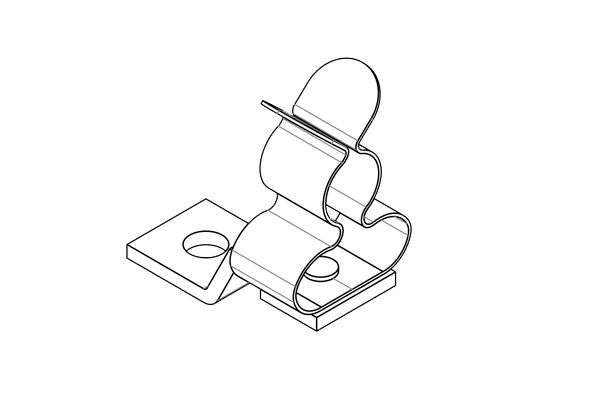

| Part No. | 37608 |
| EAN | 4251269316890 |
| Package quantity | 10 |
| No. of shield clamps | 1 |
| For max. no. of cables | 1 |
| Min. shield diam. | 3 mm |
| Max. shield diam. | 12 mm |
| Length | 24 mm |
| Width | 15 mm |
| Height | 26 mm |
| Mounting height | 26 mm |
| No. of screw holes | 1 |
| Diam. of screw holes | 4.1 mm |
| Part No. | 37610 |
| EAN | 4251269316906 |
| Package quantity | 10 |
| No. of shield clamps | 1 |
| For max. no. of cables | 1 |
| Min. shield diam. | 8 mm |
| Max. shield diam. | 18 mm |
| Length | 24 mm |
| Width | 20 mm |
| Height | 32 mm |
| Mounting height | 32 mm |
| No. of screw holes | 1 |
| Diam. of screw holes | 4.1 mm |
| Part No. | 36251 |
| EAN | 4251269302404 |
| Package quantity | 10 |
| No. of shield clamps | 1 |
| For max. no. of cables | 1 |
| Min. shield diam. | 1.5 mm |
| Max. shield diam. | 3 mm |
| Length | 24 mm |
| Width | 11.8 mm |
| Height | 18.4 mm |
| Mounting height | 18.4 mm |
| No. of screw holes | 1 |
| Diam. of screw holes | 4.1 mm |
| Part No. | 36253 |
| EAN | 4251269302428 |
| Package quantity | 10 |
| No. of shield clamps | 1 |
| For max. no. of cables | 1 |
| Min. shield diam. | 3 mm |
| Max. shield diam. | 6 mm |
| Length | 24 mm |
| Width | 11.8 mm |
| Height | 19 mm |
| Mounting height | 19 mm |
| No. of screw holes | 1 |
| Diam. of screw holes | 4.1 mm |
| Part No. | 36255 |
| EAN | 4251269302435 |
| Package quantity | 10 |
| No. of shield clamps | 1 |
| For max. no. of cables | 1 |
| Min. shield diam. | 6 mm |
| Max. shield diam. | 8 mm |
| Length | 24 mm |
| Width | 11.8 mm |
| Height | 20.5 mm |
| Mounting height | 20.5 mm |
| No. of screw holes | 1 |
| Diam. of screw holes | 4.1 mm |
| Part No. | 36256 |
| EAN | 4251269302442 |
| Package quantity | 10 |
| No. of shield clamps | 1 |
| For max. no. of cables | 1 |
| Min. shield diam. | 8 mm |
| Max. shield diam. | 11 mm |
| Length | 24 mm |
| Width | 14 mm |
| Height | 25.5 mm |
| Mounting height | 25.5 mm |
| No. of screw holes | 1 |
| Diam. of screw holes | 4.1 mm |
| Part No. | 36257 |
| EAN | 4251269302459 |
| Package quantity | 10 |
| No. of shield clamps | 1 |
| For max. no. of cables | 1 |
| Min. shield diam. | 11 mm |
| Max. shield diam. | 17 mm |
| Length | 24 mm |
| Width | 21 mm |
| Height | 32.5 mm |
| Mounting height | 32.5 mm |
| No. of screw holes | 1 |
| Diam. of screw holes | 4.1 mm |
| Part No. | 36258 |
| EAN | 4251269302466 |
| Package quantity | 10 |
| No. of shield clamps | 1 |
| For max. no. of cables | 1 |
| Min. shield diam. | 17 mm |
| Max. shield diam. | 22 mm |
| Length | 24 mm |
| Width | 26.5 mm |
| Height | 40 mm |
| Mounting height | 40 mm |
| No. of screw holes | 1 |
| Diam. of screw holes | 4.1 mm |
| Part No. | 36259 |
| EAN | 4251269302473 |
| Package quantity | 10 |
| No. of shield clamps | 1 |
| For max. no. of cables | 1 |
| Min. shield diam. | 22 mm |
| Max. shield diam. | 30 mm |
| Length | 24 mm |
| Width | 35 mm |
| Height | 44.4 mm |
| Mounting height | 44.4 mm |
| No. of screw holes | 1 |
| Diam. of screw holes | 4.1 mm |
| Part No. | 37612 |
| EAN | 4251269316913 |
| Package quantity | 10 |
| No. of shield clamps | 1 |
| Strain relief (acc. to EN 62444) | 1 |
| For max. no. of cables | 1 |
| Min. shield diam. | 3 mm |
| Max. shield diam. | 12 mm |
| Length | 46.3 mm |
| Width | 15 mm |
| Height | 26 mm |
| Mounting height | 26 mm |
| No. of screw holes | 1 |
| Diam. of screw holes | 4.1 mm |
| Part No. | 37660.1 |
| EAN | 4251269320965 |
| Package quantity | 10 |
| No. of shield clamps | 1 |
| For max. no. of cables | 1 |
| Min. shield diam. | 3 mm |
| Max. shield diam. | 12 mm |
| Strain relief (acc. to EN 62444) | 1 |
| Length | 45.1 mm |
| Width | 14.9 mm |
| Height | 33.1 mm |
| No. of screw holes | 1 |
| Diam. of screw holes | 4.1 mm |
| Part No. | 37661.1 |
| EAN | 4251269321450 |
| Package quantity | 10 |
| No. of shield clamps | 1 |
| For max. no. of cables | 1 |
| Min. shield diam. | 3 mm |
| Max. shield diam. | 12 mm |
| Strain relief (acc. to EN 62444) | 1 |
| Length | 34.7 mm |
| Width | 14.9 mm |
| Height | 37.1 mm |
| No. of screw holes | 1 |
| Diam. of screw holes | 4.1 mm |
| Part No. | 37614 |
| EAN | 4251269316920 |
| Package quantity | 10 |
| No. of shield clamps | 1 |
| Strain relief (acc. to EN 62444) | 1 |
| For max. no. of cables | 1 |
| Min. shield diam. | 8 mm |
| Max. shield diam. | 18 mm |
| Length | 46.3 mm |
| Width | 20 mm |
| Height | 32.2 mm |
| Mounting height | 32.2 mm |
| No. of screw holes | 1 |
| Diam. of screw holes | 4.1 mm |
| Part No. | 37660.2 |
| EAN | 4251269320972 |
| Package quantity | 10 |
| No. of shield clamps | 1 |
| For max. no. of cables | 1 |
| Min. shield diam. | 8 mm |
| Max. shield diam. | 18 mm |
| Strain relief (acc. to EN 62444) | 1 |
| Length | 45.1 mm |
| Width | 19.7 mm |
| Height | 39.3 mm |
| No. of screw holes | 1 |
| Diam. of screw holes | 4.1 mm |
| Part No. | 37661.2 |
| EAN | 4251269321467 |
| Package quantity | 10 |
| No. of shield clamps | 1 |
| For max. no. of cables | 1 |
| Min. shield diam. | 8 mm |
| Max. shield diam. | 18 mm |
| Strain relief (acc. to EN 62444) | 1 |
| Length | 34.7 mm |
| Width | 19.4 mm |
| Height | 43.3 mm |
| No. of screw holes | 1 |
| Diam. of screw holes | 4.1 mm |
| Part No. | 36910 |
| EAN | 4251269305054 |
| Package quantity | 10 |
| No. of shield clamps | 1 |
| Strain relief (acc. to EN 62444) | 1 |
| For max. no. of cables | 1 |
| Min. shield diam. | 1.5 mm |
| Max. shield diam. | 3 mm |
| Length | 44.4 mm |
| Width | 11.8 mm |
| Height | 18.4 mm |
| Mounting height | 18.4 mm |
| No. of screw holes | 1 |
| Diam. of screw holes | 4.1 mm |
| Part No. | 36915 |
| EAN | 4251269305061 |
| Package quantity | 10 |
| No. of shield clamps | 1 |
| Strain relief (acc. to EN 62444) | 1 |
| For max. no. of cables | 1 |
| Min. shield diam. | 3 mm |
| Max. shield diam. | 6 mm |
| Length | 44.4 mm |
| Width | 11.8 mm |
| Height | 19.1 mm |
| Mounting height | 19.1 mm |
| No. of screw holes | 1 |
| Diam. of screw holes | 4.1 mm |
| Part No. | 36920 |
| EAN | 4251269305078 |
| Package quantity | 10 |
| No. of shield clamps | 1 |
| Strain relief (acc. to EN 62444) | 1 |
| For max. no. of cables | 1 |
| Min. shield diam. | 6 mm |
| Max. shield diam. | 8 mm |
| Length | 44.4 mm |
| Width | 11.8 mm |
| Height | 20.5 mm |
| Mounting height | 20.5 mm |
| No. of screw holes | 1 |
| Diam. of screw holes | 4.1 mm |
| Part No. | 36925 |
| EAN | 4251269305085 |
| Package quantity | 10 |
| No. of shield clamps | 1 |
| Strain relief (acc. to EN 62444) | 1 |
| For max. no. of cables | 1 |
| Min. shield diam. | 8 mm |
| Max. shield diam. | 11 mm |
| Length | 44.4 mm |
| Width | 14 mm |
| Height | 25.5 mm |
| Mounting height | 25.5 mm |
| No. of screw holes | 1 |
| Diam. of screw holes | 4.1 mm |
| Part No. | 36930 |
| EAN | 4251269305092 |
| Package quantity | 10 |
| No. of shield clamps | 1 |
| Strain relief (acc. to EN 62444) | 1 |
| For max. no. of cables | 1 |
| Min. shield diam. | 11 mm |
| Max. shield diam. | 17 mm |
| Length | 55 mm |
| Width | 21 mm |
| Height | 33 mm |
| Mounting height | 33 mm |
| No. of screw holes | 1 |
| Diam. of screw holes | 4.1 mm |
| Part No. | 36935 |
| EAN | 4251269305108 |
| Package quantity | 10 |
| No. of shield clamps | 1 |
| Strain relief (acc. to EN 62444) | 1 |
| For max. no. of cables | 1 |
| Min. shield diam. | 17 mm |
| Max. shield diam. | 22 mm |
| Length | 55 mm |
| Width | 26.5 mm |
| Height | 40 mm |
| Mounting height | 40 mm |
| No. of screw holes | 1 |
| Diam. of screw holes | 4.1 mm |
| Part No. | 36940 |
| EAN | 4251269305115 |
| Package quantity | 10 |
| No. of shield clamps | 1 |
| Strain relief (acc. to EN 62444) | 1 |
| For max. no. of cables | 1 |
| Min. shield diam. | 22 mm |
| Max. shield diam. | 30 mm |
| Length | 55 mm |
| Width | 35 mm |
| Height | 44 mm |
| Mounting height | 44 mm |
| No. of screw holes | 1 |
| Diam. of screw holes | 4.1 mm |
| Part No. | 36941 |
| EAN | 4251269319082 |
| Package quantity | 10 |
| No. of shield clamps | 1 |
| Strain relief (acc. to EN 62444) | 1 |
| For max. no. of cables | 1 |
| Min. shield diam. | 30 mm |
| Max. shield diam. | 38 mm |
| Length | 55 mm |
| Width | 46.5 mm |
| Height | 67 mm |
| Mounting height | 67 mm |
| No. of screw holes | 1 |
| Diam. of screw holes | 4.2 mm |
| Part No. | 36886.1 |
| EAN | 4251269304972 |
| Package quantity | 10 |
| No. of shield clamps | 1 |
| Length | 44.4 mm |
| Strain relief (acc. to EN 62444) | 1 |
| For max. no. of cables | 1 |
| Min. shield diam. | 1.5 mm |
| Max. shield diam. | 3 mm |
| Width | 11.8 mm |
| Height | 18.4 mm |
| Mounting height | 18.4 mm |
| No. of screw holes | 1 |
| Diam. of screw holes | 4.2 mm |
| Part No. | 36886.2 |
| EAN | 4251269304989 |
| Package quantity | 10 |
| No. of shield clamps | 1 |
| Length | 44.4 mm |
| Strain relief (acc. to EN 62444) | 1 |
| For max. no. of cables | 1 |
| Min. shield diam. | 3 mm |
| Max. shield diam. | 6 mm |
| Width | 11.8 mm |
| Height | 19.1 mm |
| Mounting height | 19.1 mm |
| No. of screw holes | 1 |
| Diam. of screw holes | 4.2 mm |
| Part No. | 36886.3 |
| EAN | 4251269304996 |
| Package quantity | 10 |
| No. of shield clamps | 1 |
| Length | 44.4 mm |
| Strain relief (acc. to EN 62444) | 1 |
| For max. no. of cables | 1 |
| Min. shield diam. | 6 mm |
| Max. shield diam. | 8 mm |
| Width | 11.8 mm |
| Height | 20.5 mm |
| Mounting height | 20.5 mm |
| No. of screw holes | 1 |
| Diam. of screw holes | 4.2 mm |
| Part No. | 36886.4 |
| EAN | 4251269305009 |
| Package quantity | 10 |
| No. of shield clamps | 1 |
| Length | 44.4 mm |
| Strain relief (acc. to EN 62444) | 1 |
| For max. no. of cables | 1 |
| Min. shield diam. | 8 mm |
| Max. shield diam. | 11 mm |
| Width | 14 mm |
| Height | 25.5 mm |
| Mounting height | 25.5 mm |
| No. of screw holes | 1 |
| Diam. of screw holes | 4.2 mm |
| Part No. | 36887.1 |
| EAN | 4251269305016 |
| Package quantity | 10 |
| No. of shield clamps | 1 |
| Length | 44.4 mm |
| Strain relief (acc. to EN 62444) | 1 |
| For max. no. of cables | 1 |
| Min. shield diam. | 1.5 mm |
| Max. shield diam. | 3 mm |
| Width | 11.8 mm |
| Height | 18.4 mm |
| Mounting height | 18.4 mm |
| No. of screw holes | 1 |
| Diam. of screw holes | 5.2 mm |
| Part No. | 36887.2 |
| EAN | 4251269305023 |
| Package quantity | 10 |
| No. of shield clamps | 1 |
| Length | 44.4 mm |
| Strain relief (acc. to EN 62444) | 1 |
| For max. no. of cables | 1 |
| Min. shield diam. | 3 mm |
| Max. shield diam. | 6 mm |
| Width | 11.8 mm |
| Height | 19.1 mm |
| Mounting height | 19.1 mm |
| No. of screw holes | 1 |
| Diam. of screw holes | 5.2 mm |
| Part No. | 36887.3 |
| EAN | 4251269305030 |
| Package quantity | 10 |
| No. of shield clamps | 1 |
| Length | 44.4 mm |
| Strain relief (acc. to EN 62444) | 1 |
| For max. no. of cables | 1 |
| Min. shield diam. | 6 mm |
| Max. shield diam. | 8 mm |
| Width | 11.8 mm |
| Height | 20.5 mm |
| Mounting height | 20.5 mm |
| No. of screw holes | 1 |
| Diam. of screw holes | 5.2 mm |
| Part No. | 36887.4 |
| EAN | 4251269305047 |
| Package quantity | 10 |
| No. of shield clamps | 1 |
| Length | 44.4 mm |
| Strain relief (acc. to EN 62444) | 1 |
| For max. no. of cables | 1 |
| Min. shield diam. | 8 mm |
| Max. shield diam. | 11 mm |
| Width | 14 mm |
| Height | 25.5 mm |
| Mounting height | 25.5 mm |
| No. of screw holes | 1 |
| Diam. of screw holes | 5.2 mm |
| Part No. | 36948.3 |
| EAN | 4251269322365 |
| Package quantity | 10 |
| No. of shield clamps | 1 |
| Length | 43.6 mm |
| Strain relief (acc. to EN 62444) | 1 |
| For max. no. of cables | 1 |
| Min. shield diam. | 6 mm |
| Max. shield diam. | 8 mm |
| Width | 11.8 mm |
| Height | 27.2 mm |
| Mounting height | 27.2 mm |
| No. of screw holes | 1 |
| Diam. of screw holes | 4.3 mm |
| Part No. | 36948.4 |
| EAN | 4251269322372 |
| Package quantity | 10 |
| No. of shield clamps | 1 |
| Length | 43.6 mm |
| Strain relief (acc. to EN 62444) | 1 |
| For max. no. of cables | 1 |
| Min. shield diam. | 8 mm |
| Max. shield diam. | 11 mm |
| Width | 14 mm |
| Height | 32.2 mm |
| Mounting height | 32.2 mm |
| No. of screw holes | 1 |
| Diam. of screw holes | 4.3 mm |
| Part No. | 37665.150 |
| EAN | 4251269320941 |
| Package quantity | 10 |
| No. of shield clamps | 1 |
| Length | 51 mm |
| Strain relief (acc. to EN 62444) | 1 |
| For max. no. of cables | 1 |
| Min. shield diam. | 3 mm |
| Max. shield diam. | 12 mm |
| Width | 14.9 mm |
| Height | 26 mm |
| Mounting height | 26 mm |
| No. of screw holes | 1 |
| Diam. of screw holes | 4.1 mm |
| Part No. | 37666.150 |
| EAN | 4251269320958 |
| Package quantity | 10 |
| No. of shield clamps | 1 |
| Length | 51 mm |
| Strain relief (acc. to EN 62444) | 1 |
| For max. no. of cables | 1 |
| Min. shield diam. | 8 mm |
| Max. shield diam. | 18 mm |
| Width | 19.7 mm |
| Height | 32.2 mm |
| Mounting height | 32.2 mm |
| No. of screw holes | 1 |
| Diam. of screw holes | 4.1 mm |
| Part No. | 37590.150 |
| EAN | 4251269324871 |
| Package quantity | 10 |
| No. of shield clamps | 1 |
| Length | 51 mm |
| Strain relief (acc. to EN 62444) | 1 |
| For max. no. of cables | 1 |
| Min. shield diam. | 17 mm |
| Max. shield diam. | 22 mm |
| Width | 21 mm |
| Height | 32.5 mm |
| Mounting height | 32.5 mm |
| No. of screw holes | 1 |
| Diam. of screw holes | 4.1 mm |
| Part No. | 37591.150 |
| EAN | 4251269324888 |
| Package quantity | 10 |
| No. of shield clamps | 1 |
| Length | 51 mm |
| Strain relief (acc. to EN 62444) | 1 |
| For max. no. of cables | 1 |
| Min. shield diam. | 22 mm |
| Max. shield diam. | 30 mm |
| Width | 35 mm |
| Height | 41.3 mm |
| Mounting height | 41.3 mm |
| No. of screw holes | 1 |
| Diam. of screw holes | 4.1 mm |
| Part No. | 36222.002 |
| EAN | 4251269302190 |
| Package quantity | 10 |
| For max. no. of cables | 1 |
| Min. shield diam. | 3 mm |
| Max. shield diam. | 8 mm |
| Length | 18.5 mm |
| Width | 13 mm |
| Height | 26 mm |
| No. of screw holes | 1 |
| Diam. of screw holes | 4.2 mm |
| Part No. | 36224.002 |
| EAN | 4251269302206 |
| Package quantity | 10 |
| For max. no. of cables | 1 |
| Min. shield diam. | 4 mm |
| Max. shield diam. | 13.5 mm |
| Length | 22 mm |
| Width | 20 mm |
| Height | 32 mm |
| No. of screw holes | 1 |
| Diam. of screw holes | 4.2 mm |
| Part No. | 36226 |
| EAN | 4251269302213 |
| Package quantity | 10 |
| For max. no. of cables | 1 |
| Min. shield diam. | 10 mm |
| Max. shield diam. | 20 mm |
| Length | 27 mm |
| Width | 25 mm |
| Height | 41 mm |
| No. of screw holes | 1 |
| Diam. of screw holes | 4.2 mm |
| Part No. | 36228 |
| EAN | 4251269302220 |
| Package quantity | 10 |
| For max. no. of cables | 1 |
| Min. shield diam. | 15 mm |
| Max. shield diam. | 32 mm |
| Length | 33.5 mm |
| Width | 37 mm |
| Height | 64 mm |
| No. of screw holes | 1 |
| Diam. of screw holes | 4.2 mm |
| Part No. | 36222 |
| EAN | 4251269302190 |
| Package quantity | 10 |
| Strain relief (acc. to EN 62444) | 1 |
| For max. no. of cables | 1 |
| Min. shield diam. | 3 mm |
| Max. shield diam. | 8 mm |
| Length | 30.5 mm |
| Width | 12.8 mm |
| Height | 31.8 mm |
| No. of screw holes | 1 |
| Diam. of screw holes | 4.2 mm |
| Part No. | 36224 |
| EAN | 4251269302206 |
| Package quantity | 10 |
| Strain relief (acc. to EN 62444) | 1 |
| For max. no. of cables | 1 |
| Min. shield diam. | 4 mm |
| Max. shield diam. | 13.5 mm |
| Length | 36 mm |
| Width | 22 mm |
| Height | 37.8 mm |
| No. of screw holes | 1 |
| Diam. of screw holes | 4.2 mm |
Today’s industrial process technology is far more sensitive to electromagnetic disturbances creating the need for proper electromagnetic compatibility.
But what does that mean?
This video explains clearly why EMC is so important.
EMC cable clamps without mounting feet for an individual assembly via rivet.
EMC cable clamp for snap-on mounting on 35 mm top hat DIN rails.
EMC cable clamp for mounting on C section rails C30.
EMC cable clamps for snap-on mounting on 10 × 3 mm bus bars.
Strain relief plate for mounting via snap feet on 35 mm top hat DIN rails.
Reusable hook-and-loop cable ties for bundling and fixing of cables or complete cable harnesses, conduits and hoses.
Adapter grommet based on KT cable grommets for snap-in mounting of Keystone jacks.
KT grommet based split cable gland for routing pre-terminated cables at a 90° angle to the enclosure wall. Metric thread sizes M32 / M50.
QT grommet based cable entry frames for tool-free assembly. Suitable for standard cut-outs of heavy industrial connectors. Available as single or double row version.
Grommet based cable entry frames with IFPS fire penetration seals acc. to EN 45545-3 suitable for cut-outs of heavy industrial connectors. Available as single or double row version.
Fire penetration seals for certified icotek BS cable entry components, approved for use in railway technology.
