EMC shield clamps on earthing tapes

with or without integrated cable fixing function

Order your free sample!
EMC shield clamps on earthing tapes
EMC shield clamps on earthing tapes
EMC shield clamps on earthing tapes
EMC shield clamps on earthing tapes
EMC shield clamps on earthing tapes
EMC shield clamps on earthing tapes

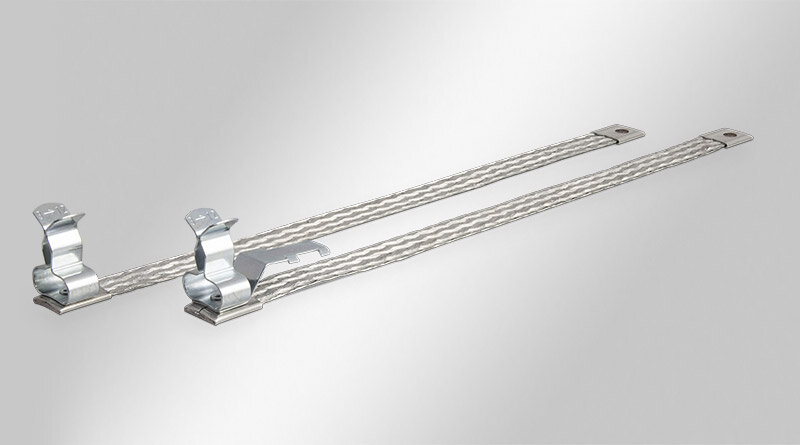

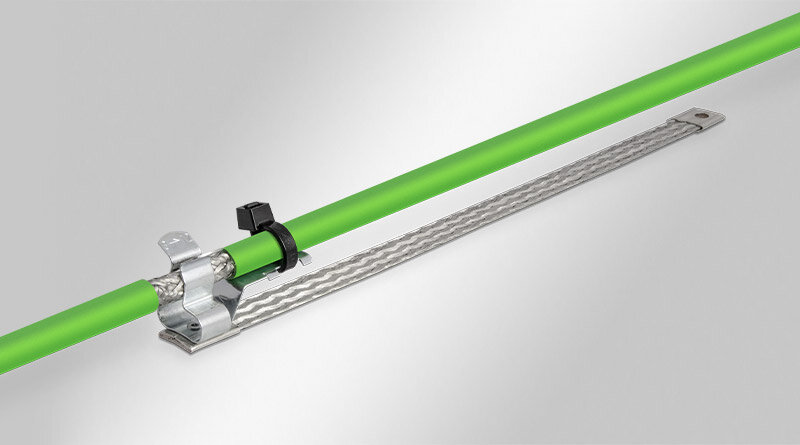

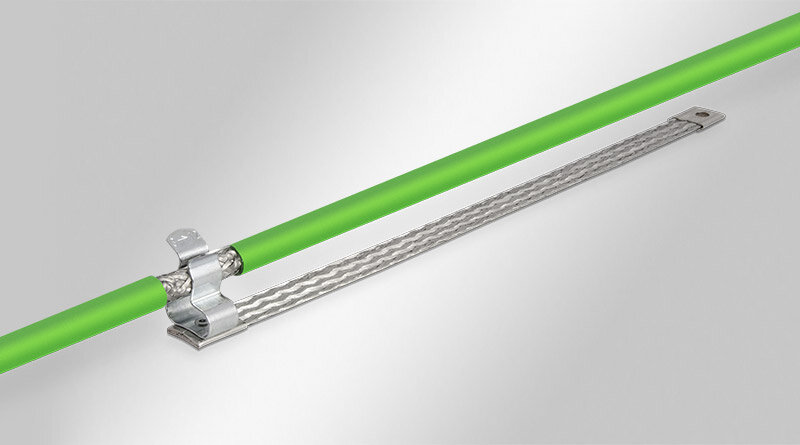

The earthing tapes are fitted with a shield clamp at one end. This solution is used where space is limited.

The earthing tapes are available with M4 or M6 holes.

Download PDF
Order your free sample!

Specifications

Material Shield clamp: Spring steel, zinc plated
Base frame: Cu-ETP
Properties vibration proof
Mounting options Screw type mounting,Riveting

Advantages & benefits

  • Very flexible assembly
  • Ideal for difficult to access installations
  • Earthing tapes with pressed-on connecting end pads
  • Standard products, short delivery times
  • UL listed

Product types & sizes

MB|100|6|M4|MSKL 3-12

Part No. 32695.01
EAN 4251269324451
Package quantity 10
No. of shield clamps 1
For max. no. of cables 1
Min. shield diam. 3 mm
Max. shield diam. 12 mm
Length 113 mm
Width 14.9 mm
Height 25 mm
Hole size M4
Cross-section 6 mm²
Current load 67 - 80 A
available
Get a quote
Download at Traceparts Request CAD data
Data sheet

MB|100|6|M4|MSKL 8-18

Part No. 32695.02
EAN 4251269324468
Package quantity 10
No. of shield clamps 1
For max. no. of cables 1
Min. shield diam. 8 mm
Max. shield diam. 18 mm
Length 113 mm
Width 19.7 mm
Height 31.2 mm
Hole size M4
Cross-section 6 mm²
Current load 67 - 80 A
available
Get a quote
Download at Traceparts Request CAD data
Data sheet

MB|100|10|M6+M4|MSKL 3-12

Part No. 39711.01
EAN 4251269324413
Package quantity 10
No. of shield clamps 1
For max. no. of cables 1
Min. shield diam. 3 mm
Max. shield diam. 12 mm
Length 120 mm
Width 14.9 mm
Height 25 mm
Hole size M6
Cross-section 10 mm²
Current load 89 - 106 A
available
Get a quote
Download at Traceparts Request CAD data
Data sheet

MB|100|10|M6+M4|MSKL 8-18

Part No. 39711.02
EAN 4251269324420
Package quantity 10
No. of shield clamps 1
For max. no. of cables 1
Min. shield diam. 8 mm
Max. shield diam. 18 mm
Length 120 mm
Width 19.7 mm
Height 31.2 mm
Hole size M6
Cross-section 10 mm²
Current load 89 - 106 A
available
Get a quote
Download at Traceparts Request CAD data
Data sheet

MB|150|6|M4|MSKL 3-12

Part No. 39710.01
EAN 4251269324376
Package quantity 10
No. of shield clamps 1
For max. no. of cables 1
Min. shield diam. 3 mm
Max. shield diam. 12 mm
Length 163 mm
Width 14.9 mm
Height 25 mm
Hole size M4
Cross-section 6 mm²
Current load 67 - 80 A
available
Get a quote
Download at Traceparts Request CAD data
Data sheet

MB|150|6|M4|MSKL 8-18

Part No. 39710.02
EAN 4251269324383
Package quantity 10
No. of shield clamps 1
For max. no. of cables 1
Min. shield diam. 8 mm
Max. shield diam. 18 mm
Length 163 mm
Width 19.7 mm
Height 31.2 mm
Hole size M4
Cross-section 6 mm²
Current load 67 - 80 A
available
Get a quote
Download at Traceparts Request CAD data
Data sheet

MB|200|6|M4|MSKL 3-12

Part No. 32707.01
EAN 4251269324499
Package quantity 10
No. of shield clamps 1
For max. no. of cables 1
Min. shield diam. 3 mm
Max. shield diam. 12 mm
Length 213 mm
Width 14.9 mm
Height 25 mm
Hole size M4
Cross-section 6 mm²
Current load 67 - 80 A
available
Get a quote
Download at Traceparts Request CAD data
Data sheet

MB|200|6|M4|MSKL 8-18

Part No. 32707.02
EAN 4251269324505
Package quantity 10
No. of shield clamps 1
For max. no. of cables 1
Min. shield diam. 8 mm
Max. shield diam. 18 mm
Length 213 mm
Width 19.7 mm
Height 31.2 mm
Hole size M4
Cross-section 6 mm²
Current load 67 - 80 A
available
Get a quote
Download at Traceparts Request CAD data
Data sheet

MB|100|6|M4|Z-MSKL 3-12

Part No. 32695.011
EAN 4251269324475
Package quantity 10
No. of shield clamps 1
For max. no. of cables 1
Min. shield diam. 3 mm
Max. shield diam. 12 mm
Length 113 mm
Width 14.9 mm
Height 25 mm
Hole size M4
Cross-section 6 mm²
Current load 67 - 80 A
available
Get a quote
Download at Traceparts Request CAD data
Data sheet

MB|100|6|M4|Z-MSKL 8-18

Part No. 32695.021
EAN 4251269324482
Package quantity 10
No. of shield clamps 1
For max. no. of cables 1
Min. shield diam. 8 mm
Max. shield diam. 18 mm
Length 113 mm
Width 19.7 mm
Height 31.2 mm
Hole size M4
Cross-section 6 mm²
Current load 67 - 80 A
available
Get a quote
Download at Traceparts Request CAD data
Data sheet

MB|100|10|M6+M4|Z-MSKL 3-12

Part No. 39711.011
EAN 4251269324437
Package quantity 10
No. of shield clamps 1
For max. no. of cables 1
Min. shield diam. 3 mm
Max. shield diam. 12 mm
Length 120 mm
Width 14.9 mm
Height 25 mm
Hole size M6
Cross-section 10 mm²
Current load 89 - 106 A
available
Get a quote
Download at Traceparts Request CAD data
Data sheet

MB|100|10|M6+M4|Z-MSKL 8-18

Part No. 39711.021
EAN 4251269324444
Package quantity 10
No. of shield clamps 1
For max. no. of cables 1
Min. shield diam. 8 mm
Max. shield diam. 18 mm
Length 120 mm
Width 19.7 mm
Height 31.2 mm
Hole size M6
Cross-section 10 mm²
Current load 89 - 106 A
available
Get a quote
Download at Traceparts Request CAD data
Data sheet

MB|150|6|M4|Z-MSKL 3-12

Part No. 39710.011
EAN 4251269324390
Package quantity 10
No. of shield clamps 1
For max. no. of cables 1
Min. shield diam. 3 mm
Max. shield diam. 12 mm
Length 163 mm
Width 14.9 mm
Height 25 mm
Hole size M4
Cross-section 6 mm²
Current load 67 - 80 A
available
Get a quote
Download at Traceparts Request CAD data
Data sheet

MB|150|6|M4|Z-MSKL 8-18

Part No. 39710.021
EAN 4251269324406
Package quantity 10
No. of shield clamps 1
For max. no. of cables 1
Min. shield diam. 8 mm
Max. shield diam. 18 mm
Length 163 mm
Width 19.7 mm
Height 31.2 mm
Hole size M4
Cross-section 6 mm²
Current load 67 - 80 A
available
Get a quote
Download at Traceparts Request CAD data
Data sheet

MB|200|6|M4|Z-MSKL 3-12

Part No. 32707.011
EAN 4251269324512
Package quantity 10
No. of shield clamps 1
For max. no. of cables 1
Min. shield diam. 3 mm
Max. shield diam. 12 mm
Length 213 mm
Width 14.9 mm
Height 25 mm
Hole size M4
Cross-section 6 mm²
Current load 67 - 80 A
available
Get a quote
Download at Traceparts Request CAD data
Data sheet

MB|200|6|M4|Z-MSKL 8-18

Part No. 32707.021
EAN 4251269324529
Package quantity 10
No. of shield clamps 1
For max. no. of cables 1
Min. shield diam. 8 mm
Max. shield diam. 18 mm
Length 213 mm
Width 19.7 mm
Height 31.2 mm
Hole size M4
Cross-section 6 mm²
Current load 67 - 80 A
available
Get a quote
Download at Traceparts Request CAD data
Data sheet
