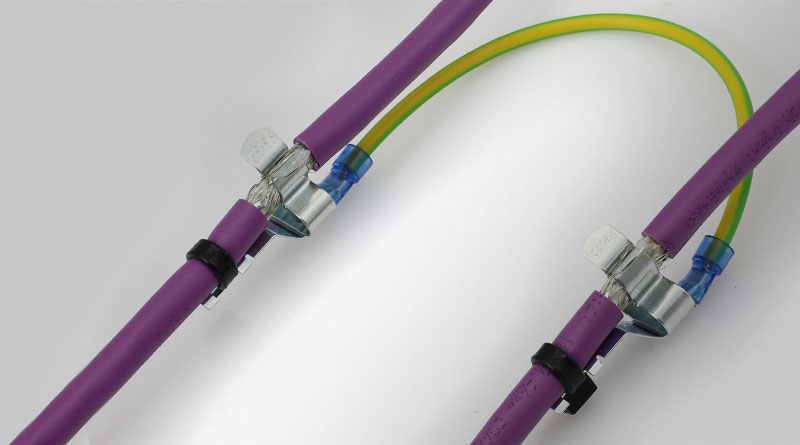

EMC shield clamps are used, where the shield of cables must be connected to the earth potential. They are easy to use and effective in earthing single cable shields. The shield clamps are mounted on ring cable lugs which can be crimped on PE conductors.

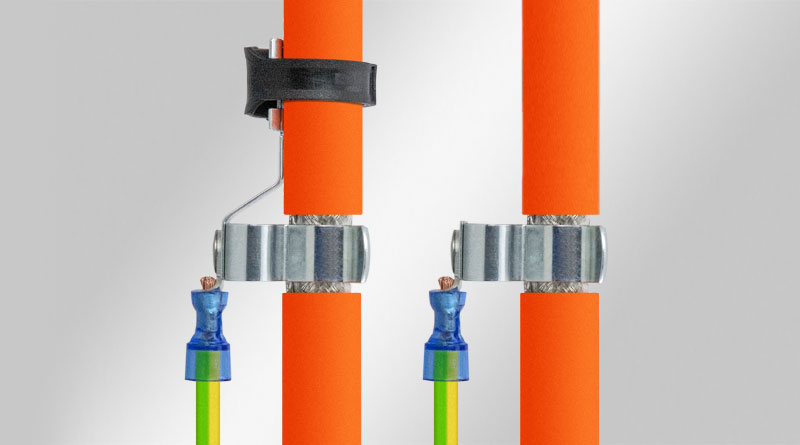

The RCLZ-M shield clamps allow a secure fixing of the cable with cable ties.

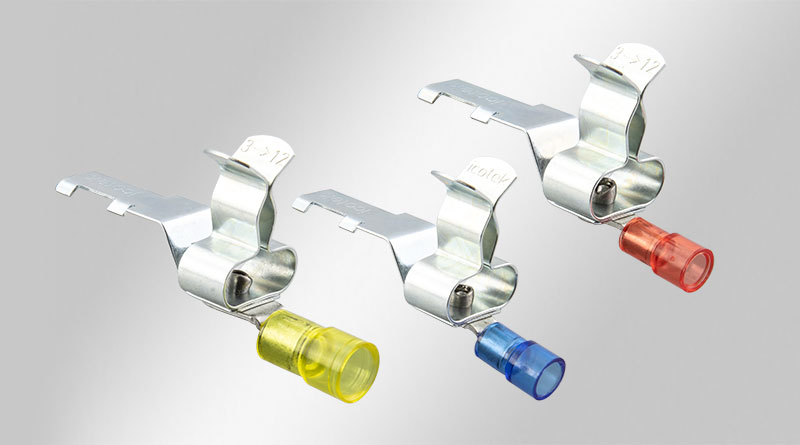

The size of the ring cable lug diameter is shown by differing colours:
| Operating temperature | -30 C° to 120 C° |
| Material | Shield clamp: Spring steel, zinc plated Mounting foot: Polycarbonate |
| Mounting options | Clamping |
| Mounting location | PE-Leiter |
| Properties | vibration proof |
| Part No. | 36296.1 |
| EAN | 4251269319655 |
| Package quantity | 25 |
| Mounting options | Clamping |
| Mounting location | PE-Leiter |
| No. of shield clamps | 1 |
| Shield clamp type | SKL |
| For max. no. of cables | 1 |
| Min. shield diam. | 1.5 mm |
| Max. shield diam. | 3 mm |
| Length | 20 mm |
| Strain relief function | No |
| Width | 11.8 mm |
| Height | 17.8 mm |
| Cable lug size | 0.5 - 1.5 mm² |
| Part No. | 36296.2 |
| EAN | 4251269319662 |
| Package quantity | 25 |
| Mounting options | Clamping |
| Mounting location | PE-Leiter |
| No. of shield clamps | 1 |
| Shield clamp type | MSKL |
| For max. no. of cables | 1 |
| Min. shield diam. | 3 mm |
| Max. shield diam. | 12 mm |
| Length | 20 mm |
| Strain relief function | No |
| Width | 14.9 mm |
| Height | 25.4 mm |
| Cable lug size | 0.5 - 1.5 mm² |
| Part No. | 36297.1 |
| EAN | 4251269319679 |
| Package quantity | 25 |
| Mounting options | Clamping |
| Mounting location | PE-Leiter |
| No. of shield clamps | 1 |
| Shield clamp type | SKL |
| For max. no. of cables | 1 |
| Min. shield diam. | 1.5 mm |
| Max. shield diam. | 3 mm |
| Length | 21 mm |
| Strain relief function | No |
| Width | 11.8 mm |
| Height | 18.2 mm |
| Cable lug size | 1.0 - 2.5 mm² |
| Part No. | 36297.3 |
| EAN | 4251269324161 |
| Package quantity | 25 |
| Mounting options | Clamping |
| Mounting location | PE-Leiter |
| No. of shield clamps | 1 |
| Shield clamp type | SKL |
| For max. no. of cables | 1 |
| Min. shield diam. | 3 mm |
| Max. shield diam. | 6 mm |
| Length | 21 mm |
| Strain relief function | No |
| Width | 11.8 mm |
| Height | 19 mm |
| Cable lug size | 1.0 - 2.5 mm² |
| Part No. | 36297.4 |
| EAN | 4251269324178 |
| Package quantity | 25 |
| Mounting options | Clamping |
| Mounting location | PE-Leiter |
| No. of shield clamps | 1 |
| Shield clamp type | SKL |
| For max. no. of cables | 1 |
| Min. shield diam. | 6 mm |
| Max. shield diam. | 8 mm |
| Length | 21 mm |
| Strain relief function | No |
| Width | 11.8 mm |
| Height | 20 mm |
| Cable lug size | 1.0 - 2.5 mm² |
| Part No. | 36297.5 |
| EAN | 4251269324185 |
| Package quantity | 25 |
| Mounting options | Clamping |
| Mounting location | PE-Leiter |
| No. of shield clamps | 1 |
| Shield clamp type | SKL |
| For max. no. of cables | 1 |
| Min. shield diam. | 8 mm |
| Max. shield diam. | 11 mm |
| Length | 21 mm |
| Strain relief function | No |
| Width | 14 mm |
| Height | 25 mm |
| Cable lug size | 1.0 - 2.5 mm² |
| Part No. | 36297.2 |
| EAN | 4251269319686 |
| Package quantity | 25 |
| Mounting options | Clamping |
| Mounting location | PE-Leiter |
| No. of shield clamps | 1 |
| Shield clamp type | MSKL |
| For max. no. of cables | 1 |
| Min. shield diam. | 3 mm |
| Max. shield diam. | 12 mm |
| Length | 21 mm |
| Strain relief function | No |
| Width | 14.9 mm |
| Height | 25.8 mm |
| Cable lug size | 1.0 - 2.5 mm² |
| Part No. | 36298.1 |
| EAN | 4251269319693 |
| Package quantity | 25 |
| Mounting options | Clamping |
| Mounting location | PE-Leiter |
| No. of shield clamps | 1 |
| Shield clamp type | SKL |
| For max. no. of cables | 1 |
| Min. shield diam. | 1.5 mm |
| Max. shield diam. | 3 mm |
| Length | 24 mm |
| Strain relief function | No |
| Width | 11.8 mm |
| Height | 19.1 mm |
| Cable lug size | 4 - 6 mm² |
| Part No. | 36298.2 |
| EAN | 4251269319709 |
| Package quantity | 25 |
| Mounting options | Clamping |
| Mounting location | PE-Leiter |
| No. of shield clamps | 1 |
| Shield clamp type | MSKL |
| For max. no. of cables | 1 |
| Min. shield diam. | 3 mm |
| Max. shield diam. | 12 mm |
| Length | 24 mm |
| Strain relief function | No |
| Width | 14.9 mm |
| Height | 26.7 mm |
| Cable lug size | 4 - 6 mm² |
| Part No. | 36301.2 |
| EAN | 4251269322327 |
| Package quantity | 25 |
| Mounting options | Clamping |
| Mounting location | PE-Leiter |
| No. of shield clamps | 1 |
| Shield clamp type | MSKL |
| For max. no. of cables | 1 |
| Min. shield diam. | 3 mm |
| Max. shield diam. | 12 mm |
| Length | 45.5 mm |
| Strain relief function | Yes |
| Width | 15 mm |
| Height | 26 mm |
| Cable lug size | 0.5 - 1.5 mm² |
| Part No. | 36302.2 |
| EAN | 4251269322334 |
| Package quantity | 25 |
| Mounting options | Clamping |
| Mounting location | PE-Leiter |
| No. of shield clamps | 1 |
| Shield clamp type | MSKL |
| For max. no. of cables | 1 |
| Min. shield diam. | 3 mm |
| Max. shield diam. | 12 mm |
| Length | 46.5 mm |
| Strain relief function | Yes |
| Width | 15 mm |
| Height | 26 mm |
| Cable lug size | 1.0 - 2.5 mm² |
| Part No. | 36303.2 |
| EAN | 4251269322341 |
| Package quantity | 25 |
| Mounting options | Clamping |
| Mounting location | PE-Leiter |
| No. of shield clamps | 1 |
| Shield clamp type | MSKL |
| For max. no. of cables | 1 |
| Min. shield diam. | 3 mm |
| Max. shield diam. | 12 mm |
| Length | 49.5 mm |
| Strain relief function | Yes |
| Width | 15 mm |
| Height | 27 mm |
| Cable lug size | 4 - 6 mm² |
