EMC clamp assemblies are used, where the shield of several cables must be connected to the earth potential. They are easy to use and enable effective earthing and strain relief of up to 12 cables in a small space. There are different carriers available which can be user configured with up to 12 SKL or MSKL shield clamps. The shield clamps are mounted directly on the surface of the clamp assembly which guarantees a tight fit.
When using types with integrated strain relief cables can be fixed via the cable jacket using cable ties. Thus strain relief in accordance with EN 62444 is achieved.

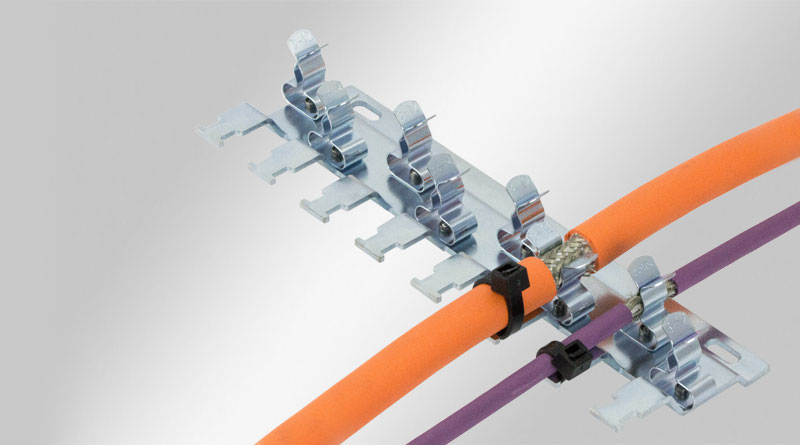

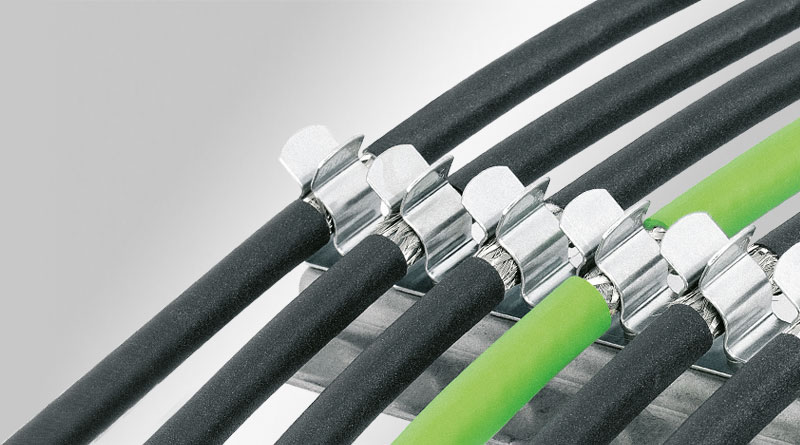

The EMC shield clamps as listed below are available to mount:
SKL 1.5-3 | SKL 3-6 | SKL 6-8 | SKL 8-11
MSKL 3-12
The SKL shield clamps are assembled in a row, the MSKL shield clamps are assembled in a staggered double-row which enables an ideal and space-saving arrangement.
The clamp assembly is easily attached to mounting plates via screw.
Configure your individual clamp assembly with the icotek EMC Configurator!
| Material | Shield clamp: Spring steel, zinc plated Snap foot: Spring steel Mounting foot: Mild steel, galvanically zinc plated |
| Mounting options | Screw type mounting |
| Mounting location | Metal sheets |
| Properties | vibration proof |
| Part No. | 36965 |
| EAN | 4251269305191 |
| Package quantity | 1 |
| Mounting options | Screw type mounting |
| Mounting location | Metal sheets |
| Shield clamp type | SKL |
| For no. of shield clamps | 3 |
| For max. no. of cables | 3 |
| Length | 46.2 mm |
| Strain relief function | No |
| Width | 24 mm |
| Height | 5.5 mm |
| Mounting height | 5.5 mm |
| Hole size | M4 |
| No. of screw holes | 2 |
| Diam. of screw holes | 4.2 mm |
| Part No. | 36984 |
| EAN | 4251269305207 |
| Package quantity | 1 |
| Mounting options | Screw type mounting |
| Mounting location | Metal sheets |
| Shield clamp type | SKL |
| For no. of shield clamps | 4 |
| For max. no. of cables | 4 |
| Length | 60.8 mm |
| Strain relief function | No |
| Width | 24 mm |
| Height | 5.5 mm |
| Mounting height | 5.5 mm |
| Hole size | M4 |
| No. of screw holes | 2 |
| Diam. of screw holes | 4.2 mm |
| Part No. | 36958 |
| EAN | 4251269305160 |
| Package quantity | 1 |
| Mounting options | Screw type mounting |
| Mounting location | Metal sheets |
| Shield clamp type | SKL |
| For no. of shield clamps | 5 |
| For max. no. of cables | 5 |
| Length | 72.4 mm |
| Strain relief function | No |
| Width | 24 mm |
| Height | 5.5 mm |
| Mounting height | 5.5 mm |
| Hole size | M4 |
| No. of screw holes | 2 |
| Diam. of screw holes | 4.2 mm |
| Part No. | 36952 |
| EAN | 4251269305122 |
| Package quantity | 1 |
| Mounting options | Screw type mounting |
| Mounting location | Metal sheets |
| Shield clamp type | SKL |
| For no. of shield clamps | 6 |
| For max. no. of cables | 6 |
| Length | 88 mm |
| Strain relief function | No |
| Width | 24 mm |
| Height | 5.5 mm |
| Mounting height | 5.5 mm |
| Hole size | M4 |
| No. of screw holes | 2 |
| Diam. of screw holes | 4.2 mm |
| Part No. | 36963 |
| EAN | 4251269305184 |
| Package quantity | 1 |
| Mounting options | Screw type mounting |
| Mounting location | Metal sheets |
| Shield clamp type | SKL |
| For no. of shield clamps | 7 |
| For max. no. of cables | 7 |
| Length | 103.6 mm |
| Strain relief function | No |
| Width | 24 mm |
| Height | 5.5 mm |
| Mounting height | 5.5 mm |
| Hole size | M4 |
| No. of screw holes | 2 |
| Diam. of screw holes | 4.2 mm |
| Part No. | 36953 |
| EAN | 4251269305139 |
| Package quantity | 1 |
| Mounting options | Screw type mounting |
| Mounting location | Metal sheets |
| Shield clamp type | SKL |
| For no. of shield clamps | 8 |
| For max. no. of cables | 8 |
| Length | 119.2 mm |
| Strain relief function | No |
| Width | 24 mm |
| Height | 5.5 mm |
| Mounting height | 5.5 mm |
| Hole size | M4 |
| No. of screw holes | 2 |
| Diam. of screw holes | 4.2 mm |
| Part No. | 36985 |
| EAN | 4251269305214 |
| Package quantity | 1 |
| Mounting options | Screw type mounting |
| Mounting location | Metal sheets |
| Shield clamp type | SKL |
| For no. of shield clamps | 9 |
| For max. no. of cables | 9 |
| Length | 140.8 mm |
| Strain relief function | No |
| Width | 24 mm |
| Height | 5.5 mm |
| Mounting height | 5.5 mm |
| Hole size | M4 |
| No. of screw holes | 2 |
| Diam. of screw holes | 4.2 mm |
| Part No. | 36954 |
| EAN | 4251269305146 |
| Package quantity | 1 |
| Mounting options | Screw type mounting |
| Mounting location | Metal sheets |
| Shield clamp type | SKL |
| For no. of shield clamps | 10 |
| For max. no. of cables | 10 |
| Length | 150.4 mm |
| Strain relief function | No |
| Width | 24 mm |
| Height | 5.5 mm |
| Mounting height | 5.5 mm |
| Hole size | M4 |
| No. of screw holes | 2 |
| Diam. of screw holes | 4.2 mm |
| Part No. | 36955 |
| EAN | 4251269305153 |
| Package quantity | 1 |
| Mounting options | Screw type mounting |
| Mounting location | Metal sheets |
| Shield clamp type | SKL |
| For no. of shield clamps | 11 |
| For max. no. of cables | 11 |
| Length | 166 mm |
| Strain relief function | No |
| Width | 24 mm |
| Height | 5.5 mm |
| Mounting height | 5.5 mm |
| Hole size | M4 |
| No. of screw holes | 2 |
| Diam. of screw holes | 4.2 mm |
| Part No. | 36962 |
| EAN | 4251269305177 |
| Package quantity | 1 |
| Mounting options | Screw type mounting |
| Mounting location | Metal sheets |
| Shield clamp type | SKL |
| For no. of shield clamps | 12 |
| For max. no. of cables | 12 |
| Length | 181.6 mm |
| Strain relief function | No |
| Width | 24 mm |
| Height | 5.5 mm |
| Mounting height | 5.5 mm |
| Hole size | M4 |
| No. of screw holes | 2 |
| Diam. of screw holes | 4.2 mm |
| Part No. | 38069.002 |
| EAN | 4251269322310 |
| Package quantity | 1 |
| Mounting options | Screw type mounting |
| Mounting location | Metal sheets |
| Shield clamp type | MSKL |
| For no. of shield clamps | 2 |
| For max. no. of cables | 2 |
| Length | 36 mm |
| Strain relief function | Yes |
| Width | 54.1 mm |
| Height | 14.2 mm |
| Mounting height | 14.2 mm |
| Hole size | M4 |
| No. of screw holes | 2 |
| Diam. of screw holes | 4.2 mm |
| Part No. | 38070.002 |
| EAN | 4251269318016 |
| Package quantity | 1 |
| Mounting options | Screw type mounting |
| Mounting location | Metal sheets |
| Shield clamp type | MSKL |
| For no. of shield clamps | 3 |
| For max. no. of cables | 3 |
| Length | 52 mm |
| Strain relief function | Yes |
| Width | 54.1 mm |
| Height | 14.2 mm |
| Mounting height | 14.2 mm |
| Hole size | M4 |
| No. of screw holes | 2 |
| Diam. of screw holes | 4.2 mm |
| Part No. | 38071.002 |
| EAN | 4251269318023 |
| Package quantity | 1 |
| Mounting options | Screw type mounting |
| Mounting location | Metal sheets |
| Shield clamp type | MSKL |
| For no. of shield clamps | 4 |
| For max. no. of cables | 4 |
| Length | 73 mm |
| Strain relief function | Yes |
| Width | 54.1 mm |
| Height | 14.2 mm |
| Mounting height | 14.2 mm |
| Hole size | M4 |
| No. of screw holes | 2 |
| Diam. of screw holes | 4.2 mm |
| Part No. | 38072.002 |
| EAN | 4251269318030 |
| Package quantity | 1 |
| Mounting options | Screw type mounting |
| Mounting location | Metal sheets |
| Shield clamp type | MSKL |
| For no. of shield clamps | 5 |
| For max. no. of cables | 5 |
| Length | 94 mm |
| Strain relief function | Yes |
| Width | 54.1 mm |
| Height | 14.2 mm |
| Mounting height | 14.2 mm |
| Hole size | M4 |
| No. of screw holes | 2 |
| Diam. of screw holes | 4.2 mm |
| Part No. | 38073.002 |
| EAN | 4251269318047 |
| Package quantity | 1 |
| Mounting options | Screw type mounting |
| Mounting location | Metal sheets |
| Shield clamp type | MSKL |
| For no. of shield clamps | 6 |
| For max. no. of cables | 6 |
| Length | 115 mm |
| Strain relief function | Yes |
| Width | 54.1 mm |
| Height | 14.2 mm |
| Mounting height | 14.2 mm |
| Hole size | M4 |
| No. of screw holes | 2 |
| Diam. of screw holes | 4.2 mm |
| Part No. | 38074.002 |
| EAN | 4251269318054 |
| Package quantity | 1 |
| Mounting options | Screw type mounting |
| Mounting location | Metal sheets |
| Shield clamp type | MSKL |
| For no. of shield clamps | 7 |
| For max. no. of cables | 7 |
| Length | 136 mm |
| Strain relief function | Yes |
| Width | 54.1 mm |
| Height | 14.2 mm |
| Mounting height | 14.2 mm |
| Hole size | M4 |
| No. of screw holes | 2 |
| Diam. of screw holes | 4.2 mm |
| Part No. | 38075.002 |
| EAN | 4251269318061 |
| Package quantity | 1 |
| Mounting options | Screw type mounting |
| Mounting location | Metal sheets |
| Shield clamp type | MSKL |
| For no. of shield clamps | 8 |
| For max. no. of cables | 8 |
| Length | 157 mm |
| Strain relief function | Yes |
| Width | 54.1 mm |
| Height | 14.2 mm |
| Mounting height | 14.2 mm |
| Hole size | M4 |
| No. of screw holes | 2 |
| Diam. of screw holes | 4.2 mm |
| Part No. | 38076.002 |
| EAN | 4251269318078 |
| Package quantity | 1 |
| Mounting options | Screw type mounting |
| Mounting location | Metal sheets |
| Shield clamp type | MSKL |
| For no. of shield clamps | 9 |
| For max. no. of cables | 9 |
| Length | 178 mm |
| Strain relief function | Yes |
| Width | 54.1 mm |
| Height | 14.2 mm |
| Mounting height | 14.2 mm |
| Hole size | M4 |
| No. of screw holes | 2 |
| Diam. of screw holes | 4.2 mm |
| Part No. | 38077.002 |
| EAN | 4251269318085 |
| Package quantity | 1 |
| Mounting options | Screw type mounting |
| Mounting location | Metal sheets |
| Shield clamp type | MSKL |
| For no. of shield clamps | 10 |
| For max. no. of cables | 10 |
| Length | 199 mm |
| Strain relief function | Yes |
| Width | 54.1 mm |
| Height | 14.2 mm |
| Mounting height | 14.2 mm |
| Hole size | M4 |
| No. of screw holes | 2 |
| Diam. of screw holes | 4.2 mm |
| Part No. | 38078.002 |
| EAN | 4251269318092 |
| Package quantity | 1 |
| Mounting options | Screw type mounting |
| Mounting location | Metal sheets |
| Shield clamp type | MSKL |
| For no. of shield clamps | 11 |
| For max. no. of cables | 11 |
| Length | 220 mm |
| Strain relief function | Yes |
| Width | 54.1 mm |
| Height | 14.2 mm |
| Mounting height | 14.2 mm |
| Hole size | M4 |
| No. of screw holes | 2 |
| Diam. of screw holes | 4.2 mm |
| Part No. | 38079.002 |
| EAN | 4251269318108 |
| Package quantity | 1 |
| Mounting options | Screw type mounting |
| Mounting location | Metal sheets |
| Shield clamp type | MSKL |
| For no. of shield clamps | 12 |
| For max. no. of cables | 12 |
| Length | 241 mm |
| Strain relief function | Yes |
| Width | 54.1 mm |
| Height | 14.2 mm |
| Mounting height | 14.2 mm |
| Hole size | M4 |
| No. of screw holes | 2 |
| Diam. of screw holes | 4.2 mm |
| Part No. | 38005 |
| EAN | 4251269305757 |
| Package quantity | 1 |
| Mounting options | Screw type mounting |
| Mounting location | Metal sheets |
| Shield clamp type | SKL |
| For no. of shield clamps | 3 |
| For max. no. of cables | 3 |
| Length | 41.2 mm |
| Strain relief function | Yes |
| Width | 44.4 mm |
| Height | 10.5 mm |
| Mounting height | 10.5 mm |
| Hole size | M4 |
| No. of screw holes | 2 |
| Diam. of screw holes | 4.2 mm |
| Part No. | 38010 |
| EAN | 4251269305764 |
| Package quantity | 1 |
| Mounting options | Screw type mounting |
| Mounting location | Metal sheets |
| Shield clamp type | SKL |
| For no. of shield clamps | 4 |
| For max. no. of cables | 4 |
| Length | 56.8 mm |
| Strain relief function | Yes |
| Width | 44.4 mm |
| Height | 10.5 mm |
| Mounting height | 10.5 mm |
| Hole size | M4 |
| No. of screw holes | 2 |
| Diam. of screw holes | 4.2 mm |
| Part No. | 38015 |
| EAN | 4251269305771 |
| Package quantity | 1 |
| Mounting options | Screw type mounting |
| Mounting location | Metal sheets |
| Shield clamp type | SKL |
| For no. of shield clamps | 5 |
| For max. no. of cables | 5 |
| Length | 72.4 mm |
| Strain relief function | Yes |
| Width | 44.4 mm |
| Height | 10.5 mm |
| Mounting height | 10.5 mm |
| Hole size | M4 |
| No. of screw holes | 2 |
| Diam. of screw holes | 4.2 mm |
| Part No. | 38020 |
| EAN | 4251269305788 |
| Package quantity | 1 |
| Mounting options | Screw type mounting |
| Mounting location | Metal sheets |
| Shield clamp type | SKL |
| For no. of shield clamps | 6 |
| For max. no. of cables | 6 |
| Length | 88 mm |
| Strain relief function | Yes |
| Width | 44.4 mm |
| Height | 10.5 mm |
| Mounting height | 10.5 mm |
| Hole size | M4 |
| No. of screw holes | 2 |
| Diam. of screw holes | 4.2 mm |
| Part No. | 38025 |
| EAN | 4251269305795 |
| Package quantity | 1 |
| Mounting options | Screw type mounting |
| Mounting location | Metal sheets |
| Shield clamp type | SKL |
| For no. of shield clamps | 7 |
| For max. no. of cables | 7 |
| Length | 103.6 mm |
| Strain relief function | Yes |
| Width | 44.4 mm |
| Height | 10.5 mm |
| Mounting height | 10.5 mm |
| Hole size | M4 |
| No. of screw holes | 2 |
| Diam. of screw holes | 4.2 mm |
| Part No. | 38030 |
| EAN | 4251269305801 |
| Package quantity | 1 |
| Mounting options | Screw type mounting |
| Mounting location | Metal sheets |
| Shield clamp type | SKL |
| For no. of shield clamps | 8 |
| For max. no. of cables | 8 |
| Length | 119.2 mm |
| Strain relief function | Yes |
| Width | 44.4 mm |
| Height | 10.5 mm |
| Mounting height | 10.5 mm |
| Hole size | M4 |
| No. of screw holes | 2 |
| Diam. of screw holes | 4.2 mm |
| Part No. | 38035 |
| EAN | 4251269305818 |
| Package quantity | 1 |
| Mounting options | Screw type mounting |
| Mounting location | Metal sheets |
| Shield clamp type | SKL |
| For no. of shield clamps | 9 |
| For max. no. of cables | 9 |
| Length | 134.8 mm |
| Strain relief function | Yes |
| Width | 44.4 mm |
| Height | 10.5 mm |
| Mounting height | 10.5 mm |
| Hole size | M4 |
| No. of screw holes | 2 |
| Diam. of screw holes | 4.2 mm |
| Part No. | 38040 |
| EAN | 4251269305825 |
| Package quantity | 1 |
| Mounting options | Screw type mounting |
| Mounting location | Metal sheets |
| Shield clamp type | SKL |
| For no. of shield clamps | 10 |
| For max. no. of cables | 10 |
| Length | 150.4 mm |
| Strain relief function | Yes |
| Width | 44.4 mm |
| Height | 10.5 mm |
| Mounting height | 10.5 mm |
| Hole size | M4 |
| No. of screw holes | 2 |
| Diam. of screw holes | 4.2 mm |
| Part No. | 38045 |
| EAN | 4251269305832 |
| Package quantity | 1 |
| Mounting options | Screw type mounting |
| Mounting location | Metal sheets |
| Shield clamp type | SKL |
| For no. of shield clamps | 11 |
| For max. no. of cables | 11 |
| Length | 166 mm |
| Strain relief function | Yes |
| Width | 44.4 mm |
| Height | 10.5 mm |
| Mounting height | 10.5 mm |
| Hole size | M4 |
| No. of screw holes | 2 |
| Diam. of screw holes | 4.2 mm |
| Part No. | 38050 |
| EAN | 4251269305849 |
| Package quantity | 1 |
| Mounting options | Screw type mounting |
| Mounting location | Metal sheets |
| Shield clamp type | SKL |
| For no. of shield clamps | 12 |
| For max. no. of cables | 12 |
| Length | 181.6 mm |
| Strain relief function | Yes |
| Width | 44.4 mm |
| Height | 10.5 mm |
| Mounting height | 10.5 mm |
| Hole size | M4 |
| No. of screw holes | 2 |
| Diam. of screw holes | 4.2 mm |
Today’s industrial process technology is far more sensitive to electromagnetic disturbances creating the need for proper electromagnetic compatibility.
But what does that mean?
This video explains clearly why EMC is so important.
Always find the right size and the right cable grommets for your cable entry!
EMC cable clamps without mounting feet for an individual assembly via rivet.
Strain relief plate for mounting via snap feet on 35 mm top hat DIN rails.
Suitable for cut-outs of heavy industrial connectors. Mounting via screws or expanding rivets.
Adapter grommet based on KT cable grommets for snap-in mounting of Keystone jacks.
Modular gland plate system for mounting cable entry components in enclosure bases, roofs and divider panels. Suitable for enclosure base plate KDR-BMP.
Wrenches SW 85 and SW 100 for M75 and M85 hexagonal plastic locknuts. Mounting tool for KEL-DPF.
Detectable cable ties and holders for cable ties particularly suitable for pharmaceutical applications and for the food industry.
