BPM 24
| Part No. | 42027 |
| EAN | 4251269307553 |
| Package quantity | 10 |
| Length | 145 mm |
| Width | 56 mm |
| Height | 2 mm |
| Max. cut-out length | 112 mm |
| Max. cut-out width | 36 mm |
| Cut-out size | 112 × 36 mm |
| No. of screw holes | 4 |
| Diam. of screw holes | 5.5 mm |
-
Products
»
Enclosure and control panel accessories
»

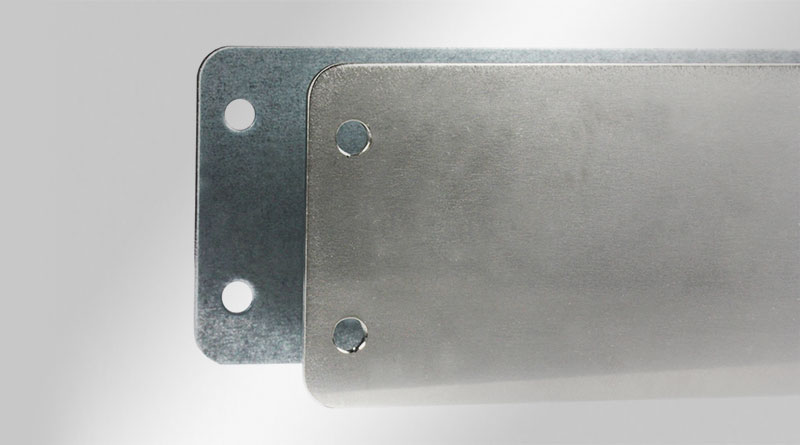

BPM metal / stainless steel blank plates
BPM metal / stainless steel blank plates
for screw assembly / IP66
Blank plates to close cut-outs for standard multi-pin industrial connectors and numerous icotek cable entry components.
Blank plates are supplied with a gasket.
Specifications
| IP rating (EN 60529) | IP54, IP55, IP64, IP65, IP66 |
| Material |
Mild steel, galvanically zinc plated
Material: Stainless steel (V2A) |
| Flame class | UL94-V0, self-extinguishing |
| Properties | anti-corrosive (V2A versions) |
| Mounting options | Screw type mounting |
Product types & sizes
BPM 24 V2A
| Part No. | 41995 |
| EAN | 4251269307355 |
| Package quantity | 10 |
| Length | 145 mm |
| Width | 56 mm |
| Height | 2 mm |
| Max. cut-out length | 112 mm |
| Max. cut-out width | 36 mm |
| Cut-out size | 112 × 36 mm |
| No. of screw holes | 4 |
| Diam. of screw holes | 5.5 mm |
BPM 24-E
| Part No. | 42029 |
| EAN | 4251269307577 |
| Package quantity | 1 |
| Length | 143 mm |
| Width | 83 mm |
| Height | 2 mm |
| Max. cut-out length | 112 mm |
| Max. cut-out width | 62 mm |
| No. of screw holes | 4 |
| Diam. of screw holes | 5.5 mm |
BPM 24-MT
| Part No. | 42028 |
| EAN | 4251269307560 |
| Package quantity | 1 |
| Length | 147 mm |
| Width | 102 mm |
| Height | 2 mm |
| Max. cut-out length | 112 mm |
| Max. cut-out width | 82 mm |
| No. of screw holes | 6 |
| Diam. of screw holes | 5.5 mm |
BPM 16
| Part No. | 42025 |
| EAN | 4251269307539 |
| Package quantity | 10 |
| Length | 118 mm |
| Width | 56 mm |
| Height | 2 mm |
| Max. cut-out length | 86 mm |
| Max. cut-out width | 36 mm |
| Cut-out size | 86 × 36 mm |
| No. of screw holes | 4 |
| Diam. of screw holes | 5.5 mm |
BPM 16 V2A
| Part No. | 41994 |
| EAN | 4251269307348 |
| Package quantity | 10 |
| Length | 118 mm |
| Width | 56 mm |
| Height | 2 mm |
| Max. cut-out length | 86 mm |
| Max. cut-out width | 36 mm |
| Cut-out size | 86 × 36 mm |
| No. of screw holes | 4 |
| Diam. of screw holes | 5.5 mm |
BPM 16-E
| Part No. | 42023 |
| EAN | 4251269307508 |
| Package quantity | 1 |
| Length | 120 mm |
| Width | 87 mm |
| Height | 2 mm |
| Max. cut-out length | 66 mm |
| Max. cut-out width | 86 mm |
| No. of screw holes | 4 |
| Diam. of screw holes | 5.5 mm |
BPM 16-MT
| Part No. | 42026 |
| EAN | 4251269307546 |
| Package quantity | 1 |
| Length | 120 mm |
| Width | 102 mm |
| Height | 2 mm |
| Max. cut-out length | 82 mm |
| Max. cut-out width | 86 mm |
| No. of screw holes | 6 |
| Diam. of screw holes | 5.5 mm |
BPM 16-2MT
| Part No. | 42031 |
| EAN | 4251269307591 |
| Package quantity | 1 |
| Length | 120 mm |
| Width | 146 mm |
| Height | 2 mm |
| Max. cut-out length | 86 mm |
| Max. cut-out width | 126 mm |
| No. of screw holes | 8 |
| Diam. of screw holes | 5.5 mm |
BPM 10
| Part No. | 42014 |
| EAN | 4251269307447 |
| Package quantity | 10 |
| Length | 99 mm |
| Width | 58 mm |
| Height | 2 mm |
| Max. cut-out length | 65 mm |
| Max. cut-out width | 36 mm |
| Cut-out size | 65 × 36 mm |
| No. of screw holes | 4 |
| Diam. of screw holes | 5.5 mm |
BPM 10 V2A
| Part No. | 41992 |
| EAN | 4251269307331 |
| Package quantity | 10 |
| Length | 99 mm |
| Width | 58 mm |
| Height | 2 mm |
| Max. cut-out length | 65 mm |
| Max. cut-out width | 36 mm |
| Cut-out size | 65 × 36 mm |
| No. of screw holes | 4 |
| Diam. of screw holes | 5.5 mm |
BPM 6
| Part No. | 42011 |
| EAN | 4251269307416 |
| Package quantity | 10 |
| Length | 90 mm |
| Width | 52 mm |
| Height | 2 mm |
| Max. cut-out length | 36 mm |
| Max. cut-out width | 36 mm |
| Cut-out size | 52 × 36 mm |
| No. of screw holes | 4 |
| Diam. of screw holes | 5 mm |
BPM 6 V2A
| Part No. | 41991 |
| EAN | 4251269307324 |
| Package quantity | 10 |
| Length | 90 mm |
| Width | 52 mm |
| Height | 2 mm |
| Max. cut-out length | 36 mm |
| Max. cut-out width | 36 mm |
| Cut-out size | 52 × 36 mm |
| No. of screw holes | 4 |
| Diam. of screw holes | 5 mm |
BPM-B
| Part No. | 42013 |
| EAN | 4251269307430 |
| Package quantity | 10 |
| Length | 75 mm |
| Width | 58 mm |
| Height | 2 mm |
| Max. cut-out length | 46 mm |
| Max. cut-out width | 46 mm |
| Cut-out size | 46 × 46 mm |
| No. of screw holes | 4 |
| Diam. of screw holes | 5.5 mm |
BPM-B V2A
| Part No. | 41996 |
| EAN | 4251269325380 |
| Package quantity | 10 |
| Length | 75 mm |
| Width | 58 mm |
| Height | 2 mm |
| Max. cut-out length | 46 mm |
| Max. cut-out width | 46 mm |
| Cut-out size | 46 × 46 mm |
| No. of screw holes | 4 |
| Diam. of screw holes | 5.5 mm |
BPM-FG-B
| Part No. | 42012 |
| EAN | 4251269307423 |
| Package quantity | 10 |
| Length | 80 mm |
| Width | 58 mm |
| Height | 2 mm |
| Max. cut-out length | 36 mm |
| Max. cut-out width | 46 mm |
| No. of screw holes | 4 |
| Diam. of screw holes | 5.5 mm |
BPM-E5
| Part No. | 42051 |
| EAN | 4251269318290 |
| Package quantity | 10 |
| Length | 147 mm |
| Width | 39.5 mm |
| Height | 2 mm |
| Max. cut-out length | 112 mm |
| Max. cut-out width | 24 mm |
| Cut-out size | 112 × 24 mm |
| No. of screw holes | 2 |
| Diam. of screw holes | 5.5 mm |
BPM-E4
| Part No. | 42050 |
| EAN | 4251269318283 |
| Package quantity | 10 |
| Length | 120 mm |
| Width | 39.5 mm |
| Height | 2 mm |
| Max. cut-out length | 86 mm |
| Max. cut-out width | 24 mm |
| Cut-out size | 86 × 24 mm |
| No. of screw holes | 2 |
| Diam. of screw holes | 5.5 mm |
BPM-E3
| Part No. | 42049 |
| EAN | 4251269318276 |
| Package quantity | 10 |
| Length | 98 mm |
| Width | 39.5 mm |
| Height | 2 mm |
| Max. cut-out length | 65 mm |
| Max. cut-out width | 24 mm |
| Cut-out size | 65 × 24 mm |
| No. of screw holes | 2 |
| Diam. of screw holes | 5.5 mm |
BPM-E2
| Part No. | 42048 |
| EAN | 4251269318269 |
| Package quantity | 10 |
| Length | 73 mm |
| Width | 39.5 mm |
| Height | 2 mm |
| Max. cut-out length | 43 mm |
| Max. cut-out width | 24 mm |
| Cut-out size | 43 × 24 mm |
| No. of screw holes | 2 |
| Diam. of screw holes | 5.5 mm |
BPM-JUMBO 1
| Part No. | 42030 |
| EAN | 4251269307584 |
| Package quantity | 1 |
| Length | 116 mm |
| Width | 110 mm |
| Height | 2 mm |
| Max. cut-out length | 78 mm |
| Max. cut-out width | 80.5 mm |
| No. of screw holes | 4 |
| Diam. of screw holes | 7 mm |
BPM-JUMBO 2
| Part No. | 42032 |
| EAN | 4251269307607 |
| Package quantity | 1 |
| Length | 200 mm |
| Width | 116 mm |
| Height | 2 mm |
| Max. cut-out length | 168 mm |
| Max. cut-out width | 80.5 mm |
| No. of screw holes | 4 |
| Diam. of screw holes | 7 mm |
BPM-ULTRA flex
| Part No. | 42633 |
| EAN | 4251269309076 |
| Package quantity | 1 |
| Height | 1 mm |
| Max. cut-out length | 168 mm |
| Max. cut-out width | 168 mm |
| Cut-out size, round | 168 mm |
| No. of screw holes | 8 |
| Diam. of screw holes | 5 mm |
| For max. wall thickness | 1.5 mm |
BPM JUMBO flex
| Part No. | 42033 |
| EAN | 4251269307614 |
| Package quantity | 1 |
| Length | 88 mm |
| Width | 88 mm |
| Height | 2 mm |
| Max. cut-out length | 75.5 mm |
| Max. cut-out width | 75.5 mm |
| No. of screw holes | 4 |
| Diam. of screw holes | 7 mm |
