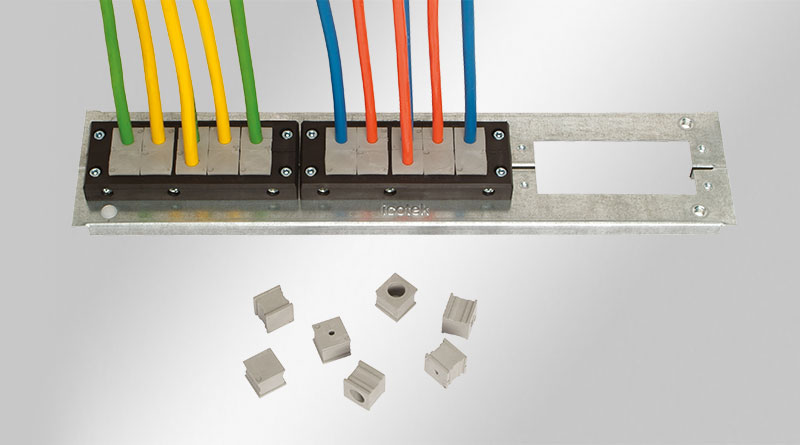

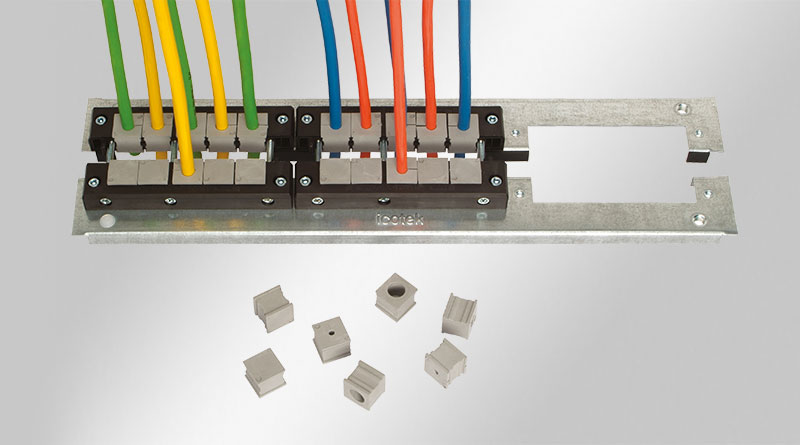

Split, 2-part gland plates KDR 2 with pre-cut holes for centrally split KEL and KEL-JUMBO cable entry systems.
Integrated screw holes provide quick and easy installation of KEL frames.
During assembly, almost the complete base of the enclosure can be used for installation of cables. Retrofitting is possible without disconnecting of cables. All can be installed around the cables.
The gland plate KDR 2 is designed for Rittal enclosures TS 8 & VX25. Other sizes can be supplied on request
| IP rating (EN 60529) | IP54 |
| Material | Steel, zinc plated |
| Part No. | 44400 |
| EAN | 4251269320262 |
| Package quantity | 1 |
| Length | 488 mm |
| Width | 100 mm |
| Height | 12 mm |
| Total length gland plate | 488 mm |
| For enclosure width | 600 mm |
| Sight size of base opening | 452 mm |
| Suitable for cable entry systems: | 3 × KEL 24 |
| Suitable for enclosure | Rittal VX25 |
| Part No. | 44401 |
| EAN | 4251269320279 |
| Package quantity | 1 |
| Length | 488 mm |
| Width | 120 mm |
| Height | 12 mm |
| Total length gland plate | 488 mm |
| For enclosure width | 600 mm |
| Sight size of base opening | 452 mm |
| Suitable for cable entry systems: | 2 × KEL 24, 1 × KEL-JUMBO 1 |
| Suitable for enclosure | Rittal VX25 |
| Part No. | 44402 |
| EAN | 4251269320286 |
| Package quantity | 1 |
| Length | 488 mm |
| Width | 120 mm |
| Height | 12 mm |
| Total length gland plate | 488 mm |
| For enclosure width | 600 mm |
| Sight size of base opening | 452 mm |
| Suitable for cable entry systems: | 1 × KEL 24, 1 × KEL-JUMBO 2 |
| Suitable for enclosure | Rittal VX25 |
| Part No. | 44403 |
| EAN | 4251269320293 |
| Package quantity | 1 |
| Length | 688 mm |
| Width | 100 mm |
| Height | 12 mm |
| Total length gland plate | 688 mm |
| For enclosure width | 800 mm |
| Sight size of base opening | 652 mm |
| Suitable for cable entry systems: | 4 × KEL 24 |
| Suitable for enclosure | Rittal VX25 |
| Part No. | 44404 |
| EAN | 4251269320309 |
| Package quantity | 1 |
| Length | 688 mm |
| Width | 120 mm |
| Height | 12 mm |
| Total length gland plate | 688 mm |
| For enclosure width | 800 mm |
| Sight size of base opening | 652 mm |
| Suitable for cable entry systems: | 3 × KEL 24, 1 × KEL-JUMBO 1 |
| Suitable for enclosure | Rittal VX25 |
| Part No. | 44405 |
| EAN | 4251269320316 |
| Package quantity | 1 |
| Length | 688 mm |
| Width | 120 mm |
| Height | 12 mm |
| Total length gland plate | 688 mm |
| For enclosure width | 800 mm |
| Sight size of base opening | 652 mm |
| Suitable for cable entry systems: | 2 × KEL 24, 1 × KEL-JUMBO 2 |
| Suitable for enclosure | Rittal VX25 |
| Part No. | 44406 |
| EAN | 4251269320323 |
| Package quantity | 1 |
| Length | 438 mm |
| Width | 100 mm |
| Height | 12 mm |
| Total length gland plate | 438 mm |
| For enclosure width | 1,000 mm |
| Sight size of base opening | 402 mm |
| Division bar | yes |
| Suitable for cable entry systems: | 2 × KEL 24 |
| Suitable for enclosure | Rittal VX25 |
| Part No. | 44407 |
| EAN | 4251269320330 |
| Package quantity | 1 |
| Length | 438 mm |
| Width | 120 mm |
| Height | 12 mm |
| Total length gland plate | 438 mm |
| For enclosure width | 1,000 mm |
| Sight size of base opening | 402 mm |
| Division bar | yes |
| Suitable for cable entry systems: | 1 × KEL 24, 1 × KEL-JUMBO 1 |
| Suitable for enclosure | Rittal VX25 |
| Part No. | 44408 |
| EAN | 4251269320347 |
| Package quantity | 1 |
| Length | 438 mm |
| Width | 120 mm |
| Height | 12 mm |
| Total length gland plate | 438 mm |
| For enclosure width | 1,000 mm |
| Sight size of base opening | 402 mm |
| Division bar | yes |
| Suitable for cable entry systems: | 1 × KEL 24, 1 × KEL-JUMBO 2 |
| Suitable for enclosure | Rittal VX25 |
| Part No. | 44409 |
| EAN | 4251269320354 |
| Package quantity | 1 |
| Length | 538 mm |
| Width | 100 mm |
| Height | 12 mm |
| Total length gland plate | 538 mm |
| For enclosure width | 1,200 mm |
| Sight size of base opening | 502 mm |
| Suitable for cable entry systems: | 3 × KEL 24 |
| Suitable for enclosure | Rittal VX25 |
| Part No. | 44410 |
| EAN | 4251269320361 |
| Package quantity | 1 |
| Length | 538 mm |
| Width | 120 mm |
| Height | 12 mm |
| Total length gland plate | 538 mm |
| For enclosure width | 1,200 mm |
| Sight size of base opening | 502 mm |
| Suitable for cable entry systems: | 2 × KEL 24, 1 × KEL-JUMBO 1 |
| Suitable for enclosure | Rittal VX25 |
| Part No. | 44411 |
| EAN | 4251269320378 |
| Package quantity | 1 |
| Length | 538 mm |
| Width | 120 mm |
| Height | 12 mm |
| Total length gland plate | 538 mm |
| For enclosure width | 1,200 mm |
| Sight size of base opening | 502 mm |
| Suitable for cable entry systems: | 1 × KEL 24, 1 × KEL-JUMBO 2 |
| Suitable for enclosure | Rittal VX25 |
| Part No. | 42924 |
| EAN | 4251269309397 |
| Package quantity | 1 |
| Length | 458 mm |
| Width | 100 mm |
| Height | 12 mm |
| Total length gland plate | 458 mm |
| For enclosure width | 600 mm |
| Sight size of base opening | 435 mm |
| Suitable for cable entry systems: | 3 × KEL 24 |
| Suitable for enclosure | Rittal TS 8 |
| Part No. | 42941 |
| EAN | 4251269309403 |
| Package quantity | 1 |
| Length | 458 mm |
| Width | 148.5 mm |
| Height | 12 mm |
| Total length gland plate | 458 mm |
| For enclosure width | 600 mm |
| Sight size of base opening | 435 mm |
| Suitable for cable entry systems: | 1 × KEL 24, 1 × KEL-JUMBO 2 |
| Suitable for enclosure | Rittal TS 8 |
| Part No. | 42953 |
| EAN | 4251269309441 |
| Package quantity | 1 |
| Length | 458 mm |
| Width | 148.5 mm |
| Height | 12 mm |
| Total length gland plate | 458 mm |
| For enclosure width | 600 mm |
| Sight size of base opening | 435 mm |
| Suitable for cable entry systems: | 2 × KEL 24, 1 × KEL-JUMBO 1 |
| Suitable for enclosure | Rittal TS 8 |
| Part No. | 42922 |
| EAN | 4251269309373 |
| Package quantity | 1 |
| Length | 658 mm |
| Width | 100 mm |
| Height | 12 mm |
| Total length gland plate | 658 mm |
| For enclosure width | 800 mm |
| Sight size of base opening | 635 mm |
| Suitable for cable entry systems: | 4 × KEL 24 |
| Suitable for enclosure | Rittal TS 8 |
| Part No. | 42945 |
| EAN | 4251269309427 |
| Package quantity | 1 |
| Length | 658 mm |
| Width | 148.5 mm |
| Height | 12 mm |
| Total length gland plate | 658 mm |
| For enclosure width | 800 mm |
| Sight size of base opening | 635 mm |
| Suitable for cable entry systems: | 2 × KEL 24, 1 × KEL-JUMBO 2 |
| Suitable for enclosure | Rittal TS 8 |
| Part No. | 42954 |
| EAN | 4251269309458 |
| Package quantity | 1 |
| Length | 658 mm |
| Width | 148.5 mm |
| Height | 12 mm |
| Total length gland plate | 658 mm |
| For enclosure width | 800 mm |
| Sight size of base opening | 635 mm |
| Suitable for cable entry systems: | 3 × KEL 24, 1 × KEL-JUMBO 1 |
| Suitable for enclosure | Rittal TS 8 |
| Part No. | 42923 |
| EAN | 4251269309380 |
| Package quantity | 1 |
| Length | 858 mm |
| Width | 100 mm |
| Height | 12 mm |
| Total length gland plate | 858 mm |
| For enclosure width | 1,000 mm |
| Sight size of base opening | 835 mm |
| Division bar | no |
| Suitable for cable entry systems: | 5 × KEL 24 |
| Suitable for enclosure | Rittal TS 8 |
| Part No. | 42952 |
| EAN | 4251269309434 |
| Package quantity | 1 |
| Length | 858 mm |
| Width | 148.5 mm |
| Height | 12 mm |
| Total length gland plate | 858 mm |
| For enclosure width | 1,000 mm |
| Sight size of base opening | 835 mm |
| Division bar | no |
| Suitable for cable entry systems: | 3 × KEL 24, 1 × KEL-JUMBO 2 |
| Suitable for enclosure | Rittal TS 8 |
| Part No. | 42955 |
| EAN | 4251269309465 |
| Package quantity | 1 |
| Length | 858 mm |
| Width | 148.5 mm |
| Height | 12 mm |
| Total length gland plate | 858 mm |
| For enclosure width | 1,000 mm |
| Sight size of base opening | 835 mm |
| Division bar | no |
| Suitable for cable entry systems: | 4 × KEL 24, 1 × KEL-JUMBO 1 |
| Suitable for enclosure | Rittal TS 8 |
| Part No. | 42957 |
| EAN | 4251269309489 |
| Package quantity | 1 |
| Length | 420 mm |
| Width | 148.5 mm |
| Height | 12 mm |
| Total length gland plate | 420 mm |
| For enclosure width | 1,000 mm |
| Sight size of base opening | 398 mm |
| Division bar | yes |
| Suitable for cable entry systems: | 1 × KEL 24, 1 × KEL-JUMBO 1 |
| Suitable for enclosure | Rittal TS 8 |
| Part No. | 42958 |
| EAN | 4251269309496 |
| Package quantity | 1 |
| Length | 420 mm |
| Width | 148.5 mm |
| Height | 12 mm |
| Total length gland plate | 420 mm |
| For enclosure width | 1,000 mm |
| Sight size of base opening | 398 mm |
| Division bar | yes |
| Suitable for cable entry systems: | 2 × KEL 24 |
| Suitable for enclosure | Rittal TS 8 |
| Part No. | 42959 |
| EAN | 4251269309502 |
| Package quantity | 1 |
| Length | 420 mm |
| Width | 148.5 mm |
| Height | 12 mm |
| Total length gland plate | 420 mm |
| For enclosure width | 1,000 mm |
| Sight size of base opening | 398 mm |
| Division bar | yes |
| Suitable for cable entry systems: | 1 × KEL 24, 1 × KEL-JUMBO 2 |
| Suitable for enclosure | Rittal TS 8 |
| Part No. | 42920 |
| EAN | 4251269309366 |
| Package quantity | 1 |
| Length | 518 mm |
| Width | 100 mm |
| Height | 12 mm |
| Total length gland plate | 518 mm |
| For enclosure width | 1,200 mm |
| Sight size of base opening | 495 mm |
| Suitable for cable entry systems: | 3 × KEL 24 |
| Suitable for enclosure | Rittal TS 8 |
| Part No. | 42943 |
| EAN | 4251269309410 |
| Package quantity | 1 |
| Length | 518 mm |
| Width | 148.5 mm |
| Height | 12 mm |
| Total length gland plate | 518 mm |
| For enclosure width | 1,200 mm |
| Sight size of base opening | 495 mm |
| Suitable for cable entry systems: | 1 × KEL 24, 1 × KEL-JUMBO 2 |
| Suitable for enclosure | Rittal TS 8 |
| Part No. | 42956 |
| EAN | 4251269309472 |
| Package quantity | 1 |
| Length | 518 mm |
| Width | 148.5 mm |
| Height | 12 mm |
| Total length gland plate | 518 mm |
| For enclosure width | 1,200 mm |
| Sight size of base opening | 495 mm |
| Suitable for cable entry systems: | 2 × KEL 24, 1 × KEL-JUMBO 1 |
| Suitable for enclosure | Rittal TS 8 |
