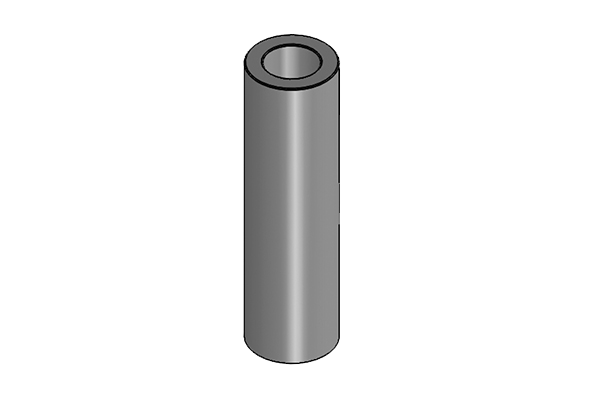

DH 30
| Part No. | 32251 |
| EAN | 4251269300929 |
| Package quantity | 10 |
| Mounting options | Screw type mounting |
| Mounting location | Zugentlastungsleisten |
| Length L1 | 30 mm |
| External diameter | 8.5 mm |
| Diam. of screw holes | 5.2 mm |
-
Products
»
Strain relief acc. to EN 62444
»
DH | Distance bushings
DH | Distance bushings
for multi-layer mounting of strain relief plates
Due to DH spacers strain relief plates can be mounted in multi-layers to achieve an increase of the cable density.
Specifications
| Material | Aluminium |
| Mounting options | Screw type mounting |
| Mounting location | Zugentlastungsleisten |
Advantages & benefits
- Increase of cable density
Product types & sizes
DH 32
| Part No. | 32252 |
| EAN | 4251269300936 |
| Package quantity | 10 |
| Mounting options | Screw type mounting |
| Mounting location | Zugentlastungsleisten |
| Length L1 | 32 mm |
| External diameter | 12 mm |
| Diam. of screw holes | 6.2 mm |
