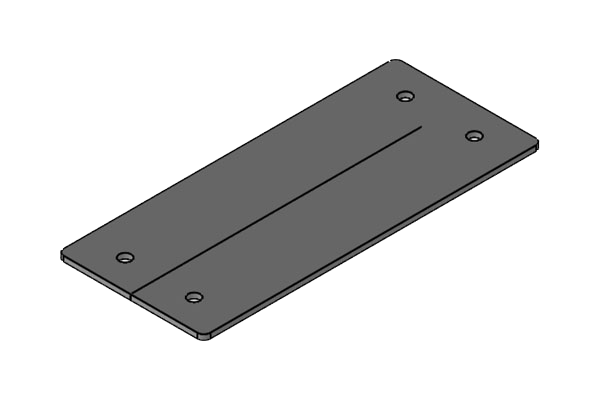

IFPS 24
| Part No. | 99300 |
| EAN | 4251269318375 |
| Package quantity | 1 |
| Length | 157 mm |
| Width | 68 mm |
| Height | 2.5 mm |
| Mounting height | 2.5 mm |
| Cut-out size | 112 × 36 mm |
| No. of screw holes | 4 |
| Diam. of screw holes | 5.5 mm |
-
Products
»
Cable entry systems for railway technology
»
IFPS fire penetration seals
IFPS fire penetration seals
acc. to EN 45545-3, single
Fire penetration seals for certified icotek BS cable entry components, approved for use in railway technology (meeting the standards EN 45545-2, EN 45545-3 and EN 1363-1).
The intumescent (foaming) IFPS fire penetration seals which are mounted at the backside of the cable entry components consist of expandable graphite and increase their volume by a multiple in case of a fire. This creates a barrier which prevents a penetration of flames and high heat from one room into another for the longest possible period.
Based on the standards EN 45545-3 and EN 1363-1 icotek cable entry systems have been tested on "E45" and "EI30" in vertical alignment using mounted IFPS fire penetration seals. All tested products have been successfully certified using only one layer of fire penetration seals.
Furthermore, conventional cables instead of fire-resistant railway cables have been used for the testing.
Also available: IFPS fire penetration seal stripe, 900 x 17 x 2.7 mm, self-adhesive
Specifications
| Material | Graphite |
| Properties | intumescent (foaming), halogen free, silicone free |
Product types & sizes
IFPS 24-MT
| Part No. | 99312 |
| EAN | 4251269323362 |
| Package quantity | 1 |
| Length | 157 mm |
| Width | 112 mm |
| Height | 2.5 mm |
| Mounting height | 2.5 mm |
| No. of screw holes | 6 |
| Diam. of screw holes | 5.5 mm |
IFPS 16
| Part No. | 99301 |
| EAN | 4251269318382 |
| Package quantity | 1 |
| Length | 140 mm |
| Width | 68 mm |
| Height | 2.5 mm |
| Mounting height | 2.5 mm |
| Cut-out size | 86 × 36 mm |
| No. of screw holes | 4 |
| Diam. of screw holes | 5.5 mm |
IFPS 16-MT
| Part No. | 99314 |
| EAN | 4251269323966 |
| Package quantity | 1 |
| Length | 130 mm |
| Width | 112 mm |
| Height | 2.5 mm |
| Mounting height | 2.5 mm |
| No. of screw holes | 6 |
| Diam. of screw holes | 5.5 mm |
IFPS 10
| Part No. | 99306 |
| EAN | 4251269322280 |
| Package quantity | 1 |
| Length | 108 mm |
| Width | 68 mm |
| Height | 2.5 mm |
| Mounting height | 2.5 mm |
| Cut-out size | 65 × 36 mm |
| No. of screw holes | 4 |
| Diam. of screw holes | 5.5 mm |
IFPS-B
| Part No. | 99305 |
| EAN | 4251269319075 |
| Package quantity | 1 |
| Length | 83 mm |
| Width | 68 mm |
| Height | 2.5 mm |
| Mounting height | 2.5 mm |
| Cut-out size | 46 × 46 mm |
| No. of screw holes | 4 |
| Diam. of screw holes | 5.5 mm |
IFPS-E5
| Part No. | 99302 |
| EAN | 4251269318399 |
| Package quantity | 1 |
| Length | 157 mm |
| Width | 49.5 mm |
| Height | 2.5 mm |
| Mounting height | 2.5 mm |
| Cut-out size | 112 × 24 mm |
| No. of screw holes | 2 |
| Diam. of screw holes | 5.5 mm |
IFPS-E4
| Part No. | 99309 |
| EAN | 4251269321702 |
| Package quantity | 1 |
| Length | 140 mm |
| Width | 49.5 mm |
| Height | 2.5 mm |
| Mounting height | 2.5 mm |
| Cut-out size | 86 × 24 mm |
| No. of screw holes | 2 |
| Diam. of screw holes | 5.5 mm |
IFPS-E3
| Part No. | 99308 |
| EAN | 4251269321696 |
| Package quantity | 1 |
| Length | 108 mm |
| Width | 49.5 mm |
| Height | 2.5 mm |
| Mounting height | 2.5 mm |
| Cut-out size | 65 × 24 mm |
| No. of screw holes | 2 |
| Diam. of screw holes | 5.5 mm |
IFPS-E2
| Part No. | 99307 |
| EAN | 4251269321689 |
| Package quantity | 1 |
| Length | 83 mm |
| Width | 49.5 mm |
| Height | 2.5 mm |
| Mounting height | 2.5 mm |
| Cut-out size | 43 × 24 mm |
| No. of screw holes | 2 |
| Diam. of screw holes | 5.5 mm |
IFPS 183
| Part No. | 99311 |
| EAN | 4251269325670 |
| Package quantity | 1 |
| Length | 232 mm |
| Width | 130 mm |
| Height | 2.5 mm |
| Mounting height | 2.5 mm |
| Cut-out size | 180 × 80 mm |
| No. of screw holes | 8 |
| Diam. of screw holes | 5.5 mm |
IFPS KX/KL
| Part No. | 99315 |
| EAN | 4251269324154 |
| Package quantity | 1 |
| Length | 231 mm |
| Width | 100 mm |
| Height | 2.5 mm |
| Mounting height | 2.5 mm |
| Cut-out size | 192 × 62 mm |
| No. of screw holes | 6 |
| Diam. of screw holes | 5.5 mm |
IFPS fire penetration seal stripe
| Part No. | 99303 |
| EAN | 4251269318405 |
| Package quantity | 1 |
| Length | 900 mm |
| Width | 17 mm |
| Height | 2.7 mm |
available
