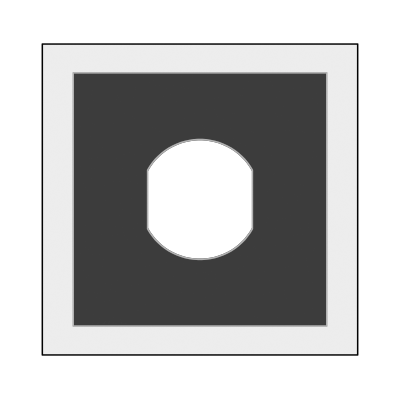

AT-D 16
| Part No. | 39984 |
| EAN | 4251269339479 |
| Package quantity | 10 |
| Length | 42 mm |
| Width | 41.5 mm |
| Height | 19 mm |
| Mounting height | 2 mm |
available
-
Products
»
IMAS-CONNECT™ adapter systems for industrial connectors
»
AT-D 16 | Adapter grommets
AT-D 16 | Adapter grommets
for M16 interfaces / IP65

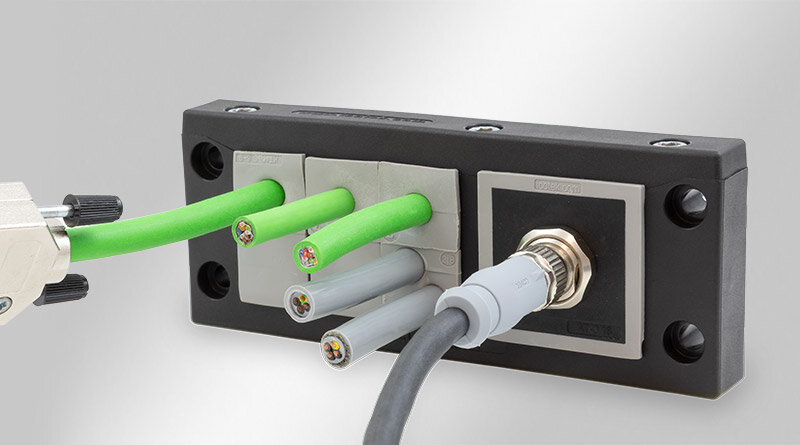

The AT-D 16 grommet is part of the IMAS-CONNECT™ modular adapter system and enables the simple integration of a standardised M16 interface into a cable entry frame – without any additional housing cut-outs.
The AT-D 16 is compatible with all icotek cable entry frames of the KT system. The integrated M16 interface allows M16 connectors and couplings to be installed directly in the cable entry frame, creating a compact and clean interface solution.
In combination with suitable M16 circular connectors, the AT-D 16 achieves an IP65 protection rating. This ensures reliable sealing, even under demanding industrial environmental conditions.
The AT-D 16 is ideal for manufacturers of equipment and machinery who want to integrate M16 connections in a modular, space-saving and service-friendly manner, for example for applications in sensor technology, actuator technology, power supply or data transmission. Thanks to its modular design, interfaces can be adapted or expanded at any time, which is a clear advantage over the entire life cycle of the machine.
Specifications
| IP rating (EN 60529) | IP65 |
| Flame class | UL94-V0, self-extinguishing |
| Operating temperature | -40 C° to 100 C° |
| Material | Elastomer Body: Polyamide |
| Properties | silicone free, halogen free |
Advantages & benefits
- Space-saving thanks to the integration of the M16 connection into the cable entry frame
- High IP65 protection rating when plugged in
- Can be combined with existing frame solutions
- Service-friendly, clean integration of M16 connections
- Suitable for rear wall mounting
- Very easy assembly
- Compatible with M16 circular connectors from various manufacturers
Product types & sizes
