Automotive engineering & eMobility




Cable management for construction machinery, agricultural equipment, commercial vehicles & charging infrastructure

Whether on-road or off-road - in automotive engineering, icotek cable entry products are used when cables have to be routed into the vehicle interior or have to be fed out of the vehicle body. icotek cable entry components are also used for (partially) integrated control and fuse boxes. Whether it is for construction machinery, agricultural machinery and equipment, fire trucks, special transport vehicles, snow groomers, buses and coaches, ... icotek offers highly efficient and economical solutions for every field of application in commercial vehicle construction. icotek products are also widely used in charging infrastructure (e.g. charge columns) for eMobility.

» Split cable entry systems and » cable glands by icotek enable a fast, safe and cost-effective way to feed cables with connectors (e.g. circular multi-pin connectors, signal connectors, sensor connectors...) or cable protection conduits through the vehicle floor, body or roof (e.g. for warning devices) without voiding the warranty of the cables. icotek split cable entry components also seal the entry points with up to IP66/IP68 and UL type 4X rated protection and provide strain relief according to EN 62444.

Cables without connectors as well as pneumatic and hydraulic hoses can be routed through » membrane based multi-cable entry plates which provide up to IP66/IP68 and UL type 4X rated protection.

For automotive applications with lower ingress protection requirements icotek offers » brush plates and brush strips for round and rectangular cut-outs.

Our cable entry components fit on rectangular or round metric cut-outs from M16 to M85. For installation icotek offers suitable » knockout tools and punches.

» KEL-ER-E2 cable entry frame IP66: Routing of a cable protection conduit from the control stick through the driver's cab into the engine compartment of a road roller.

» KEL 24 cable entry frame IP54: Routing of a cable protection conduit into the outdoor control panel of a vehicle mounted aerial platform.

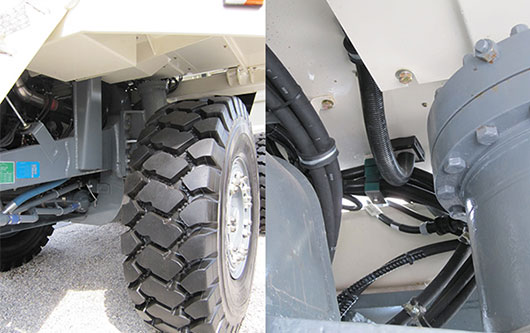

» KEL-ER-B cable entry frame IP66: Routing of a corrugated conduit through the vehicle body of a mining dump truck

Fields of application for icotek cable feedthroughs in automotive engineering / eMobility are e.g.

  • Central electrics
  • Fuse box
  • Switch box
  • Driver's cab (cable routing from engine compartment through vehicle body)
  • Various vehicle superstructures
  • Signal and warning devices
  • Charging infrastructure / charge columns
  • Research, development and production of battery cells


For a secure and structured cable management and strain relief of electrical lines icotek offers several » strain relief plates for various mounting methods.

For protected routing of cables at the exterior or the engine compartment icotek offers » cable protection conduit connectors in various sizes.

In general, icotek products have a high quality and outstanding efficiency. All icotek products are quick and easy to install and to be assembled with cables, during the initial installation as well as in case of maintenance or retrofitting. Furthermore, icotek product materials are halogen and silicone free.

The icotek cable entry components comply with important approvals and standards like IP and UL rated protection, UL recognized or UV resistance which makes icotek a strong and reliable partner for automotive engineers.



Do you have special requirements?



If our standard solutions do not fit your requirements, our engineers will develop individual concepts for you. Please feel free to contact us. We will submit an individual offer customised to your special requirements.
