BTK gy
Part No. | 41251 |
EAN | 4251269306686 |
PU | 10 |
Colour | grey (similar RAL 7035) |
Length | 21 mm |
Width | 21 mm |
Height | 19 mm |
Mounting height | 2 mm |
For cable type | Round cable |
Blank grommet | 1 |
Cable grommets KT small are used with the following cable entry components:

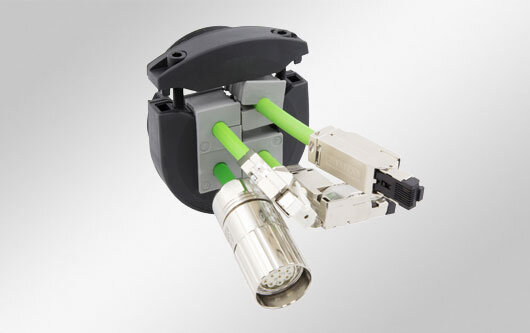

In combination with KEL-ER cable entry frames and KVT-ER cable glands the KT single-hole grommets enable a sealing of the cables with up to IP66 / IP68 and UL Type 4X.
The model range KT small is designed for cable diameters from 1 to 17 mm. Cable grommets KT large accept a wide range of cable diameters from 16 to 35 mm.
When installing the small grommets in multiple rows, the flat sides should be facing each other. This allows the flat sides to match up and provide a secure seal.
IP rating (certified acc. to EN 60529) | IP54, IP55, IP64, IP65, IP66, IP67, IP68 |
UL Type (certified acc. to UL 50E) | UL Type 12, UL Type 4X |
Material |
Elastomer
|
Flame class | UL94-V0, self-extinguishing |
Operating temperature | -40 C° to 100 C° |
Properties | silicone free, halogen free |
Part No. | 41251 |
EAN | 4251269306686 |
PU | 10 |
Colour | grey (similar RAL 7035) |
Length | 21 mm |
Width | 21 mm |
Height | 19 mm |
Mounting height | 2 mm |
For cable type | Round cable |
Blank grommet | 1 |
Part No. | 39941 |
EAN | 4251269318146 |
PU | 10 |
For max. no. of cables | 1 |
Colour | grey (similar RAL 7035) |
Length | 21 mm |
Width | 21 mm |
Height | 19 mm |
Mounting height | 2 mm |
For cable type | Round cable |
Clamping range | 1 x 1 - 2 mm |
Part No. | 39934 |
EAN | 4251269306280 |
PU | 10 |
For max. no. of cables | 1 |
Colour | grey (similar RAL 7035) |
Length | 21 mm |
Width | 21 mm |
Height | 19 mm |
Mounting height | 2 mm |
For cable type | Round cable |
Clamping range | 1 x 2 - 3 mm |
Part No. | 41203 |
EAN | 4251269306389 |
PU | 10 |
For max. no. of cables | 1 |
Colour | grey (similar RAL 7035) |
Length | 21 mm |
Width | 21 mm |
Height | 19 mm |
Mounting height | 2 mm |
For cable type | Round cable |
Clamping range | 1 x 3 - 4 mm |
Part No. | 41204 |
EAN | 4251269306396 |
PU | 10 |
For max. no. of cables | 1 |
Colour | grey (similar RAL 7035) |
Length | 21 mm |
Width | 21 mm |
Height | 19 mm |
Mounting height | 2 mm |
For cable type | Round cable |
Clamping range | 1 x 4 - 5 mm |
Part No. | 41205 |
EAN | 4251269306402 |
PU | 10 |
For max. no. of cables | 1 |
Colour | grey (similar RAL 7035) |
Length | 21 mm |
Width | 21 mm |
Height | 19 mm |
Mounting height | 2 mm |
For cable type | Round cable |
Clamping range | 1 x 5 - 6 mm |
Part No. | 41206 |
EAN | 4251269306419 |
PU | 10 |
For max. no. of cables | 1 |
Colour | grey (similar RAL 7035) |
Length | 21 mm |
Width | 21 mm |
Height | 19 mm |
Mounting height | 2 mm |
For cable type | Round cable |
Clamping range | 1 x 6 - 7 mm |
Part No. | 41207 |
EAN | 4251269306426 |
PU | 10 |
For max. no. of cables | 1 |
Colour | grey (similar RAL 7035) |
Length | 21 mm |
Width | 21 mm |
Height | 19 mm |
Mounting height | 2 mm |
For cable type | Round cable |
Clamping range | 1 x 7 - 8 mm |
Part No. | 41208 |
EAN | 4251269306433 |
PU | 10 |
For max. no. of cables | 1 |
Colour | grey (similar RAL 7035) |
Length | 21 mm |
Width | 21 mm |
Height | 19 mm |
Mounting height | 2 mm |
For cable type | Round cable |
Clamping range | 1 x 8 - 9 mm |
Part No. | 41209 |
EAN | 4251269306440 |
PU | 10 |
For max. no. of cables | 1 |
Colour | grey (similar RAL 7035) |
Length | 21 mm |
Width | 21 mm |
Height | 19 mm |
Mounting height | 2 mm |
For cable type | Round cable |
Clamping range | 1 x 9 - 10 mm |
Part No. | 41210 |
EAN | 4251269306457 |
PU | 10 |
For max. no. of cables | 1 |
Colour | grey (similar RAL 7035) |
Length | 21 mm |
Width | 21 mm |
Height | 19 mm |
Mounting height | 2 mm |
For cable type | Round cable |
Clamping range | 1 x 10 - 11 mm |
Part No. | 41211 |
EAN | 4251269306464 |
PU | 10 |
For max. no. of cables | 1 |
Colour | grey (similar RAL 7035) |
Length | 21 mm |
Width | 21 mm |
Height | 19 mm |
Mounting height | 2 mm |
For cable type | Round cable |
Clamping range | 1 x 11 - 12 mm |
Part No. | 41212 |
EAN | 4251269306471 |
PU | 10 |
For max. no. of cables | 1 |
Colour | grey (similar RAL 7035) |
Length | 21 mm |
Width | 21 mm |
Height | 19 mm |
Mounting height | 2 mm |
For cable type | Round cable |
Clamping range | 1 x 12 - 13 mm |
Part No. | 41213 |
EAN | 4251269306488 |
PU | 10 |
For max. no. of cables | 1 |
Colour | grey (similar RAL 7035) |
Length | 21 mm |
Width | 21 mm |
Height | 19 mm |
Mounting height | 2 mm |
For cable type | Round cable |
Clamping range | 1 x 13 - 14 mm |
Part No. | 41214 |
EAN | 4251269306495 |
PU | 10 |
For max. no. of cables | 1 |
Colour | grey (similar RAL 7035) |
Length | 21 mm |
Width | 21 mm |
Height | 19 mm |
Mounting height | 2 mm |
For cable type | Round cable |
Clamping range | 1 x 14 - 15 mm |
Part No. | 41215 |
EAN | 4251269306501 |
PU | 10 |
For max. no. of cables | 1 |
Colour | grey (similar RAL 7035) |
Length | 21 mm |
Width | 21 mm |
Height | 19 mm |
Mounting height | 2 mm |
For cable type | Round cable |
Clamping range | 1 x 15 - 16 mm |
Part No. | 41252 |
EAN | 4251269306693 |
PU | 10 |
For max. no. of cables | 1 |
Colour | grey (similar RAL 7035) |
Length | 41.5 mm |
Width | 42 mm |
Height | 19 mm |
Mounting height | 2 mm |
For cable type | Round cable |
Blank grommet | 1 |
Part No. | 41216 |
EAN | 4251269306518 |
PU | 10 |
For max. no. of cables | 1 |
Colour | grey (similar RAL 7035) |
Length | 41.5 mm |
Width | 42 mm |
Height | 19 mm |
Mounting height | 2 mm |
For cable type | Round cable |
Clamping range | 1 x 16 - 17 mm |
Part No. | 41217 |
EAN | 4251269306525 |
PU | 10 |
For max. no. of cables | 1 |
Colour | grey (similar RAL 7035) |
Length | 41.5 mm |
Width | 42 mm |
Height | 19 mm |
Mounting height | 2 mm |
For cable type | Round cable |
Clamping range | 1 x 17 - 18 mm |
Part No. | 41218 |
EAN | 4251269306532 |
PU | 10 |
For max. no. of cables | 1 |
Colour | grey (similar RAL 7035) |
Length | 41.5 mm |
Width | 42 mm |
Height | 19 mm |
Mounting height | 2 mm |
For cable type | Round cable |
Clamping range | 1 x 18 - 19 mm |
Part No. | 41219 |
EAN | 4251269306549 |
PU | 10 |
For max. no. of cables | 1 |
Colour | grey (similar RAL 7035) |
Length | 41.5 mm |
Width | 42 mm |
Height | 19 mm |
Mounting height | 2 mm |
For cable type | Round cable |
Clamping range | 1 x 19 - 20 mm |
Part No. | 41220 |
EAN | 4251269306556 |
PU | 10 |
For max. no. of cables | 1 |
Colour | grey (similar RAL 7035) |
Length | 41.5 mm |
Width | 42 mm |
Height | 19 mm |
Mounting height | 2 mm |
For cable type | Round cable |
Clamping range | 1 x 20 - 21 mm |
Part No. | 41221 |
EAN | 4251269306563 |
PU | 10 |
For max. no. of cables | 1 |
Colour | grey (similar RAL 7035) |
Length | 41.5 mm |
Width | 42 mm |
Height | 19 mm |
Mounting height | 2 mm |
For cable type | Round cable |
Clamping range | 1 x 21 - 22 mm |
Part No. | 41222 |
EAN | 4251269306570 |
PU | 10 |
For max. no. of cables | 1 |
Colour | grey (similar RAL 7035) |
Length | 41.5 mm |
Width | 42 mm |
Height | 19 mm |
Mounting height | 2 mm |
For cable type | Round cable |
Clamping range | 1 x 22 - 23 mm |
Part No. | 41223 |
EAN | 4251269306587 |
PU | 10 |
For max. no. of cables | 1 |
Colour | grey (similar RAL 7035) |
Length | 41.5 mm |
Width | 42 mm |
Height | 19 mm |
Mounting height | 2 mm |
For cable type | Round cable |
Clamping range | 1 x 23 - 24 mm |
Part No. | 41224 |
EAN | 4251269306594 |
PU | 10 |
For max. no. of cables | 1 |
Colour | grey (similar RAL 7035) |
Length | 41.5 mm |
Width | 42 mm |
Height | 19 mm |
Mounting height | 2 mm |
For cable type | Round cable |
Clamping range | 1 x 24 - 25 mm |
Part No. | 41225 |
EAN | 4251269306600 |
PU | 10 |
For max. no. of cables | 1 |
Colour | grey (similar RAL 7035) |
Length | 41.5 mm |
Width | 42 mm |
Height | 19 mm |
Mounting height | 2 mm |
For cable type | Round cable |
Clamping range | 1 x 25 - 26 mm |
Part No. | 41226 |
EAN | 4251269306617 |
PU | 10 |
For max. no. of cables | 1 |
Colour | grey (similar RAL 7035) |
Length | 41.5 mm |
Width | 42 mm |
Height | 19 mm |
Mounting height | 2 mm |
For cable type | Round cable |
Clamping range | 1 x 26 - 27 mm |
Part No. | 41227 |
EAN | 4251269306624 |
PU | 10 |
For max. no. of cables | 1 |
Colour | grey (similar RAL 7035) |
Length | 41.5 mm |
Width | 42 mm |
Height | 19 mm |
Mounting height | 2 mm |
For cable type | Round cable |
Clamping range | 1 x 27 - 28 mm |
Part No. | 41228 |
EAN | 4251269306631 |
PU | 10 |
For max. no. of cables | 1 |
Colour | grey (similar RAL 7035) |
Length | 41.5 mm |
Width | 42 mm |
Height | 19 mm |
Mounting height | 2 mm |
For cable type | Round cable |
Clamping range | 1 x 28 - 29 mm |
Part No. | 41229 |
EAN | 4251269306648 |
PU | 10 |
For max. no. of cables | 1 |
Colour | grey (similar RAL 7035) |
Length | 41.5 mm |
Width | 42 mm |
Height | 19 mm |
Mounting height | 2 mm |
For cable type | Round cable |
Clamping range | 1 x 29 - 30 mm |
Part No. | 41230 |
EAN | 4251269306655 |
PU | 10 |
For max. no. of cables | 1 |
Colour | grey (similar RAL 7035) |
Length | 41.5 mm |
Width | 42 mm |
Height | 19 mm |
Mounting height | 2 mm |
For cable type | Round cable |
Clamping range | 1 x 30 - 31 mm |
Part No. | 41231 |
EAN | 4251269316784 |
PU | 10 |
For max. no. of cables | 1 |
Colour | grey (similar RAL 7035) |
Length | 41.5 mm |
Width | 42 mm |
Height | 19 mm |
Mounting height | 2 mm |
For cable type | Round cable |
Clamping range | 1 x 31 - 32 mm |
Part No. | 41232 |
EAN | 4251269306662 |
PU | 10 |
For max. no. of cables | 1 |
Colour | grey (similar RAL 7035) |
Length | 41.5 mm |
Width | 42 mm |
Height | 19 mm |
Mounting height | 2 mm |
For cable type | Round cable |
Clamping range | 1 x 32 - 33 mm |
Part No. | 41233 |
EAN | 4251269316791 |
PU | 10 |
For max. no. of cables | 1 |
Colour | grey (similar RAL 7035) |
Length | 41.5 mm |
Width | 42 mm |
Height | 19 mm |
Mounting height | 2 mm |
For cable type | Round cable |
Clamping range | 1 x 33 - 34 mm |
Part No. | 41234 |
EAN | 4251269306679 |
PU | 10 |
For max. no. of cables | 1 |
Colour | grey (similar RAL 7035) |
Length | 41.5 mm |
Width | 42 mm |
Height | 19 mm |
Mounting height | 2 mm |
For cable type | Round cable |
Clamping range | 1 x 34 - 35 mm |
Always find the right size and the right cable grommets for your cable entry!
Centrally split cable entry frame. Suitable for cut-outs of heavy multi-pin connectors.Available as single, double or multi-row versions.

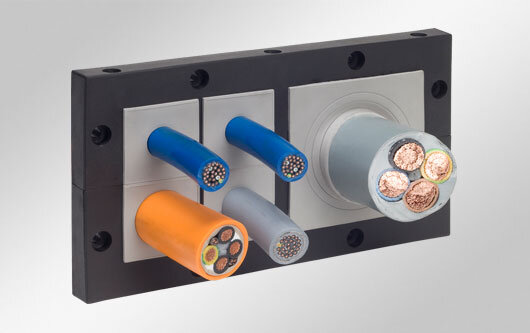

Grommet based cable entry frames for supply cables with large diameters of up to 75 mm. Available as single or double row version.
Grommet based cable entry for standard cut-outs of heavy industrial connectors. Available as single or double row version.

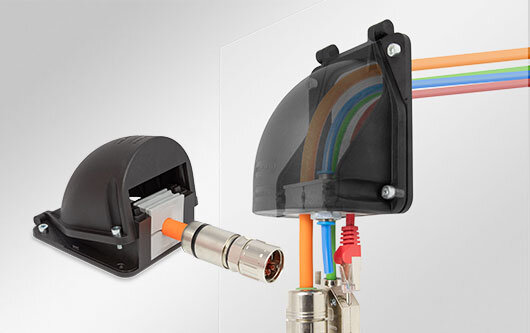

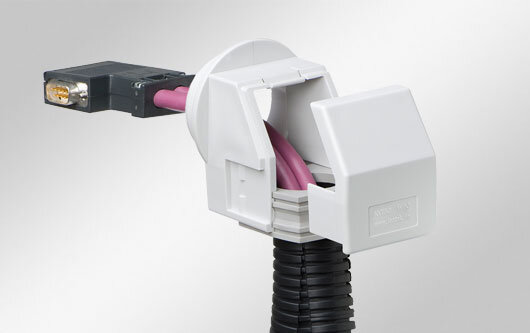

Flange enclosure for routing preassembled cables in a 90° angle to the enclosure wall. Available as single or double row version.

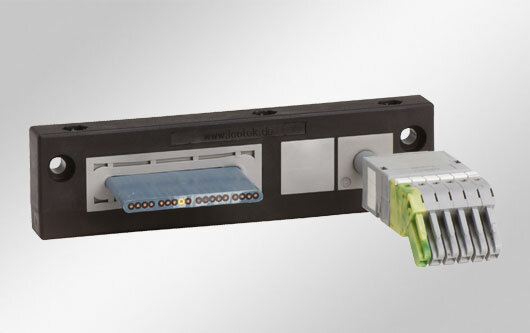

Split cable entry frame for flat cables as well as prefabricated round cables.

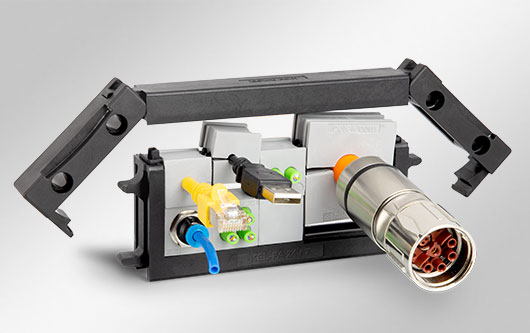

Grommet based cable entry frames suitable for cut-outs of heavy industrial connectors. Available as single or double row version.

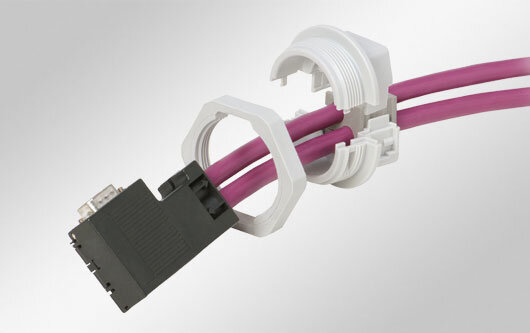

Split cable gland for preassembled cables with metric thread sizes M20 to M63.

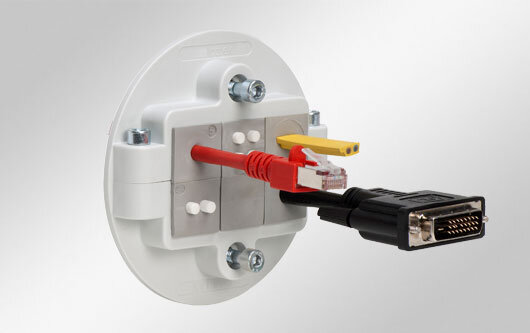

Cable gland for cables with large round connectors of up to 80 mm in diameter.
Split cable gland for preassembled cables with metric thread sizes M25 - M63.

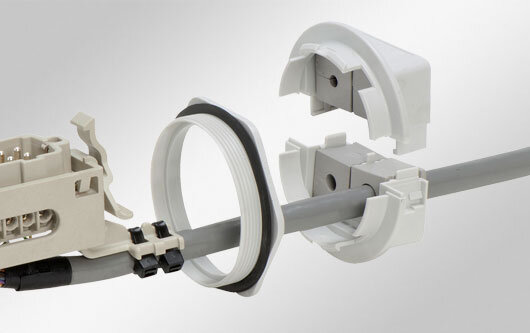

Split cable gland for tool-free snap-in mounting on metric cut-outs.

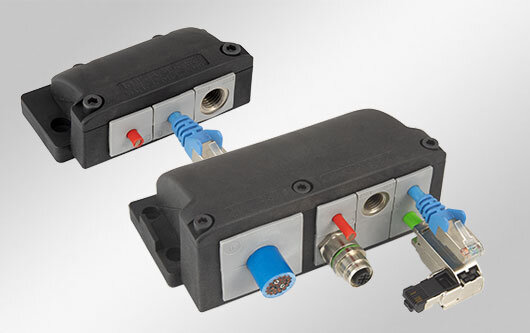

Split cable gland for routing pre-terminated cables at a 90° angle to the enclosure wall.
Assortment of cable grommets in various types and sizes. Perfect for maintenance cases.

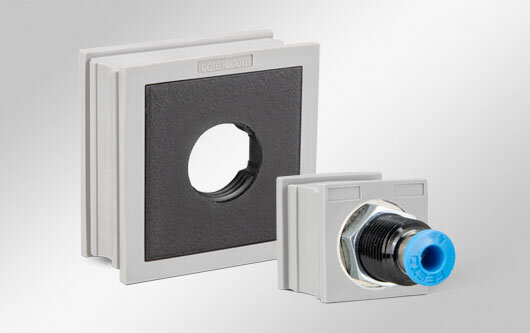

Adapter grommets with inner thread based on KT cable grommets.
Expanding rivets for mounting of KEL-BES and KEL-BES-S brush plates.
EMC cable clamps for snap-on mounting on 10 x 3 mm bus bars.
90° angled bulkhead fitting for routing corrugated cable conduits via conduit connector (FWS-A) or direct pickup (FWS-B).
