Split cable entry systems for cables with connectors

waterproof with up to IP66 seal


Split cable entry systems for cables with connectors - waterproof with up to IP66 seal

Using the patented grommet based icotek cable entry system, a large number of pre-terminated cables (up to 65 mm in diameter) and cables without connectors (up to 75 mm in diameter) can be quickly routed into enclosures, control panels or machines and be sealed with up to IP66 / UL type 4X* rated ingress protection (certified according to EN 60529 / UL50-E). In addition, the cable entry frames serve as strain reliefs on the cable (acc. to EN 62444). The split cable entry system enables quick and easy assembly which is great for retrofits and maintenance. Find out more »

Request your free product sample

icotek cable entry systems at a glance


Filter products:

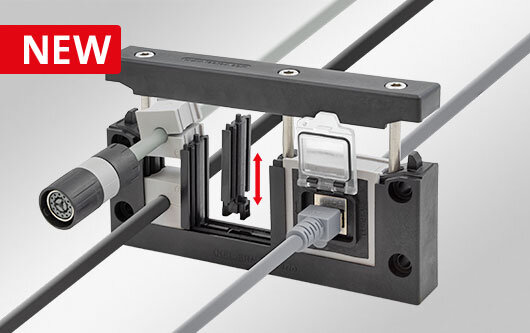

Grommet based cable entry for standard cut-outs of heavy industrial connectors. Available as single or double row version.

Split cable entry frame, IP66 / UL Type 12/4X*

KT grommet based cable entry for standard cut-outs of heavy industrial connectors. Available as single or double row version.

» KEL-ER | KEL-ER-E
Grommet based cable entry frames suitable for cut-outs of heavy industrial connectors. Available as single or double row version.

Split cable entry frame, IP54 / UL Type 12

KT grommet based cable entry frames for standard cut-outs of heavy industrial connectors. Available as single or double row version.

» KEL-U | KEL-E

90° Cable entry adapter, up to IP66

KEA is a multifunctional adapter for various cable entry systems. The adapter allows cables to be routed at a 90° angle and sealed with up to IP66.

» KEA

Split cable entry frame for tool-free assembly, IP54 / UL Type 12

KT grommet based cable entry frames for tool-free assembly. Suitable for standard cut-outs of heavy industrial connectors.

» KEL-FA
Classic centrally split cable entry frame. Suitable for cut-outs of heavy multi-pin connectors.Available as single, double or multi-row versions.

Centrally split cable entry frame, IP54 / UL Type 12

Classic KT grommet based cable entry frames for standard cut-outs of heavy industrial connectors. Also available as multi-row versions.

» KEL

Split bulkhead for 90° cable entry, IP65

KT grommet based bulkhead for 90° preassembled cable transit for cable diameters up to 35 mm and a large bending radius (r max. = 150 mm).

» KEL-FW

Split 360° cable entry system, M32-M75, IP54

With the distribution box, centrally routed cables (with and without connectors) can be distributed 360° in all desired directions.

» DB Distribution Box

Split 90° cable entry enclosure, IP65

KT grommet based flange enclosure for routing preassembled cables in a 90° angle to the enclosure wall. Available as single or double row version.

» KEL-FG-ER | KEL-FG-ER-E
Flange enclosure for routing preassembled cables in a 90° angle to the enclosure wall. Available as single or double row version.

Split 90° cable entry enclosure, IP54 / UL Type 12

KT grommet based flange enclosure for routing preassembled cables in a 90° angle to the enclosure wall. Available as single or double row version.

» KEL-FG | KEL-FG-E
QT grommet based cable entry frames for tool-free assembly. Available as single or double row version.

Split cable entry frame for tool-free assembly, IP54

QT grommet based cable entry frames for tool-free assembly. Suitable for standard cut-outs of heavy industrial connectors. Available as single or double row version.

» KEL-QUICK | KEL-QUICK-E

Split cable entry frame for flat cables, IP54

KT/FT grommet based split single-row cable entry frame for flat cables as well as prefabricated round cables.

» KEL-FL

Split cable entry frame for large diameters, IP54 / UL Type 12

KT grommet based cable entry frames for supply cables with large diameters of up to 75 mm. Available as single or double row version.

» KEL 183

Split cable entry frame for supply lines, IP54 / UL Type 12

Split cable entry frame for supply lines with diameters up to 65 mm.

» KEL-JUMBO

Cover plugs

The openings at the fastening points of the cable entry plates & frames can be closed with the cover plugs.

» Cover plugs

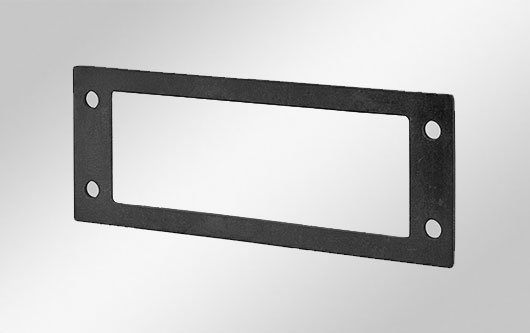

Flat gaskets

A flat gasket is provided to ensure a clean seal between the cable entry frame and the enclosure / control panel wall.

» Flat gaskets

Snap-in frames for cable entries, IP54 / UL type 12

Tool-free snap-in mounting frames for KEL, KEL-U and KEL-QUICK.

» KEL-SNAP
Split cable gland for preassembled cables with metric thread sizes M20 to M63.

Split cable glands, IP54 - IP68

Split cable glands for preterminated cables (for cut-outs M16 - M80).

Split cable entry plate for tool-free assembly, IP54

QT grommet based cable entry plate made of elastomer for cables with or without connectors. Snap-in mounting.

» KEL-QTA

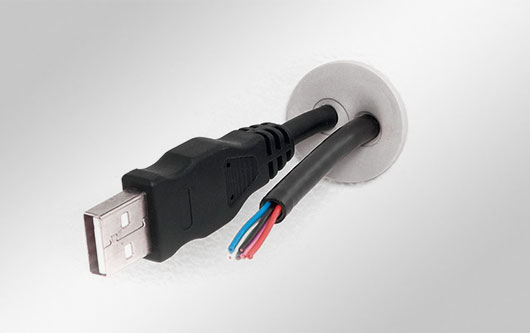

Split U-shaped cable grommet, up to IP54

Split U-shaped cable grommet for cables with and without connectors (with a diameter range of 4 - 11 mm). Tool-free assembly.

» UT

Split cable entry plate for tool-free assembly, IP54

Split M20 cable entry plate made of elastomer for cables with or without connectors. Tool-free mounting.

» KEL-QTE

Split brush plates for cable pass-through

Suitable for cut-outs of heavy industrial connectors. Mounting via screws or expanding rivets.

» KEL-BES-S

Cable grommets

Split cable grommets for prefabricated cables, multi-range grommets, special grommets for e.g. telephone cables, flat wires or supply lines.

Membrane plugs for gland plates & cable grommets

Plugs for sealing already pierced membranes of cable entry plates as well as for numerous cable grommets.

» ST-B

IMAS-CONNECT™ Adapter grommets

Adapter grommets with inner threads and for mounting of Keystone and PushPull modules.

The practical icotek product configurator

With the product configurator, you can now assemble your cable entry system with the required cable or adapter grommets.

Search and filter products with the icotek ProductFinder!

Find the perfect product for your application. Try it now!


How do you safely route cables with connectors into an enclosure?

Duration: 36 min.

We explain the basics! Using the patented grommet based icotek cable entry system, a large number of pre-terminated cables and cables without connectors can be quickly routed into enclosures, control panels or machines and be sealed with up to IP66 / IP68 and UL type 4X rated ingress protection. In addition, the cable entry frames serve as strain reliefs on the cable. The split cable entry system enables quick and easy assembly which is great for retrofits and maintenance. This webcast will put a special focus on the wide variety of grommets and their assembly. We would like to give you an overview of our small, large, single and multiple slotted grommets, but also of our variety of flexible multi-area grommets.

Watch now!


Info guide – everything you need to know about split cable entry systems

The icotek split cable entry systems enable the transit of a large number of connectorised cables or complete cable harnesses in a small area. In contrast to conventional cable glands the connector doesn’t have to be cut off the cable in advance and be re-connected afterwards. Thus, the cable manufacturer's warranty remains and you save a lot of assembly time. But also electrical, pneumatic or hydraulic lines without connectors as well as corrugated conduits and hoses can be easily routed, sealed and strain relieved using split cable entry systems.



icotek cable entry systems - completely splittable, high cable density

The icotek cable entry system is completely split. Thus, a quick and easy assembly is possible. The preterminated cable is placed into the » split grommet which is set into one of the cable entry frame’s compartments. The grommet is now securely fixed inside the frame and can’t fall out. Due to the fine gradation of the cable diameters, there is an excellent adaptation of the grommet to the inserted cable or hose. Once the lid is affixed to the base frame, it is compressed and tightly sealed. The high compression pressure ensures strain relief according to EN 62444 and certified sealing rates up to IP66 (acc. to EN 60529) and UL type 4X* (acc. to UL 50E).

Another benefit is the high cable density of the cable entry systems that enable a space-saving assembly. For example, when using multiple grommets with some specific frame sizes, up to 120 lines can be routed in an area of 15 × 15 cm.



Easy assembly of the cable entry systems

The cable entry systems are either screw mounted or simply snapped into a pre-mounted snap frame. The cable entry systems are available in many different sizes which are mostly based on standard cut-outs of industrial multi-pin heavy duty connectors. Convince yourself of the easy and quick installation of the split cable entry systems with our assembly videos:



Large variety of cable entry systems

The different model ranges of the icotek split cable entry systems offer various application possibilities:

  • For cable routing (up to 35 mm in diameter) in extreme areas the » cable entry system KEL-ER offers high protection ratings IP66 / UL Type 4X*. Available in 8 different sizes.
  • Similarly, icotek offers the » cable entry system KEL-U in the same sizes, with protection rating IP54 / UL Type 12.
  • The centrally split » cable entry system KEL is an icotek classic (protection ratings IP54 / UL Type 12) which, due to its extensions, offers the highest cable density. Cables and hoses with diameters up to 35 mm can be routed.
  • The » cable entry systems KEL-FA, » KEL-QUICK and » KEL-QTA (protection rating IP54) impress with the possibility of quick and consistently tool-free installation. Available in many different sizes.



*4X for indoor use only

Well tested & certified

Approvals and standards such as flame class UL 94-V0, IP and UL rated ingress protection, UL recognized, DNV, RINA, EN 45545-2 and ECOLAB detergent resistance enable icotek cable entry systems to be real alternatives to conventional cable glands. Certificates or declarations of conformity can be requested directly from us.
