Hand hydraulic punch drivers & knockout punches

icotek TOOLS

icotek offers a small-sized hand hydraulic punch driver without hose which allows quick and easy punching of rectangular, square or round holes. The holes fit exactly the cut-out dimensions of most icotek cable entry systems. When you have to punch several holes, this hand hydraulic punch driver is much faster than manual wrench-style punches.

Punch driver sets

Hand hydraulic punch driver for cut-outs on V2A stainless steel, sheet steel, aluminium or plastics. Suitable for round and rectangular punches. Also available with knockout die sets metric M16 - M32 or M16 - M63.

  • Set BASIC
  • Set PRO 16-32
  • Set PRO 16-63
Rectangular & square punches

Rectangular & square knockout punches for heavy multi-pin industrial connectors and many icotek cable entry components.

  • Knockout punches rectangular
Round punches

Round knockout punches for cut-outs M16 - M85 and PG 16. Suitable for cable glands and round cable entry plates.

  • Knockout punches round
  • Punch set 16-63
Wrenches M75 & M85

Wrenches SW 85 and SW 100 for M75 and M85 hexagonal plastic locknuts. Mounting tool for KEL-DPF.

  • MW 85/100

Hand hydraulic punch drivers & knockout punches
Hand hydraulic punch driver

Hand hydraulic punch driver

Due to its high hydraulic force the compact, lightweight hand hydraulic punch driver makes it easy to punch holes into stainless V2A steel, mild steel, aluminium or plastics with a max. sheet thickness of 3 mm (V2A: 2 mm). The cylinder of the punch driver rotates 360° on 3 axles. Therefore, maximum flexibility even in hard-to-reach places is provided.

We offer 3 different punch driver sets:

  • Set BASIC, contains a hand hydraulic punch driver suitable for rectangular, square and round punches from icotek or other manufacturers
  • Set PRO 16-32, contains a hand hydraulic punch driver and a knockout die set for metric holes from M16 to M32
  • Set PRO 16-63, contains a hand hydraulic punch driver and a knockout die set for metric holes from M16 to M63

Knockout punches

Knockout punches

icotek offers round knockout punches for cut-outs PG 16, M16, M20, M25, M32, M40, M50, M63, M75 and M85. This self-centering knockout punches split slugs into several pieces for easy slug removal.

For installation of pushbuttons and round switches icotek offers a 22.5 mm punch with integrated twist protection notch.

The special cutting geometry of the punches reduces the cutting pressure and therefore the required effort.

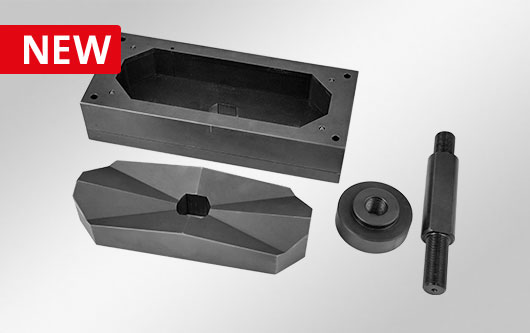

Among the round punches icotek offers also rectangular and square punches and dies, for cut-out sizes of 10-, 16-, and 24- multi-pin industrial connectors as well as for cut-outs 46 x 46 mm and 46 x 112 mm. Additionally, centre punches are integrated within the die for exact drilling of mounting holes.

User manual

User manual

Here you can download the user manual as PDF.
