KEL-SCDP Multi-Range Cable Entry Grommets

Pluggable, for Single Cables with Diameters up to 36 mm / IP65

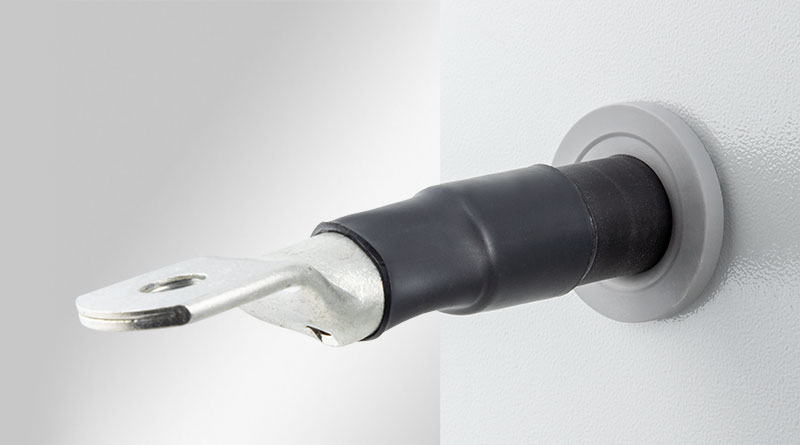

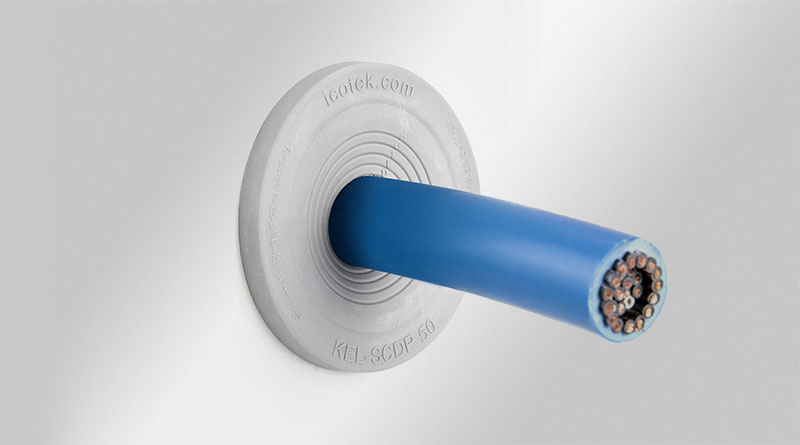

With the KEL-SCDP cable entry grommet, single cables, hoses, and conduits can be routed and sealed at a rating of IP65. Its unique advantage is the large sealing range.

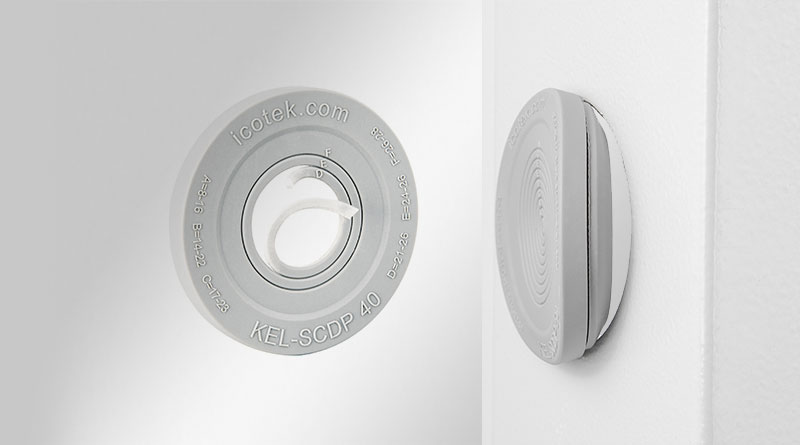

The single circular membrane can be peeled away to accommodate the specific diameter of the cable or hose. For this purpose, only a small hole between the rings needs to be pierced. Then the corresponding ring can be removed. The peeled-off area is always round, ensuring a secure seal around cable/hose.

Another advantage is the high mounting flexibility. The KEL-SCDP can simply be plugged into cut-outs with wall thicknesses from 1.5 to 4.0 mm.

The version KEL-SCDP-RW is approved for the use in the railroad technology in accordance with EN45545-2 HL3.

Specifications

IP rating (certified acc. to EN 60529) IP54, IP55, IP64, IP65
Material Elastomer
Operating temperature -40 C° to 80 C°
Properties halogen free, silicone free
Mounting options Snap-in

Advantages & Benefits

  • Perfect edge protection and sealing (IP65)
  • Circular membranes can be peeled off easily
  • Quick assembly without tools
