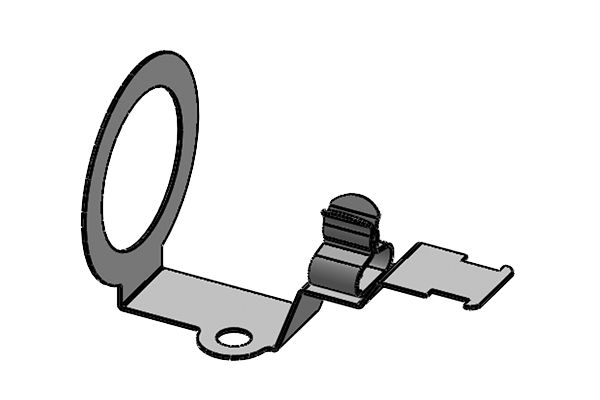

The KVT-EMC brackets in combination with the split cable glands KVT and QVT combine routing, EMC shield earthing and strain relief. The connection to the earth potential is possible via the enclosure wall or an earthing tape.
Cables pass through the split cable glands and lead directly into the EMC clamps.
Separate functions (according to regulations) carried out quickly and easily!
| Material | Mild steel, galvanically zinc plated |
| Mounting options | Fasten with locknut |
| Properties | vibration proof |
| Part No. | 37187.1 |
| EAN | 4251269329005 |
| Package quantity | 5 |
| Mounting options | Fasten with locknut |
| No. of shield clamps | 1 |
| Shield clamp type | SKL |
| For max. no. of cables | 1 |
| Min. shield diam. | 1.5 mm |
| Max. shield diam. | 3 mm |
| Length | 58.5 mm |
| Strain relief function | Yes |
| Width | 23 mm |
| Height | 26.7 mm |
| Hole size | M16 |
| Suitable for cable entry systems: | QVT 16 |
| Part No. | 37187.2 |
| EAN | 4251269329012 |
| Package quantity | 5 |
| Mounting options | Fasten with locknut |
| No. of shield clamps | 1 |
| Shield clamp type | SKL |
| For max. no. of cables | 1 |
| Min. shield diam. | 3 mm |
| Max. shield diam. | 6 mm |
| Length | 58.5 mm |
| Strain relief function | Yes |
| Width | 23 mm |
| Height | 26.7 mm |
| Hole size | M16 |
| Suitable for cable entry systems: | QVT 16 |
| Part No. | 37187.3 |
| EAN | 4251269329029 |
| Package quantity | 5 |
| Mounting options | Fasten with locknut |
| No. of shield clamps | 1 |
| Shield clamp type | SKL |
| For max. no. of cables | 1 |
| Min. shield diam. | 6 mm |
| Max. shield diam. | 8 mm |
| Length | 58.5 mm |
| Strain relief function | Yes |
| Width | 23 mm |
| Height | 26.7 mm |
| Hole size | M16 |
| Suitable for cable entry systems: | QVT 16 |
| Part No. | 37187.4 |
| EAN | 4251269329036 |
| Package quantity | 5 |
| Mounting options | Fasten with locknut |
| No. of shield clamps | 1 |
| Shield clamp type | SKL |
| For max. no. of cables | 1 |
| Min. shield diam. | 8 mm |
| Max. shield diam. | 11 mm |
| Length | 58.5 mm |
| Strain relief function | Yes |
| Width | 23 mm |
| Height | 26.7 mm |
| Hole size | M16 |
| Suitable for cable entry systems: | QVT 16 |
| Part No. | 37190.1 |
| EAN | 4251269335983 |
| Package quantity | 5 |
| Mounting options | Fasten with locknut |
| No. of shield clamps | 1 |
| Shield clamp type | SKL |
| For max. no. of cables | 1 |
| Min. shield diam. | 1.5 mm |
| Max. shield diam. | 3 mm |
| Length | 58.9 mm |
| Strain relief function | Yes |
| Width | 27 mm |
| Height | 31 mm |
| Hole size | M20 |
| Suitable for cable entry systems: | KVT 20, QVT 20 |
| Part No. | 37190.2 |
| EAN | 4251269335990 |
| Package quantity | 5 |
| Mounting options | Fasten with locknut |
| No. of shield clamps | 1 |
| Shield clamp type | SKL |
| For max. no. of cables | 1 |
| Min. shield diam. | 3 mm |
| Max. shield diam. | 6 mm |
| Length | 58.9 mm |
| Strain relief function | Yes |
| Width | 27 mm |
| Height | 31 mm |
| Hole size | M20 |
| Suitable for cable entry systems: | KVT 20, QVT 20 |
| Part No. | 37190.3 |
| EAN | 4251269336003 |
| Package quantity | 5 |
| Mounting options | Fasten with locknut |
| No. of shield clamps | 1 |
| Shield clamp type | SKL |
| For max. no. of cables | 1 |
| Min. shield diam. | 6 mm |
| Max. shield diam. | 8 mm |
| Length | 58.9 mm |
| Strain relief function | Yes |
| Width | 27 mm |
| Height | 31 mm |
| Hole size | M20 |
| Suitable for cable entry systems: | KVT 20, QVT 20 |
| Part No. | 37190.4 |
| EAN | 4251269336010 |
| Package quantity | 5 |
| Mounting options | Fasten with locknut |
| No. of shield clamps | 1 |
| Shield clamp type | SKL |
| For max. no. of cables | 1 |
| Min. shield diam. | 8 mm |
| Max. shield diam. | 11 mm |
| Length | 58.9 mm |
| Strain relief function | Yes |
| Width | 27 mm |
| Height | 31 mm |
| Hole size | M20 |
| Suitable for cable entry systems: | KVT 20, QVT 20 |
| Part No. | 37180.1 |
| EAN | 4251269305283 |
| Package quantity | 5 |
| Mounting options | Fasten with locknut |
| No. of shield clamps | 1 |
| Shield clamp type | SKL |
| For max. no. of cables | 1 |
| Min. shield diam. | 1.5 mm |
| Max. shield diam. | 3 mm |
| Length | 60 mm |
| Strain relief function | Yes |
| Width | 36 mm |
| Height | 39 mm |
| Hole size | M25 |
| Suitable for cable entry systems: | KVT-ER 25, KVT 25, QVT 25, KEL-DPF 25, KEL-SCDP-TR 25 |
| Part No. | 37180.2 |
| EAN | 4251269305290 |
| Package quantity | 5 |
| Mounting options | Fasten with locknut |
| No. of shield clamps | 1 |
| Shield clamp type | SKL |
| For max. no. of cables | 1 |
| Min. shield diam. | 3 mm |
| Max. shield diam. | 6 mm |
| Length | 60 mm |
| Strain relief function | Yes |
| Width | 36 mm |
| Height | 39 mm |
| Hole size | M25 |
| Suitable for cable entry systems: | KVT-ER 25, KVT 25, QVT 25, KEL-DPF 25, KEL-SCDP-TR 25 |
| Part No. | 37180.3 |
| EAN | 4251269305306 |
| Package quantity | 5 |
| Mounting options | Fasten with locknut |
| No. of shield clamps | 1 |
| Shield clamp type | SKL |
| For max. no. of cables | 1 |
| Min. shield diam. | 6 mm |
| Max. shield diam. | 8 mm |
| Length | 60 mm |
| Strain relief function | Yes |
| Width | 36 mm |
| Height | 39 mm |
| Hole size | M25 |
| Suitable for cable entry systems: | KVT-ER 25, KVT 25, QVT 25, KEL-DPF 25, KEL-SCDP-TR 25 |
| Part No. | 37180.4 |
| EAN | 4251269305313 |
| Package quantity | 5 |
| Mounting options | Fasten with locknut |
| No. of shield clamps | 1 |
| Shield clamp type | SKL |
| For max. no. of cables | 1 |
| Min. shield diam. | 8 mm |
| Max. shield diam. | 11 mm |
| Length | 60 mm |
| Strain relief function | Yes |
| Width | 36 mm |
| Height | 39 mm |
| Hole size | M25 |
| Suitable for cable entry systems: | KVT-ER 25, KVT 25, QVT 25, KEL-DPF 25, KEL-SCDP-TR 25 |
| Part No. | 37181.1 |
| EAN | 4251269305320 |
| Package quantity | 5 |
| Mounting options | Fasten with locknut |
| No. of shield clamps | 1 |
| Shield clamp type | SKL |
| For max. no. of cables | 1 |
| Min. shield diam. | 1.5 mm |
| Max. shield diam. | 3 mm |
| Length | 60 mm |
| Strain relief function | Yes |
| Width | 43 mm |
| Height | 48 mm |
| Hole size | M32 |
| Suitable for cable entry systems: | KVT-ER 32, KVT 32, KVT 32-W90, QVT 32, KEL-BES-S 32 |
| Part No. | 37181.2 |
| EAN | 4251269305337 |
| Package quantity | 5 |
| Mounting options | Fasten with locknut |
| No. of shield clamps | 1 |
| Shield clamp type | SKL |
| For max. no. of cables | 1 |
| Min. shield diam. | 3 mm |
| Max. shield diam. | 6 mm |
| Length | 60 mm |
| Strain relief function | Yes |
| Width | 43 mm |
| Height | 48 mm |
| Hole size | M32 |
| Suitable for cable entry systems: | KVT-ER 32, KVT 32, KVT 32-W90, QVT 32, KEL-DPF 32, KEL-BES-S 32 |
| Part No. | 37181.3 |
| EAN | 4251269305344 |
| Package quantity | 5 |
| Mounting options | Fasten with locknut |
| No. of shield clamps | 1 |
| Shield clamp type | SKL |
| For max. no. of cables | 1 |
| Min. shield diam. | 6 mm |
| Max. shield diam. | 8 mm |
| Length | 60 mm |
| Strain relief function | Yes |
| Width | 43 mm |
| Height | 48 mm |
| Hole size | M32 |
| Suitable for cable entry systems: | KVT-ER 32, KVT 32, KVT 32-W90, QVT 32, KEL-DPF 32, KEL-BES-S 32 |
| Part No. | 37181.4 |
| EAN | 4251269305351 |
| Package quantity | 5 |
| Mounting options | Fasten with locknut |
| No. of shield clamps | 1 |
| Shield clamp type | SKL |
| For max. no. of cables | 1 |
| Min. shield diam. | 8 mm |
| Max. shield diam. | 11 mm |
| Length | 60 mm |
| Strain relief function | Yes |
| Width | 43 mm |
| Height | 48 mm |
| Hole size | M32 |
| Suitable for cable entry systems: | KVT-ER 32, KVT 32, KVT 32-W90, QVT 32, KEL-DPF 32, KEL-BES-S 32 |
